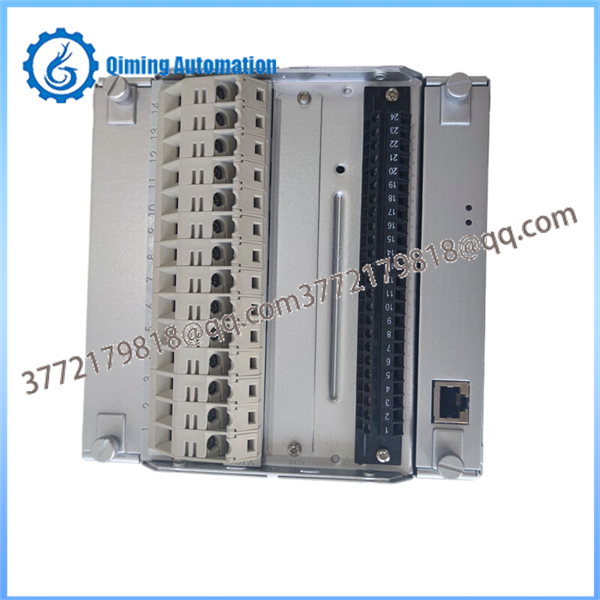

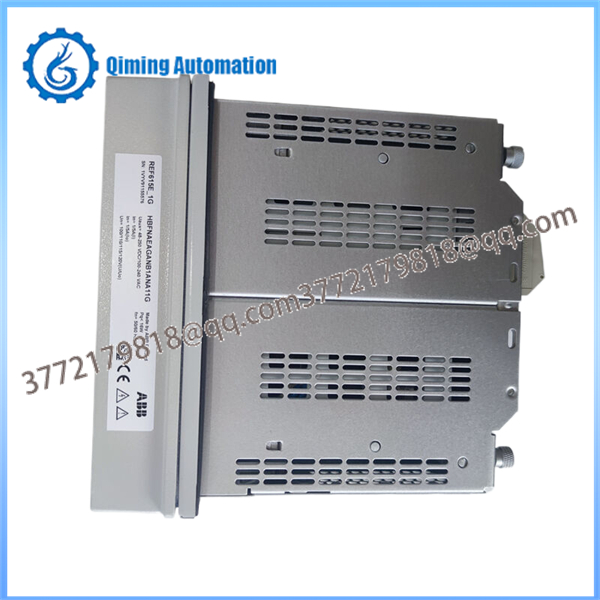

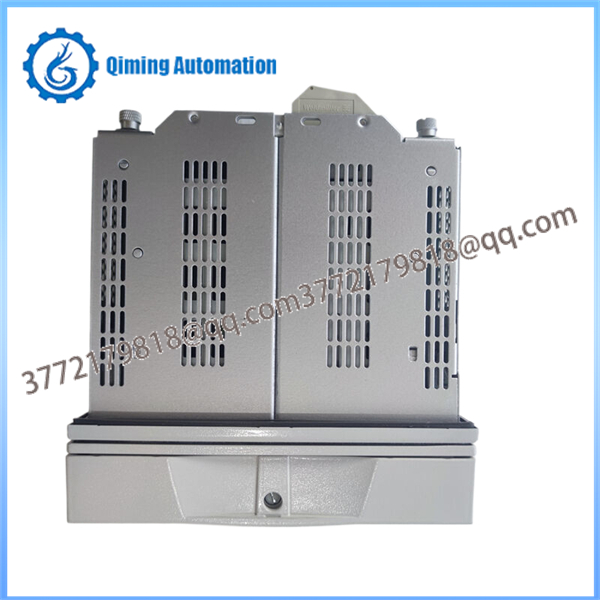

The ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G is a compact and reliable feeder protection relay designed for medium-voltage distribution systems. This advanced IED ensures safe and efficient operation of electrical feeders by integrating protection, control, monitoring, and communication functions into a single unit.

In modern substations, the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G plays a critical role in enhancing grid stability and minimizing downtime. It supports multiple protection schemes such as overcurrent, earth fault, and voltage protection, making it ideal for industrial and utility applications.

The ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G is engineered with flexibility in mind, allowing seamless integration into automation systems. With its user-friendly interface and robust communication protocols, this model ensures efficient operation and easy configuration.

Model ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G

Application Feeder Protection and Control

Rated Voltage Up to 36 kV

Frequency 50/60 Hz

Protection Functions Overcurrent, Earth Fault, Voltage Protection

Communication Protocols IEC 61850, Modbus, DNP3

Mounting Type Panel-mounted

Operating Temperature -25°C to +55°C

Power Supply AC/DC universal input

Display LCD interface

Power Connection

Connect the auxiliary power supply to the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G according to specifications.

System Configuration

Use the local HMI or engineering software to configure protection settings.

Parameter Setting

Input current, voltage, and protection thresholds based on system requirements.

Communication Setup

Configure network protocols such as IEC 61850 for integration.

Functional Testing

Perform relay testing to ensure proper operation of all protection functions.

Commissioning

Activate the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G and monitor initial performance.

Ensure proper grounding before installing the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G.

Avoid installation in high-humidity or high-vibration environments.

Verify all wiring connections carefully to prevent malfunction.

Maintain adequate ventilation around the device.

Follow manufacturer guidelines strictly during installation.

Regular Inspection: Check wiring, terminals, and indicators periodically.

Firmware Updates: Keep the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G updated with the latest firmware.

Functional Testing: Perform periodic protection relay tests.

Cleaning: Remove dust from the surface and ventilation areas.

Event Log Review: Analyze fault records for system improvements.

The ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G is a highly efficient and versatile feeder protection relay that ensures reliable operation of power distribution systems. With advanced protection features, flexible configuration, and strong communication capabilities, the ABB REF615E_1G H-B-F-N-AE-AG-A-N-B-1-A-N-A-1-1G is an ideal choice for modern substations and industrial applications.
