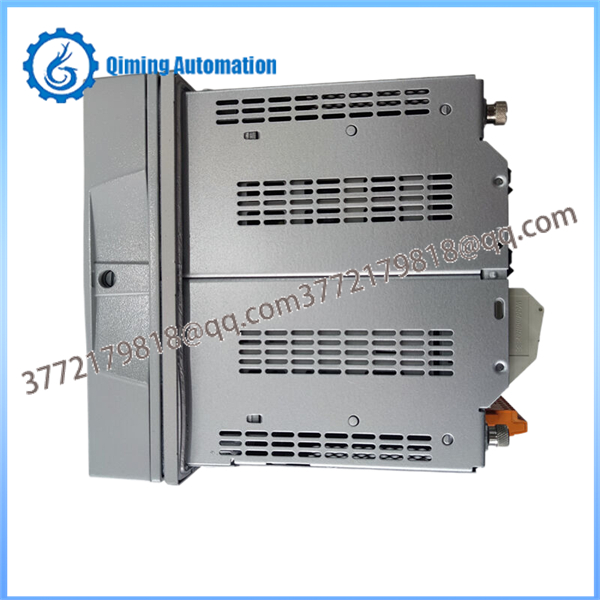

The ABB REF615 HCFKAEADABCZDAA11E is a compact feeder protection and control relay from ABB's Relion® 615 series, optimized for utility and industrial distribution networks with comprehensive overcurrent, earth-fault, and arc protection functions.

Model ABB REF615 HCFKAEADABCZDAA11E

Type Feeder protection and control IED

Current Inputs 5 × (1/5 A programmable)

Voltage Inputs 3 × phase (100-120 V)

Binary Inputs 16 configurable

Aux. Voltage 24-265 V AC/DC

Dimensions 165.5 × 161.5 × 153 mm (flush mount)

Temperature Range -40°C to +70°C

Communication IEC 61850, Modbus, DNP3

Frequency 50/60 Hz

Verify panel cut-out: 165.5 × 161.5 mm, depth ≥153 mm (180 mm with fiber optics).

Loosen four M5 screws on the ABB REF615 HCFKAEADABCZDAA11E case; insert into cut-out.

Tighten M5 screws (0.7-1 Nm torque).

Lift handle fully, push plug-in unit into case, then lower handle to latch.

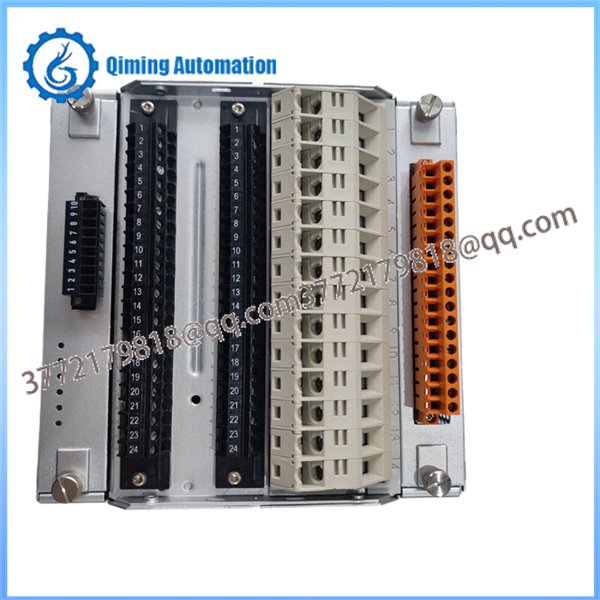

Connect CT/VT, binary I/O, and comms wiring per terminal diagram; ground properly.

De-energize system before inserting/removing the ABB REF615 HCFKAEADABCZDAA11E plug-in unit.

Ensure IP54 gasket for semi-flush mounts; avoid excessive vibration.

Match CT ratios to settings to prevent false trips.

Use only ABB-approved tools for torque and handling.

Monthly: Inspect LEDs, connections on ABB REF615 HCFKAEADABCZDAA11E.

Quarterly: Clean with dry air; run self-diagnostics via HMI/PCM600.

Annually: Firmware check and secondary injection testing.

Every 5 years: Full calibration per IEC standards.
