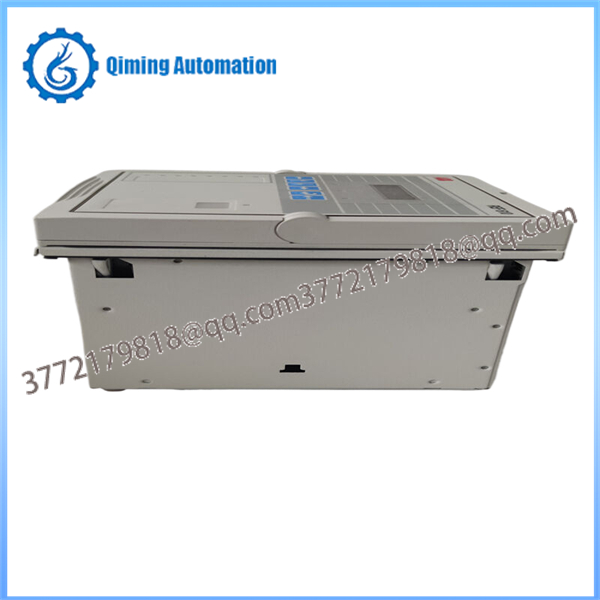

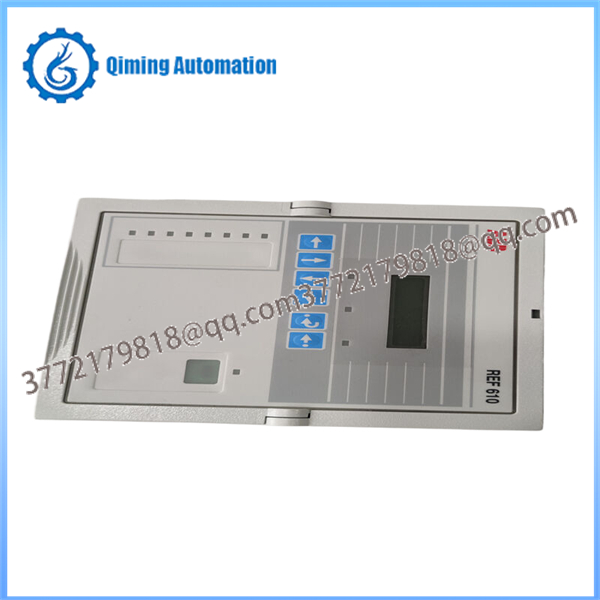

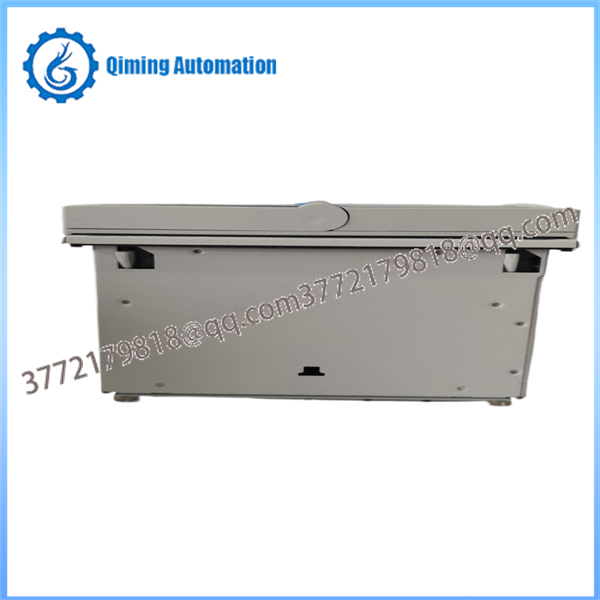

The ABB REF610C11HCNN01 is a compact feeder protection relay from ABB's Relion® 610 series, designed for safeguarding incoming and outgoing feeders in utility and industrial distribution systems. It provides comprehensive protection, measurement, and supervision functions for resistance-earthed and solidly earthed power networks, including optional arc fault detection.

Model ABB REF610C11HCNN01

Type Feeder protection IED

Current Inputs 4 × AC (1 A / 5 A CTs configurable)

Voltage Inputs 3 × 100–690 V AC configurable

Binary Inputs 24–250 V DC / 48–240 V AC

Dimensions 149.5 mm (W) × 159.5 mm (H) frame

Operating Temperature -40°C to +70°C

Weight ~0.55–4.3 kg (varies by config)

Communication RS-485 (2/4-wire), Ethernet

Rated Frequency 50/60 Hz user-selectable

Mount the ABB REF610C11HCNN01 plug-in unit into the case on a DIN rail or panel.

Connect CT/VT wiring to designated terminals, ensuring polarity.

Wire binary I/O and communication ports per the schematic.

Ground the relay properly and apply power (24–250 V DC).

Configure settings via front HMI or PCM600 software, then test functions.

Avoid exposure of the ABB REF610C11HCNN01 to excessive vibration or moisture during handling. Ensure firmware compatibility before insertion/withdrawal of plug-in units while powered. Verify CT ratios match network to prevent misoperation.

Inspect LEDs and connections monthly for faults.

Clean dust with dry air; update firmware via ABB tools annually.

Run self-tests and log diagnostics for the ABB REF610C11HCNN01.

Calibrate currents/voltages every 5 years per standards.
