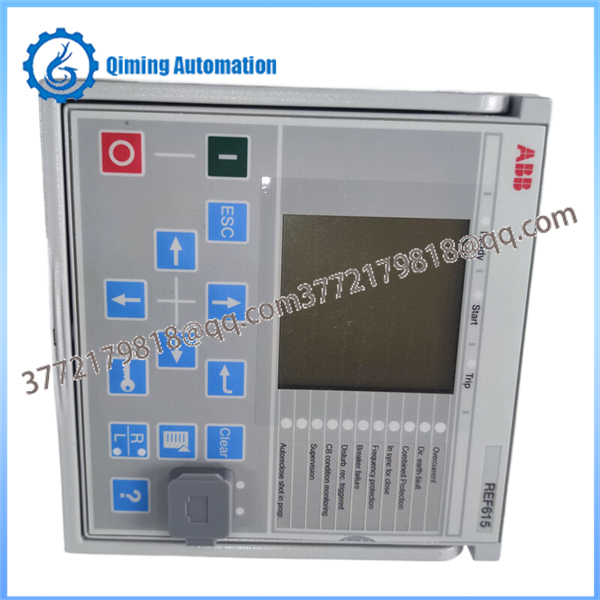

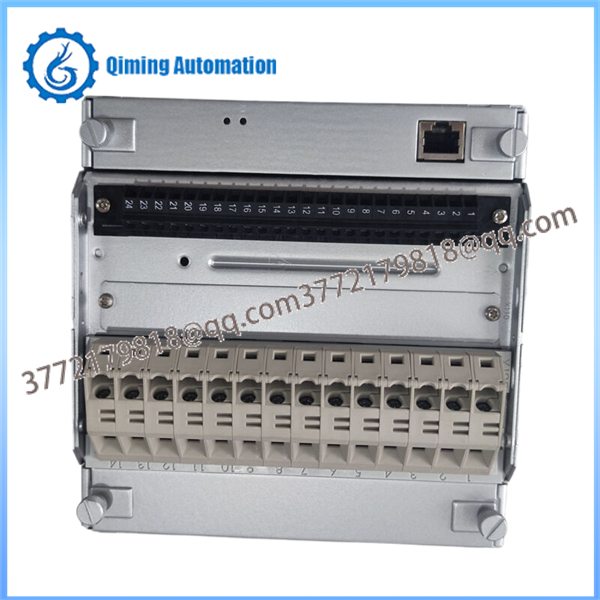

The ABB REF615 HBFFAEAGNBC6BNA11G is a dedicated feeder protection and control relay (Intelligent Electronic Device, IED) from ABB's Relion ®  615 series, designed for reliable protection, control, measurement, and supervision of overhead lines and cable feeders in utility and industrial medium-voltage distribution systems. The ABB REF615 HBFFAEAGNBC6BNA11G supports radial, looped, and meshed networks, with or without distributed generation, and excels in detecting short-circuits, overcurrents, and earth faults (including high-resistance and transient types). The ABB REF615 HBFFAEAGNBC6BNA11G features a compact, withdrawable plug-in unit design for easy installation, testing, and maintenance, along with IEC 61850 compliance for seamless substation automation integration. The ABB REF615 HBFFAEAGNBC6BNA11G offers pre-configured standard setups (tailorable via PCM600 tool),  extensive protection functions, and robust communication options. The ABB REF615 HBFFAEAGNBC6BNA11G is widely applied in distribution substations for fast, selective fault clearing and enhanced system reliability. Overall, the ABB REF615 HBFFAEAGNBC6BNA11G provides a versatile, high-performance solution for modern feeder protection needs.

Model / Type Code,REF615 HBFFAEAGNBC6BNA11G (Relion® 615 series)

Device Type,Feeder Protection and Control IED

Standard / Protocol,IEC (primarily; supports IEC 61850 Edition 1/2)

Main Application,Overhead lines and cable feeders (radial/loops/meshed networks)

Protection Functions (typical for similar configs),"Non-directional overcurrent (3 stages), directional/non-directional earth-fault (multiple stages), transient/intermittent earth-fault, negative-sequence overcurrent, phase discontinuity, thermal overload, breaker failure, etc."

Analog Inputs (typical),4 current (I_n 1/5 A or 0.2/1 A) + voltage/residual (configurable)

Binary I/O (typical),"Multiple BI/BO (e.g., 3–17 BI, 4–12 BO depending on variant; includes power outputs with TCS)"

Communication,"IEC 61850 (GOOSE), Modbus, DNP3, IEC 60870-5-103; Ethernet (RJ45/LC fiber), serial RS-485"

Power Supply,24–250 V DC / 100–240 V AC (redundant options available)

Operating Temperature,-25 °C to +55 °C (standard; extended ranges possible)

Case / Mounting,"Withdrawable plug-in unit; 1/2, 3/4, or 1/1 of 19"" rack (4U height)"

HMI,"Local graphical HMI (large/small), LEDs, keypad; Web HMI support"

Additional Features,"Arc protection (optional), auto-reclose (optional), disturbance recorder, self-supervision, programmable LEDs"

Degree of Protection,"IP54 (front), IP20 (rear)"

Country of Origin,Sweden / Finland (typical ABB/Hitachi Energy)

Life Cycle Status,Active (ongoing support and spares)

Mount the ABB REF615 HBFFAEAGNBC6BNA11G in a 19" rack/panel or use the optional test switch/wired setup; ensure proper grounding and ventilation.

Connect auxiliary power (verify voltage range and redundancy if configured); observe power LEDs/HMI for normal startup on the ABB REF615 HBFFAEAGNBC6BNA11G.

Wire CT/VT inputs (phase/residual currents, voltages) and binary I/O (trip signals, alarms, controls) per the configuration diagram and polarity checks.

Establish communication (Ethernet for IEC 61850, serial if needed) to SCADA/substation network.

Use PCM600 tool to configure: load standard configuration, set CT/VT ratios, protection parameters (e.g., overcurrent/earth-fault curves), communication mappings, and logic for the ABB REF615 HBFFAEAGNBC6BNA11G.

Commission: inject test currents/voltages, verify protection pickup/trip times, test communication (GOOSE/SV if applicable), and perform end-to-end line differential or fault simulation.

Monitor via local HMI or Web HMI: check measured values, events, faults, and alarms during live operation with the ABB REF615 HBFFAEAGNBC6BNA11G.

Only qualified substation protection personnel should install or commission the ABB REF615 HBFFAEAGNBC6BNA11G, following ABB/Hitachi Energy safety guidelines and IEC standards.

Isolate all power/CT circuits, lock out/tag out, short CT secondaries, discharge energy, and confirm zero voltage before wiring or handling the ABB REF615 HBFFAEAGNBC6BNA11G.

Use shielded/twisted-pair cables for analog inputs, single-point grounding for shields, and fiber for high-speed links to reduce EMI/noise on the ABB REF615 HBFFAEAGNBC6BNA11G.

Verify CT/VT polarity, ratios, and burden; avoid open CT circuits during energization to prevent hazardous voltages.

Ensure environmental compliance (temperature, humidity, vibration) and do not exceed rated inputs or modify hardware without approval for the ABB REF615 HBFFAEAGNBC6BNA11G.

For directional earth-fault or multi-feeder apps, confirm correct zero-sequence polarization and settings.

Inspect local HMI LEDs, display, and status indicators on the ABB REF615 HBFFAEAGNBC6BNA11G each shift for alarms, healthy status, or communication issues.

Monitor measured values (currents, voltages, earth-fault signals), differential/restraint quantities, and event logs via HMI or remote tool for anomalies.

Check cabinet/enclosure, cabling, and terminals for tightness, corrosion, dust, or damage impacting the ABB REF615 HBFFAEAGNBC6BNA11G.

Verify time synchronization (if used) and communication links (IEC 61850 GOOSE status, Modbus/DNP3 polling) remain stable.

Clean ventilation and HMI screen (power off if required) to avoid overheating or visibility issues on the ABB REF615 HBFFAEAGNBC6BNA11G.

Review disturbance/fault records and self-supervision logs periodically; backup IED configuration/settings routinely.

During scheduled outages, perform injection tests on key protections (overcurrent, earth-fault) and contact Hitachi Energy/ABB support for firmware updates or diagnostics on the ABB REF615 HBFFAEAGNBC6BNA11G.
