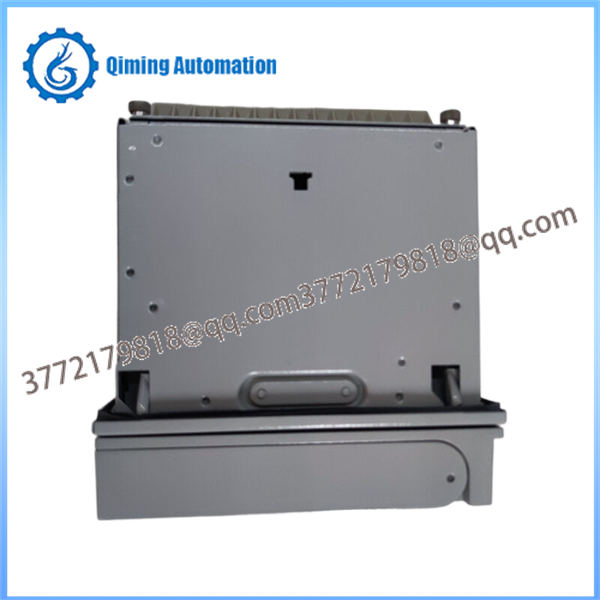

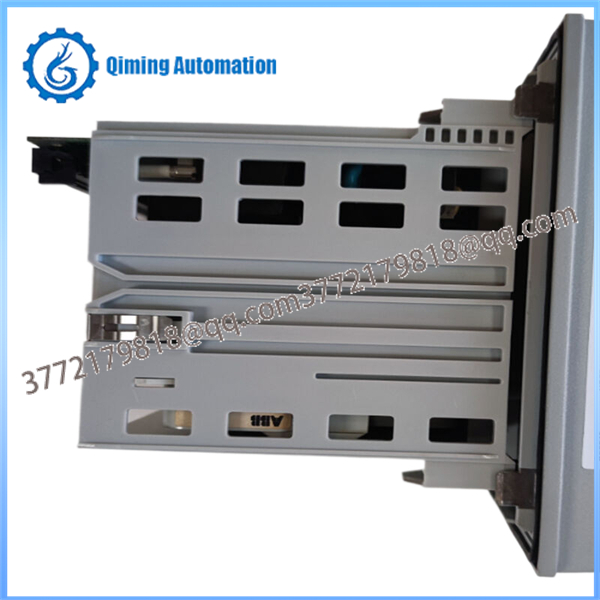

The ABB REF615 HBFFAEAGNBA1ANB1XD is a high-performance feeder protection and control relay from ABB’s Relion 615 series, designed for medium-voltage distribution systems. The ABB REF615 HBFFAEAGNBA1ANB1XD integrates protection, control, monitoring, and communication into a single intelligent electronic device (IED), making it suitable for substations, industrial plants, and renewable energy systems.

The ABB REF615 HBFFAEAGNBA1ANB1XD supports advanced digital substation functions, including IEC 61850 communication and real-time data exchange, enabling seamless integration with SCADA and automation systems.

In a medium-voltage distribution substation, the ABB REF615 HBFFAEAGNBA1ANB1XD is installed in feeder panels:

Monitors current and voltage via CT-VT inputs

Detects faults such as short circuits and earth faults

Sends trip signals to circuit breakers within milliseconds

Records disturbance data for fault analysis

For example, in an industrial plant, the ABB REF615 HBFFAEAGNBA1ANB1XD can isolate faults quickly and reduce downtime, ensuring continuous production and system safety.

Model ABB REF615 HBFFAEAGNBA1ANB1XD

Product Type Feeder Protection - Control Relay

Series Relion615

Voltage Level 12–40.5 kV systems

Current Inputs 1 A - 5 A CT inputs

Auxiliary Power 80–265 V AC/DC (typical)

Communication IEC 61850, Modbus TCP, DNP3, PROFIBUS

Ethernet 10/100Base-TX (GOOSE support)

Operating Temperature −40°C to +70°C

Mounting Panel- switchgear installation

Data Logging Event and disturbance recording

The ABB REF615 HBFFAEAGNBA1ANB1XD provides comprehensive protection features:

Overcurrent protection (50-51)

Directional overcurrent (67)

Earth-fault protection (50N-51N-67N)

Breaker failure protection (50BF)

Thermal overload protection (49)

Over/undervoltage protection (27-59)

Frequency protection (81)

Auto-reclosing and synchronization check

Optional arc flash protection

IEC 61850 Integration: Supports GOOSE messaging for high-speed communication

Flexible Configuration: Programmable logic using ABB PCM600 software

Event & Fault Recording: Built-in disturbance recorder (COMTRADE format)

Smart Grid Ready: Supports digital substations and remote diagnostics

Rugged Design: Operates reliably in harsh industrial environments

The ABB REF615 HBFFAEAGNBA1ANB1XD is designed to improve fault detection speed and reduce maintenance time.

Power Supply Setup

Provide auxiliary voltage to the ABB REF615 HBFFAEAGNBA1ANB1XD.

Wiring

Connect CT, VT, and binary I/O signals.

Communication Configuration

Configure IEC 61850 or other protocols for system integration.

Parameter Setting

Use ABB PCM600 to set protection logic and parameters.

Commissioning

Perform functional testing to verify correct relay operation.

Disconnect power before installing the ABB REF615 HBFFAEAGNBA1ANB1XD

Ensure correct CT-VT polarity

Use shielded cables for communication

Install in a ventilated switchgear panel

Verify protection settings before energizing

Inspection: Check wiring and connections

Event Log Review: Analyze disturbance records

Communication Check: Ensure stable SCADA connection

Functional Testing: Periodically test protection functions

Backup: Save configuration settings regularly

The ABB REF615 HBFFAEAGNBA1ANB1XD is a reliable and versatile feeder protection relay for modern power distribution systems. With advanced protection algorithms, flexible communication, and strong environmental performance, the ABB REF615 HBFFAEAGNBA1ANB1XD ensures safe, efficient, and intelligent operation of electrical networks.
