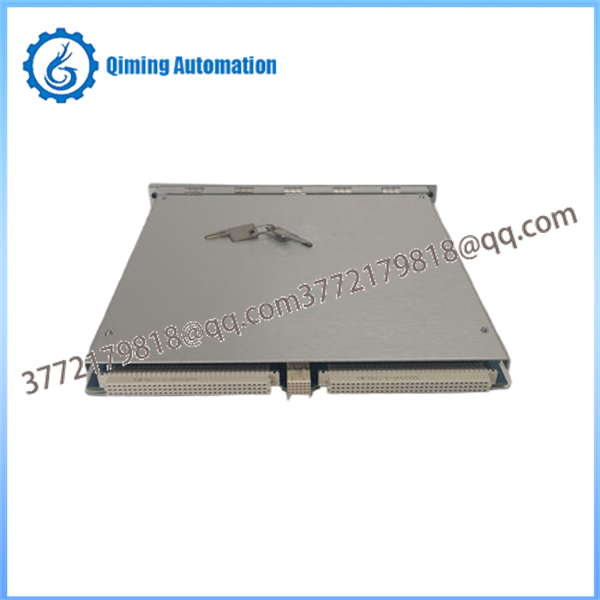

The Bently Nevada 3500/22M 288055-01 Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software, including System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software.

It combines the functions of a rack interface and communication processor, allowing the system to transfer monitoring data from the rack to external software for analysis, diagnostics, and system management.

This module is commonly used in machinery protection applications for turbines, compressors, pumps, and other rotating equipment that require reliable vibration and condition monitoring.

Manufacturer Bently Nevada

Product Number 288055-01

Model 3500/22M

Product Type Standard Transient Data Interface Module

System Bently Nevada 3500 Monitoring System

Power Consumption 10.5 Watts

Front Panel Communication RS232 serial communication, 115.2 kbaud max

Ethernet I/O 10Base-T / 100Base-TX, autosensing

Fiber I/O 100Base-FX Fiber-Optic Ethernet

Weight 0.91 kg / 2.0 lbs

Dimensions 241.3 mm x 24.4 mm x 241.8 mm

Application Machinery protection and condition monitoring

Q1: What is the Bently Nevada 3500/22M 288055-01 used for?

It is used as a transient data interface module in the 3500 system, connecting the rack to monitoring and configuration software for data transfer and analysis.

Q2: Is 288055-01 the same as 3500/22M?

288055-01 is the part number associated with the 3500/22M standard transient data interface module.

Q3: What software is it compatible with?

Public datasheets and product pages identify compatibility with System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software.

Q4: What are the main communications options?

Listed communications include RS232 on the front panel, 10Base-T/100Base-TX Ethernet, and 100Base-FX fiber-optic Ethernet.

A power module is a type of power device that can convert the input voltage of a power source into the voltage required by the device to meet its operational requirements. The working principle of the power module is to convert the input voltage into the output voltage through a transformer, then filter it through a filter, and finally stabilize the output voltage through a voltage regulator circuit to meet the requirements of the output voltage.

The power module can be divided into DC power module, AC power module, transformer power module, variable frequency power module, etc. based on parameters such as output voltage, output current, and output power.

Characteristics of power module:

1. The design is simple. Only one power module, paired with a small number of discrete components, is needed to obtain power.

2. Shorten the development cycle. Modular power supplies generally come with multiple input and output options. Users can also repeat or cross stack to form a modular combination power supply, achieving multiple inputs and outputs, greatly reducing prototype development time.

3. Flexible changes. If the product design needs to be changed, simply convert or parallel another suitable power module.

4. Low technical requirements. Modular power supplies are generally equipped with standardized front-end, highly integrated power modules, and other components, making power supply design simpler.

5. The module power supply housing has a three in one structure consisting of a heat sink, a heat sink, and a housing, which realizes the conduction cooling method of the module power supply and makes the temperature value of the power supply approach the minimum value. At the same time, it also endows the module power supply with standardized packaging.

6. High quality and reliable. Modular power supplies are generally produced using full automation and equipped with high-tech production technology, resulting in stable and reliable quality.

7. Widely used in communication fields such as switching equipment, access equipment, mobile communication, microwave communication, optical transmission, routers, as well as automotive electronics, aerospace, etc.

The losses of high-power module switching power supplies mainly include high-frequency switching losses, high-frequency transformer losses, rectification losses, and line conduction losses. In applications with low voltage and high current output, rectification loss and line conduction loss account for a large proportion. The lower the output voltage and the larger the output current, the greater the proportion of rectification loss and line conduction loss in the total loss of the module switching power supply.
