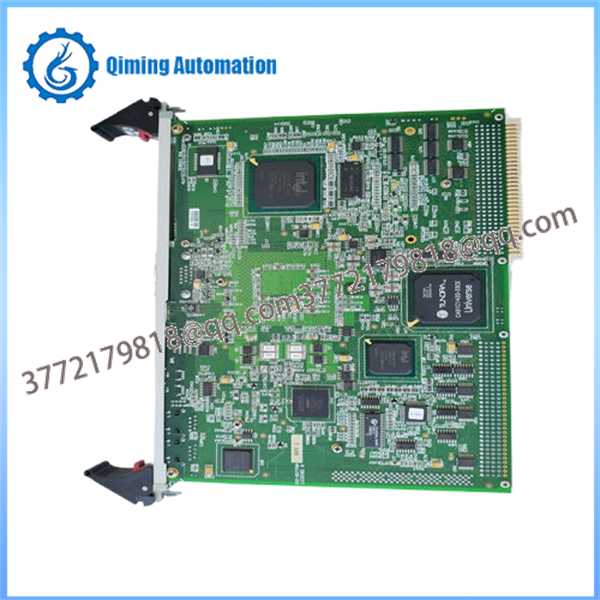

The GE VMIVME-7750 is an Intel Pentium III processor-based VME single-board computer designed for industrial control and embedded applications. The GE VMIVME-7750 integrates CPU, memory, graphics, Ethernet, serial ports, and expansion in a single 6U VME slot to serve as the core processing module in a VME system. With a system bus up to 133 MHz and support for PC133 SDRAM, the GE VMIVME-7750 delivers sufficient performance for real-time monitoring, motion control, and data acquisition tasks. The GE VMIVME-7750 supports multiple operating systems, including Windows and various real-time OS options, making it suitable for long-life industrial platforms.

Model GE VMIVME-7750 VME SBC

Processor Up to 1.26 GHz Intel Pentium III with 512 KB advanced transfer cache

System bus 133 MHz system bus (Intel 815E chipset)

Memory Up to 512 MB PC133 SDRAM using one 144-pin SODIMM

Graphics Internal AGP SVGA controller with 4 MB display cache, resolutions up to 1600×1200×256 colors

Storage CompactFlash support (up to about 512 MB–1 GB, bootable depending on configuration)

Ethernet Dual Ethernet controllers, 10BaseT/100BaseTX

Serial ports Two 16550-compatible serial ports, up to 115 kbit/s

Expansion One PMC expansion site, 32-bit PCI, 33 MHz

Form factor 6U VME single-slot board

Power (typical) +5 V about 6 A (typ.), +12 V and −12 V small currents (for serial, etc.)

Operating temp. 0 to 50 °C standard, some CPU options with extended range

Install the GE VMIVME-7750 in the designated VME slot, then apply system power according to the chassis manual.

Confirm that the GE VMIVME-7750 completes its power-on self-test and that front-panel indicators and video output (if used) show normal status.

Enter the BIOS setup of the GE VMIVME-7750 to configure boot order, serial ports, and network boot options if required.

Boot the selected operating system (Windows, Linux, or a real-time OS) from CompactFlash, hard disk, or remote Ethernet boot supported by the GE VMIVME-7750.

Start application software for control or data acquisition and monitor CPU load, memory usage, and network performance of the GE VMIVME-7750.

Always remove system power and discharge static before inserting or removing the GE VMIVME-7750 from the VME backplane.

Slide the GE VMIVME-7750 along the card guides and fully seat the board into the VME connector using the ejector levers; do not use excessive force.

Ensure the VME slot address, backplane configuration, and power capacity are compatible with the GE VMIVME-7750 and attached PMC modules.

Provide adequate airflow in the chassis; high-power CPU options of the GE VMIVME-7750 may require strong front-to-back cooling.

Use proper SODIMM and CompactFlash types recommended for the GE VMIVME-7750 to avoid compatibility issues.

Periodically inspect the GE VMIVME-7750 for dust and gently clean the board and heat sink using dry, oil-free compressed air.

Check that front-panel connectors, serial adapters, and PMC modules on the GE VMIVME-7750 remain firmly seated and free of corrosion.

Review system logs and application diagnostics to detect memory, Ethernet, or storage anomalies related to the GE VMIVME-7750 in early stages.

Keep a backup image of the OS and applications used on the GE VMIVME-7750 CompactFlash or network server for quick restoration.

For long-life systems, plan periodic functional tests or board-level spares so a GE VMIVME-7750 can be replaced quickly if hardware degradation is detected.
