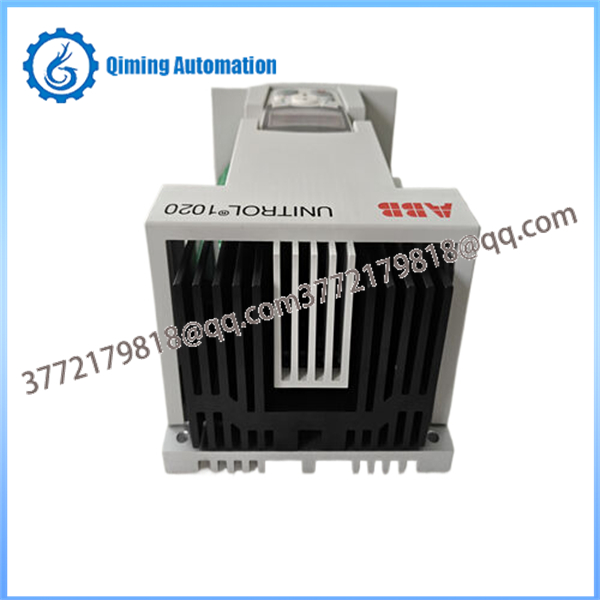

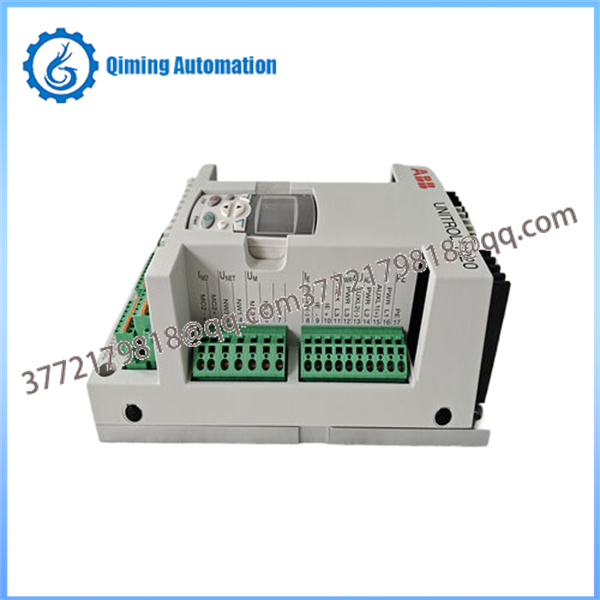

The ABB UNITROL1020 3BHE036163R6106 is a high-performance, fully digital automatic voltage regulator (AVR) and excitation controller, purpose-built as a specialized variant within the ABB UNITROL® 1000 series for medium-sized synchronous generators and industrial machines . This specific model serves as a "power stability control hub" within complex power systems, designed to deliver precise real-time regulation of generator excitation current to maintain output voltage within an exceptionally tight tolerance . The ABB UNITROL1020 3BHE036163R6106 combines advanced 32-bit dual-redundant microprocessor architecture (ARM Cortex-A9 + DSP) with robust IGBT semiconductor technology, enabling seamless integration with distributed control systems and ensuring optimal power quality in demanding applications ranging from distributed energy resources to marine propulsion systems .

Model Number ABB UNITROL1020 3BHE036163R6106

Manufacturer ABB Ltd., Switzerland

Product Type Automatic Voltage Regulator (AVR) / Excitation Controller for synchronous machines

Primary Function Real-time excitation control for voltage regulation, reactive power management, and power system stabilization

Processor Architecture Dual-redundant: 32-bit ARM Cortex-A9 (main) + 16-bit DSP (backup), 50ms seamless failover

Input Voltage (Sensing) 85-276 V AC (50/60 Hz) or 110-300 V DC

Auxiliary Power Supply 24 V DC (≤300 mA)

Excitation Output (Continuous) 20 A DC (typical for this variant); up to 600 A with external power stages

Excitation Output (Peak) 30 A DC

Regulation Accuracy ±0.2% of rated generator voltage

Response Time<15 ms (step-load change, dynamic recovery)

Control Modes AVR (Auto Voltage Regulation), FCR (Field Current Regulation), PF (Power Factor), VAR (Reactive Power), Q control

Protection Functions Over/Underexcitation limiter (OEL/UEL), V/Hz limiter, Overvoltage (150%), Undervoltage (50%), Overcurrent (200%), Stator current limiter, PSS (Power System Stabilizer)

Communication Interfaces Modbus TCP, Modbus RTU (RS-485), DNP3, IEC 60870-5-101/104, Ethernet, USB

Digital/Analog I/O 8x Digital I/O channels, 4x Analog input channels

Special Features Rotating Diode Monitoring (RDM), dual-channel support for parallel load sharing, automatic synchronizing, built-in data logger (30-day storage)

Operating Temperature -25°C to +70°C

Storage Temperature -40°C to +85°C

Protection Rating IP54 (with external enclosure)

Vibration Resistance 5g peak acceleration

Mounting DIN rail (EN 60715) or wall-mount

Dimensions (W×H×D) 171 mm × 305 mm × 89 mm

Weight Approx. 3.2 kg

Certifications DNV, UL, CE

Proper handling of the ABB UNITROL1020 3BHE036163R6106 during operation is essential for system integrity. Follow these steps for integration and setup within an excitation system:

Pre-Installation Verification: Before handling the module, ensure all power sources are disconnected and locked out following the safety procedures in the user manual. Verify that the ABB UNITROL1020 3BHE036163R6106 matches your generator's excitation requirements (field voltage/current) and system voltage .

Physical Mounting: Mount the model vertically onto a standard 35 mm DIN rail or directly onto a mounting plate within the generator control cabinet . Ensure adequate clearance (≥50 mm) around the unit for cooling and wiring access. Ensure the unit frame is properly grounded (PE) via the mounting plate or DIN rail using a ≥4 mm² ground wire.

Electrical Connections: Connect the main power sensing inputs (85-276 V AC) to the generator voltage transformers (PT connections) . Connect the auxiliary 24 V DC supply to the designated terminals, observing correct polarity. Wire the field excitation output to the generator's brushless exciter or slip rings. Connect any digital/analog I/O for external control and monitoring. Use shielded, twisted-pair cables for all signal connections with terminal torque of 8-10 N·m .

Communication Setup: Configure the communication interfaces as required—Ethernet for Modbus TCP, RS-485 for Modbus RTU or DNP3. For RS-485 networks, ensure proper termination (120Ω resistor) at both ends . The Ethernet interface supports plug-and-play connectivity with standard switches .

Configuration and Power-On: Using the front panel 4-line display and 8-key interface, or ABB's CMT1000 / PowerStudio software, configure generator parameters (rated voltage, frequency), control mode (AVR, PF, VAR), protection limits, and communication settings . After confirming all connections, restore power and verify the ABB UNITROL1020 3BHE036163R6106 LED indicators show normal operation (green RUN LED steady) and the generator voltage stabilizes at the setpoint.

Adhering to these precautions will safeguard both the operator and the equipment when handling this model:

High Voltage Safety: The ABB UNITROL1020 3BHE036163R6106 interfaces directly with generator voltage and excitation systems carrying hazardous voltages up to 276V AC and 300V DC . Installation and wiring must only be performed by qualified personnel following all local safety regulations.

ESD Safety: The unit contains sensitive electronic components. Handle the module by its edges and avoid touching circuit boards or connectors to prevent electrostatic discharge damage. The dual-redundant processor architecture provides operational redundancy but does not eliminate handling precautions .

Environmental Control: Install this model in a clean, dry control cabinet with appropriate protection. While the module is rated for IP54 with an enclosure, ensure the location is free from excessive moisture, conductive dust, and corrosive fumes . Maintain ambient temperature within the -25°C to +70°C range.

Power Supply Verification: Before energizing, double-check that the auxiliary 24 V DC power supply is stable and within tolerance (±10%). Verify all generator PT and excitation wiring against the connection diagram to prevent damage .

Parameter Validation: Before placing the generator online, validate all configured protection parameters (overexcitation, underexcitation limits, V/Hz) against generator capability curves and grid requirements to ensure adequate protection.

Redundancy Testing: If operating in dual-processor mode, periodically verify that the backup processor assumes control seamlessly within the specified 50ms timeframe during controlled tests .

Regular maintenance ensures the longevity and reliability of the ABB UNITROL1020 3BHE036163R6106:

Periodic Inspection: Monthly, inspect the model for any signs of dust accumulation, loose connections, or corrosion . Semi-annually, use clean, dry compressed air to remove debris from the unit's surfaces and ensure ventilation pathways are unobstructed. The ceramic substrate cooling technology (20% improved heat dissipation) reduces thermal stress but does not eliminate the need for cleaning .

Diagnostic Monitoring: Regularly observe the LED status indicators (green RUN / red FAULT) on the ABB UNITROL1020 3BHE036163R6106 during routine walks . Utilize the built-in data logger (30-day storage) via CMT1000 software to analyze trends, monitor excitation parameters, limiter status, and review alarm history for early fault detection .

Connection Verification: Annually, during scheduled system downtime, verify that all field wiring connections to the model are secure, as thermal cycling and vibration can cause loosening over time. Check communication cable connections and consider using M12 industrial-grade connectors in high-vibration environments .

Functional Testing: During scheduled outages, perform controlled tests to verify protection functions (e.g., by simulating overexcitation conditions during offline testing) and confirm proper operation of the ABB UNITROL1020 3BHE036163R6106 and associated trip circuits.

Calibration and Component Replacement: Every 3 years, verify the measurement accuracy of the AVR against calibrated reference instruments and recalibrate if necessary . Replace the power supply board electrolytic capacitors every 3 years to maintain stability. After any parameter changes or commissioning, back up the complete configuration via PowerStudio software .
