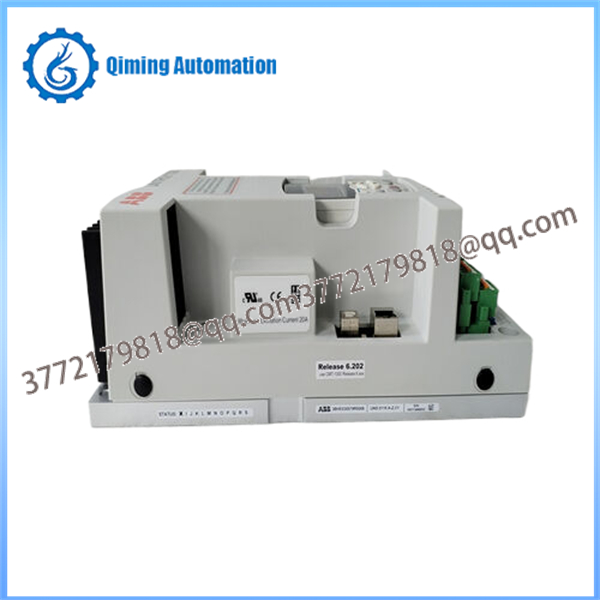

The ABBUNITROL 1020 is a state-of-the-art, fully digital automatic voltage regulator (AVR) and excitation controller, purpose-built for synchronous generators and industrial synchronous motors up to approximately 80 MVA . As the flagship member of ABB's compact UNITROL® 1000 series, this specific model is designed as a complete, pre-engineered excitation solution that integrates advanced microprocessor technology with robust IGBT power stages . The ABB UNITROL 1020 serves as the central intelligence for the excitation system, precisely controlling the generator's field current to maintain terminal voltage within a tight tolerance, manage reactive power (VAR) flow, and ensure seamless synchronization with the grid. Its "FULL" variant designation indicates it incorporates the most comprehensive feature set within the series, including all standard regulation modes, limiters, and power system stabilizer (PSS) functionality .

Model Number ABB UNITROL 1020 (Variants: 3BHE030579R0001, R0003, R0007; UNS0119A-Z,V1)

Primary Function Automatic Voltage Regulator (AVR) / Excitation Controller for synchronous machines

Power Supply (Main) 100-480 V AC, 3-phase, 50/60 Hz (typical); DC 125-250 V optional

Auxiliary Supply 24 V DC for control circuits

Excitation Output (Continuous) 20 A DC (standard); up to 600 A with external power stage

Excitation Voltage (Field) 0-300 V DC (configurable based on generator requirements)

Regulation Accuracy ±0.5% of rated generator voltage (static)

Response Time < 10 ms (typical); dynamic recovery<200ms

Control Modes AVR (Auto Voltage Regulation), FCR (Field Current Regulation), PF (Power Factor), VAR (Reactive Power)

Protection Functions Over/Underexcitation limiter (OEL/UEL), V/Hz limiter, Overfluxing, Stator current limiter, PSS (Power System Stabilizer)

Communication Interfaces Ethernet (Modbus TCP), RS-485 (Modbus RTU), USB, CANopen, optional IEC 61850

Operating Temperature -25°C to +55°C (standard); extended ranges available

Protection Rating IP20 (standard module); up to IP54 in cabinet

Mounting DIN rail mounting (EN 60715) or panel mount

Dimensions (approx.) 210 mm × 140 mm × 260 mm (module); varies with configuration

Weight (approx.) 1.3 kg (module only)

Certifications CE, UL, CSA, DNV, GOST

Proper handling of the ABB UNITROL 1020 during operation is essential for system integrity. Follow these steps for integration and setup within an excitation system:

Pre-Installation Verification: Before handling the module, ensure all power sources are disconnected and locked out following the safety procedures in the user manual . Verify that the ABB UNITROL 1020 variant matches your generator's excitation requirements (field voltage/current) and system voltage.

Physical Mounting: Mount the model vertically onto a standard 35 mm DIN rail or directly onto a mounting plate within the generator control cabinet . Ensure adequate clearance for cooling: at least 50 mm above, 20 mm below, and 10 mm on each side . Ensure the unit frame is properly grounded (PE) via the mounting plate or DIN rail using a ≥4 mm² ground wire .

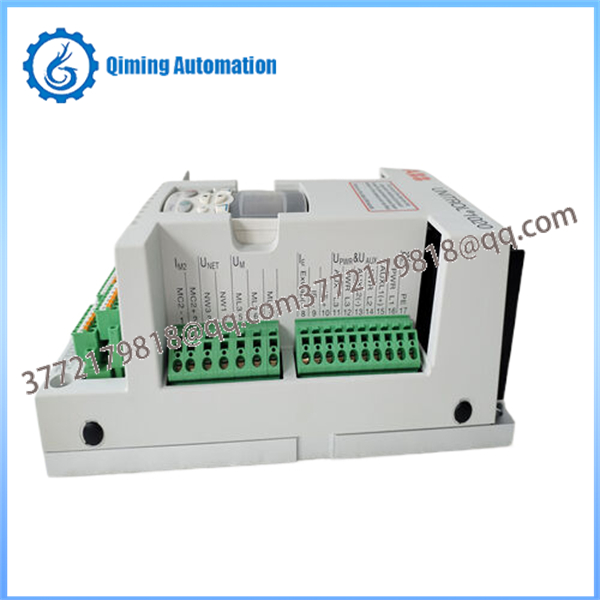

Electrical Connections: Connect the main power supply (PWR L1, L2, L3) and auxiliary 24 V DC supply to the designated terminals, observing correct polarity and torque specifications (e.g., 10 Nm for M6 mounting bolts) . Wire the generator voltage sensing inputs (PT connections), field excitation output to the generator's brushless exciter or slip rings, and any digital/analog I/O for external control and monitoring . Use shielded, twisted-pair cables for all signal connections.

Configuration and Power-On: Using the front panel interface or ABB's CMT1000 / DriveWindow® software, configure the generator parameters (rated voltage, frequency), control mode (AVR, PF, VAR), protection limits, and communication settings . After confirming all connections, restore power and verify the ABB UNITROL 1020 LED indicators show normal operation (green RUN LED steady) and the generator voltage stabilizes at the setpoint.

Adhering to these precautions will safeguard both the operator and the equipment when handling this model:

High Voltage Safety: The ABB UNITROL 1020 interfaces directly with generator voltage and excitation systems carrying hazardous voltages up to 480V AC and 300V DC . Installation and wiring must only be performed by qualified personnel following all local safety regulations.

ESD Safety: The unit contains sensitive electronic components. Handle the module by its edges and avoid touching circuit boards or connectors to prevent electrostatic discharge damage.

Capacitor Discharge: After disconnecting power from the ABB UNITROL 1020, always wait at least 5 minutes for the intermediate circuit capacitors to discharge before performing any maintenance or handling internal components . Do not operate when the yellow warning LED is flashing .

Environmental Control: Install this model in a clean, dry control cabinet free from excessive moisture, conductive dust, corrosive fumes, and strong electromagnetic interference sources (e.g., large variable frequency drives) . Maintain ambient temperature within the specified range.

Power Supply Verification: Before energizing, double-check that all power supply voltages match the model's nameplate ratings and that all terminal connections are secure with proper torque .

Parameter Validation: Before placing the generator online, validate all configured protection parameters (overexcitation, underexcitation limits, V/Hz) against generator capability curves and grid requirements to ensure adequate protection.
