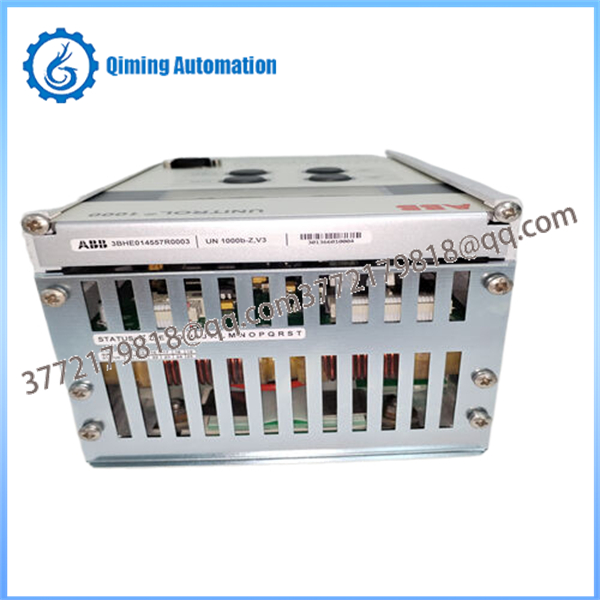

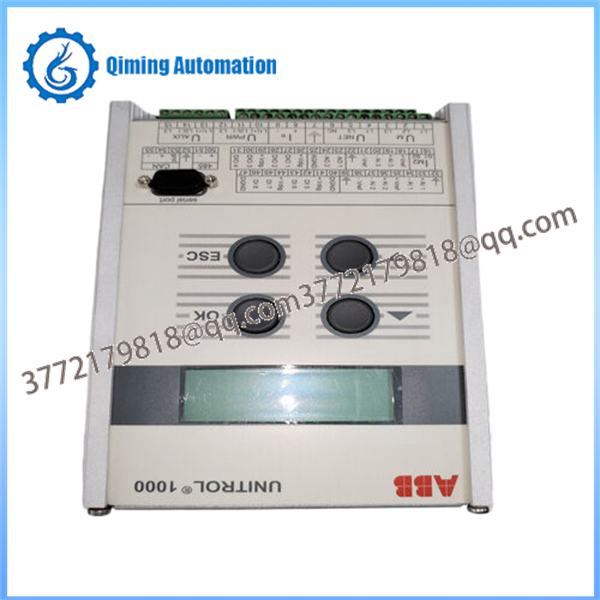

The ABB UNITROL1000 is a versatile family of compact, microprocessor-based automatic voltage regulators (AVRs) designed for brushless excitation systems of small to medium-sized synchronous generators and motors. This series replaces older analog technologies with advanced digital control, offering superior voltage stability, fast dynamic response, and extensive protection features. The UNITROL 1000 series utilizes IGBT (Insulated Gate Bipolar Transistor) power stages for efficient energy conversion and precise current control. It is engineered for ease of integration into generator control panels, supporting various power supply configurations such as Permanent Magnet Generators (PMG) or auxiliary windings. The series includes specific models tailored to different current requirements: the UNITROL 1005 (up to 5 A), UNITROL 1010 (up to 10 A), and UNITROL 1020 (up to 20 A), along with the flexible UNITROL 1000 FLEX pre-packaged solutions. These units are widely used in marine applications, standby power generation, industrial drives, and small hydro plants where reliable voltage regulation is paramount.

Series Models:

UNITROL 1005: Max continuous excitation current ~5 A DC.

UNITROL 1010: Max continuous excitation current ~10 A DC (Peak ~20 A).

UNITROL 1020: Max continuous excitation current ~20 A DC (Peak >30 A).

UNITROL 1000 FLEX: Pre-configured single or dual channel systems based on the 1020 Full version.

Power Supply Input: 3-phase 280–430 V AC (50/60 Hz) from PMG or auxiliary winding; some variants support wide-range inputs.

Control Technology: Digital PID algorithm with adaptive tuning and non-linear gain scheduling.

Regulation Modes: Automatic Voltage Regulation (AVR), Field Current Regulation (FCR), Power Factor (PF) Control, and Reactive Power (VAR) Control.

Communication: Optional RS485 (Modbus RTU) or Ethernet (Modbus TCP) for remote monitoring, parameterization, and integration into SCADA systems.

Protection Functions: Over/under voltage, over/under frequency, loss of sensing, over-excitation, under-excitation, diode failure detection, and thermal overload protection.

Display & Interface: Local LED status indicators, push-buttons for manual voltage adjustment, and optional LCD display modules for detailed diagnostics.

Operating Temperature: -25°C to +70°C (with derating above 50°C).

Mounting: DIN rail or direct panel mounting.

Certifications: Compliant with major marine (DNV, GL, ABS, LR) and industrial standards (CE, UL).

Safety Isolation: Ensure the generator is stopped and all power sources (PMG, auxiliary, battery) are disconnected. Verify zero energy state.

Mounting: Securely mount the ABB UNITROL 1000 unit on a DIN rail or flat panel within the generator control cabinet. Ensure at least 100mm of clearance above and below for airflow.

Power Wiring: Connect the 3-phase AC supply (from PMG or auxiliary winding) to the input terminals (L1, L2, L3). Verify phase sequence and voltage levels match the unit's rating.

Field Output Wiring: Connect the exciter field winding leads (F+, F-) to the output terminals of the ABB UNITROL 1000. Strictly observe polarity to ensure correct build-up of residual magnetism.

Voltage Sensing: Connect the generator terminal voltage sensing lines (U, V, W) to the designated sensing inputs. Use fused connections (typically 1-2 A fuses) for safety.

Control & I/O: Wire external control signals (Start/Stop, Voltage Raise/Lower, Remote/Setpoint) and communication cables (RS485/Ethernet) to the respective terminal blocks.

Grounding: Connect the ABB UNITROL 1000 grounding terminal to the cabinet ground busbar with a short, thick cable to minimize noise.

Initial Configuration: Set the DIP switches or use the local interface to configure basic parameters (nominal voltage, frequency, PMG/Aux selection) according to the generator nameplate.

Power Up: Restore the PMG/auxiliary supply first. Observe the "Power" and "Ready" LEDs. Initiate the generator start sequence and monitor voltage build-up.

Visual Inspection: Periodically check for dust accumulation, signs of overheating (discoloration), or loose connections on the ABB UNITROL 1000.

Terminal Tightening: During scheduled outages, torque-check all power and control terminal connections, especially in vibrating environments (e.g., marine engines).

Cleaning: Clean the unit gently with dry, oil-free compressed air. Avoid chemical solvents.

Functional Testing: Periodically test protection functions (e.g., simulate loss of sensing, over-voltage trip) to ensure the ABB UNITROL 1000 responds correctly.

Parameter Backup: If equipped with communication, regularly download and backup the configuration parameters and fault logs to a PC.

LED Monitoring: Train operators to recognize normal vs. abnormal LED status patterns on the ABB UNITROL 1000 for early fault detection.

No Voltage Build-up: Check residual magnetism, PMG/auxiliary supply voltage, field wiring polarity, and "Run" status LED. Verify if the "Field On" command is active.

Unstable/Oscillating Voltage: Inspect sensing connections for looseness. Check for EMI interference. Review stability parameters (gain, damping) in the ABB UNITROL 1000 configuration.

Over-Voltage Trip: Verify sensing fuse integrity. Check for open circuits in the field winding or rotating diodes. Review over-voltage setpoints.

Communication Failure: Check wiring termination (A/B swap), baud rate settings, and slave address configuration on the ABB UNITROL 1000.

Over-Temperature Alarm: Ensure adequate airflow, clean dust filters/fins, and verify ambient temperature is within limits. Check if the unit is overloaded.
