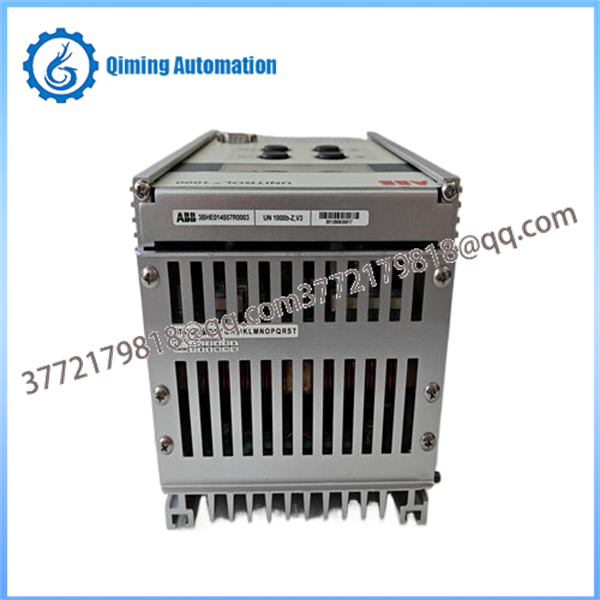

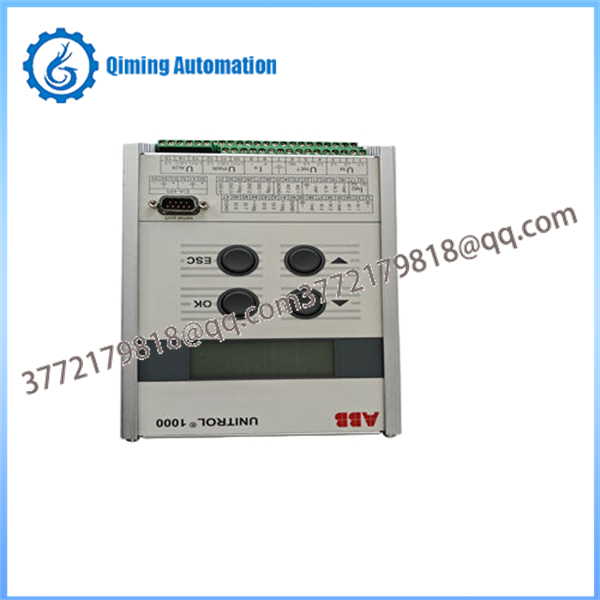

The ABB UNITROL 1000 3BHE014557R0003 is a state-of-the-art, compact automatic voltage regulator (AVR) engineered as the core control component for synchronous generator excitation systems . As a prominent member of ABB's renowned UNITROL family, this specific model combines advanced digital technology with robust construction to deliver precise voltage regulation, ensuring generator terminal voltage remains stable within a tight ±1% tolerance even under demanding step-load changes . The ABB UNITROL 1000 3BHE014557R0003 integrates brushless and static excitation technologies, offering rapid response times and high reliability for a wide range of power generation applications, from industrial diesel generators to critical backup power systems in data centers and hospitals .

Model Number ABB UNITROL 1000 3BHE014557R0003 (UNITROL1000-15)

Primary Function Automatic Voltage Regulator (AVR) for Synchronous Generators

Input Voltage (Power Supply) 24 V DC (18-36 V DC range)

Generator Voltage Sensing 85-276 V AC, 50/60 Hz

Excitation Output (Field Current) 15 A continuous (UNITROL1000-15 variant)

Output Voltage (Field) 10-540 V DC (configurable based on generator requirements)

Regulation Accuracy ±1% of rated generator voltage

Response Time < 0.1 seconds (typical for step-load changes)

Control Modes AVR (Auto Voltage Regulation), FCR (Field Current Regulation), PF (Power Factor), Q (Reactive Power)

Communication Interfaces Modbus RTU (RS-485), CAN, optional Profibus DP, optional IEC 61850

Protection Functions Over/Undervoltage, Overexcitation, V/Hz Limiting, Underfrequency, Loss of Sensing

Operating Temperature -25°C to +70°C

Storage Temperature -40°C to +85°C

Protection Rating IP20 (requires cabinet installation)

Mounting Standard DIN rail (35 mm)

Dimensions (approx.) 190 mm × 130 mm × 40 mm

Weight (approx.) 1.0 kg

Proper handling of the ABB UNITROL 1000 3BHE014557R0003 during operation is essential for system integrity. Follow these steps for integration and setup:

Pre-Installation Verification: Before handling the module, ensure all power sources are disconnected. Verify that the ABB UNITROL 1000 3BHE014557R0003 matches your generator's excitation requirements (field voltage/current) and system voltage.

Physical Mounting: Mount the model onto a standard 35 mm DIN rail within the generator control cabinet, ensuring adequate clearance (at least 50 mm) around the unit for ventilation and wiring access .

Electrical Connections: Connect the 24 V DC auxiliary power supply to the designated terminals, observing correct polarity. Wire the generator voltage sensing inputs (PT connections), field excitation output to the generator's brushless exciter or slip rings, and any digital/analog I/O for external control and monitoring . Use shielded, twisted-pair cables for all signal connections.

Configuration and Power-On: Using the front panel interface or ABB's PowerStudio software, configure the generator parameters (rated voltage, frequency), control mode (AVR, PF, Q), protection limits, and communication settings . Restore power and verify the ABB UNITROL 1000 3BHE014557R0003 LED indicators show normal operation (green RUN LED steady) and the generator voltage stabilizes at the setpoint .

Adhering to these precautions will safeguard both the operator and the equipment when handling this model:

ESD Safety: The ABB UNITROL 1000 3BHE014557R0003 contains sensitive electronic components. Always wear a grounded anti-static wrist strap when handling the module to prevent electrostatic discharge damage.

High Voltage Safety: The unit interfaces directly with generator voltage and excitation systems carrying hazardous voltages. Installation and wiring must only be performed by qualified personnel following all local safety regulations.

Environmental Control: Install this model in a clean, dry control cabinet with appropriate protection (minimum IP20). Ensure the location is free from excessive moisture, conductive dust, and corrosive fumes, and maintain ambient temperature within the -25°C to +70°C range .

Power Supply Verification: Before energizing, double-check that the auxiliary 24 V DC power supply is stable and within tolerance (±10%). Verify all generator PT and excitation wiring against the connection diagram to prevent damage .

Parameter Validation: Before placing the generator online, validate all configured protection parameters (overvoltage, underexcitation limits) to ensure they are appropriate for the protected equipment and grid requirements.

MicroSD Card Backup: The model stores configuration parameters on a user-replaceable microSD card. After commissioning, back up this card or save the configuration file via PowerStudio to enable rapid replacement if needed .

Regular maintenance ensures the longevity and reliability of the ABB UNITROL 1000 3BHE014557R0003:

Periodic Inspection: Quarterly, inspect the model for any signs of dust accumulation, loose connections, or corrosion. Use clean, dry compressed air to remove debris from the unit's surfaces and ventilation areas. The fanless cooling design minimizes maintenance requirements .

Diagnostic Monitoring: Regularly observe the LED status indicators on the ABB UNITROL 1000 3BHE014557R0003 during routine walks. Utilize the built-in online diagnostics to monitor excitation parameters, limiter status, and alarm history via the communication interface .

Connection Tightness: During scheduled system downtime, verify that all field wiring connections to the model are secure, as thermal cycling and vibration can cause loosening over time.

Functional Testing: Periodically test protection functions (e.g., by simulating overvoltage conditions during offline testing) to verify proper operation of the ABB UNITROL 1000 3BHE014557R0003 and associated trip circuits.

Configuration Backup: After any parameter changes, back up the configuration via PowerStudio software or copy the microSD card to ensure quick restoration if needed .
