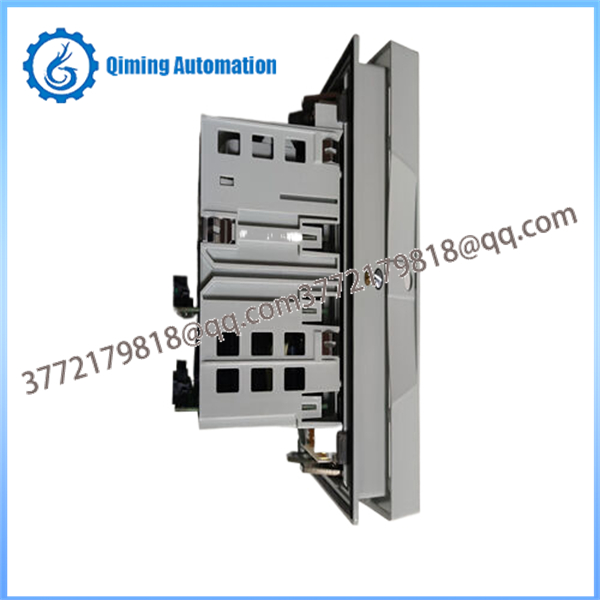

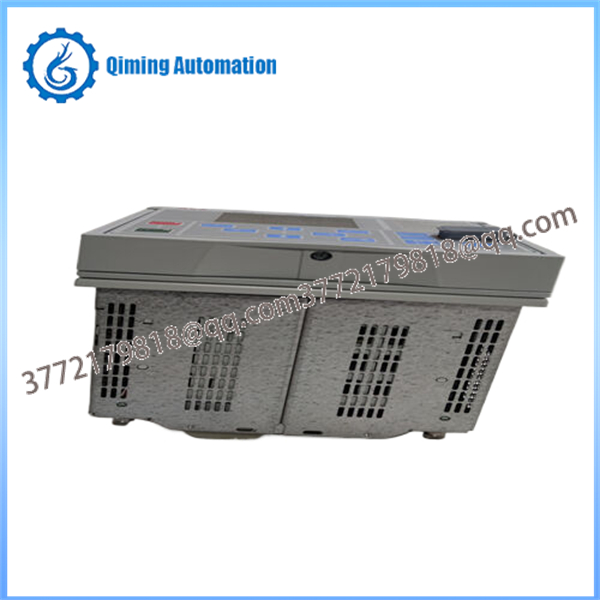

The ABB REF615A_E HAFAABAAABE1BCA1XE is a multifunction feeder protection and control relay from the ABB Relion® 615 series, designed for medium-voltage power distribution systems. The ABB REF615A_E HAFAABAAABE1BCA1XE integrates protection, monitoring, measurement, and communication capabilities in a single intelligent electronic device (IED).

The ABB REF615A_E HAFAABAAABE1BCA1XE is commonly used in substations, industrial power networks, renewable energy plants, and utility distribution systems. By analyzing electrical parameters such as current, voltage, and frequency, the ABB REF615A_E HAFAABAAABE1BCA1XE can quickly detect faults and isolate the affected feeder, improving system reliability and preventing equipment damage.

In a medium-voltage substation distribution feeder, the ABB REF615A_E HAFAABAAABE1BCA1XE is installed in the switchgear protection panel.

When abnormal conditions such as overcurrent, earth fault, or voltage imbalance occur, the ABB REF615A_E HAFAABAAABE1BCA1XE processes CT and VT signals and sends a trip command to the circuit breaker. This isolates the faulty section of the network while maintaining power supply to unaffected feeders.

Because the ABB REF615A_E HAFAABAAABE1BCA1XE supports modern communication protocols, operational data and alarms can also be transmitted to SCADA or substation automation systems for real-time monitoring and remote control.

Model ABB REF615A_E HAFAABAAABE1BCA1XE

Product Type Feeder Protection and Control Relay

Series ABB Relion® 615

Auxiliary Power Supply 85–265 V AC/DC or 110/220 V DC

Current Input 1 A or 5 A (CT secondary)

Voltage Input 100 V / 230 V AC

Frequency Range 45–65 Hz

Communication Protocols IEC 61850, Modbus TCP/RTU, DNP3

Digital Inputs Up to 16 DI

Digital Outputs Up to 10 DO

Operating Temperature −25°C to +70°C

Installation Panel or rack mounting

The ABB REF615A_E HAFAABAAABE1BCA1XE typically provides multiple protection features:

Phase overcurrent protection (50/51)

Earth-fault protection (50N/51N)

Directional overcurrent protection

Thermal overload protection

Voltage and frequency monitoring

Auto-reclosing and synchronism check

Fault recording and disturbance analysis

These functions enable the ABB REF615A_E HAFAABAAABE1BCA1XE to quickly detect and isolate faults in distribution networks.

Power Preparation

Connect the auxiliary power supply required for the ABB REF615A_E HAFAABAAABE1BCA1XE.

Signal Wiring

Connect current transformers (CT), voltage transformers (VT), and digital I/O signals to the ABB REF615A_E HAFAABAAABE1BCA1XE.

Communication Setup

Configure Ethernet or serial communication interfaces for SCADA integration.

Parameter Configuration

Set protection parameters and logic using ABB configuration software.

Commissioning Test

Perform functional testing to ensure the ABB REF615A_E HAFAABAAABE1BCA1XE correctly detects faults and operates the circuit breaker.

Disconnect all power sources before installing the ABB REF615A_E HAFAABAAABE1BCA1XE.

Ensure CT and VT polarity is correctly connected.

Install the ABB REF615A_E HAFAABAAABE1BCA1XE inside a clean and ventilated switchgear cabinet.

Use shielded communication cables to minimize electromagnetic interference.

Verify protection settings before placing the ABB REF615A_E HAFAABAAABE1BCA1XE into operation.

Visual Inspection: Check the ABB REF615A_E HAFAABAAABE1BCA1XE for loose wiring or mechanical damage.

Event Log Review: Monitor disturbance records and fault logs.

Communication Check: Verify SCADA or network communication status.

Protection Testing: Periodically test relay protection functions.

Firmware Updates: Apply updates to maintain compatibility and reliability.
