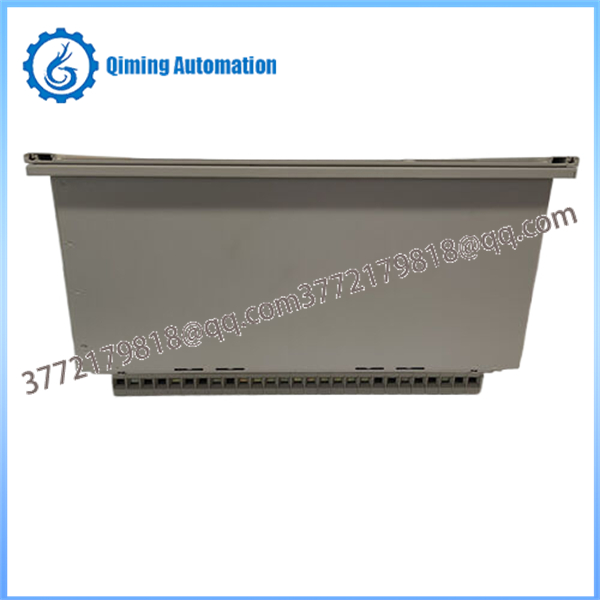

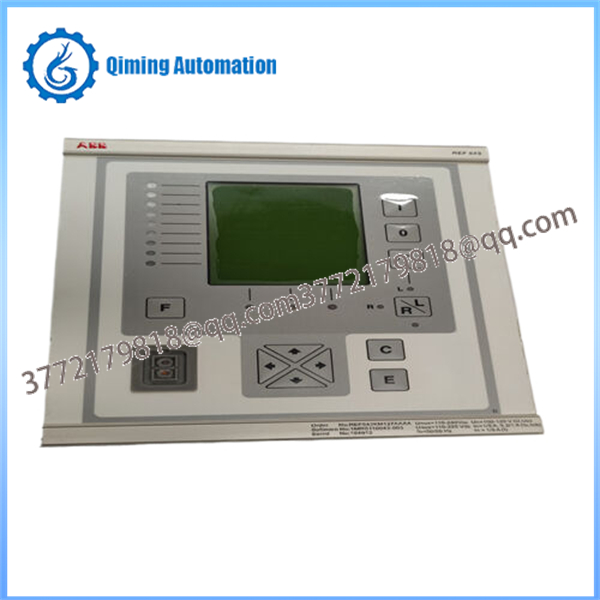

The ABB REF543KM127AAAA is a feeder terminal designed for protection, control, measurement, and supervision of medium voltage networks. The ABB REF543KM127AAAA integrates multiple protection and automation functions into a single compact unit, reducing the need for separate devices and complex hard wiring. With its intelligent processing, rich communication interfaces, and flexible logic, the ABB REF543KM127AAAA is well suited for modern substation and industrial distribution applications.

Model ABB REF543KM127AAAA feeder terminal

Manufacturer ABB

Main function Feeder protection, control, measurement, supervision for medium voltage networks

Rated frequency 50 / 60 Hz

Current inputs Four precise current inputs (CT based)

Output contacts Three normally open power outputs, several binary signal outputs (expandable with I/O modules)

Display LCD display with backlight and automatic contrast control

Communication Front port for local PC, rear port for remote SCADA / control system

Auxiliary voltage DC auxiliary supply (observe safety warnings when disconnected)

Weight Approx. 7.7 kg

Typical mounting Panel / switchgear mounting within medium voltage cubicles

Verify that the ABB REF543KM127AAAA is correctly installed, wired, and grounded according to the project drawings and safety rules.

Energize the auxiliary supply of the ABB REF543KM127AAAA and confirm that the LCD display and indicators start up normally.

Connect a configuration or engineering laptop to the front communication port of the ABB REF543KM127AAAA and upload or adjust settings as required.

Set protection parameters, measurement ranges, and control logic in the ABB REF543KM127AAAA according to the line data and coordination studies.

Perform secondary injection and functional tests to verify that the ABB REF543KM127AAAA trips, signals, and reports correctly under simulated fault and normal conditions.

Place the ABB REF543KM127AAAA into service, and store the final settings and configuration files for future reference and maintenance.

These steps are a generic example; always follow the official ABB manuals and site commissioning procedures.

Install the ABB REF543KM127AAAA inside a clean, dry, and properly ventilated switchgear or control panel that meets the specified environmental conditions.

Ensure sufficient space around the ABB REF543KM127AAAA for cable routing, heat dissipation, and front access to the LCD and keypad.

Use the recommended CT/VT connections, terminal types, and tightening torques when wiring the ABB REF543KM127AAAA current, voltage, and binary circuits.

Separate control and communication wiring of the ABB REF543KM127AAAA from highpower cables to minimize electromagnetic interference.

Always de energize relevant circuits and follow lockouttagout procedures before installing, removing, or rewiring the ABB REF543KM127AAAA.

Periodically inspect the ABB REF543KM127AAAA terminals, connectors, and surrounding wiring for dust, looseness, or signs of overheating.

Review event lists, fault records, and measurement trends stored in the ABB REF543KM127AAAA to detect abnormal operation or recurring issues.

Check key protection elements and trip outputs of the ABB REF543KM127AAAA during scheduled maintenance using approved test equipment.

Keep firmware, configuration files, and setting reports of each ABB REF543KM127AAAA backed up and controlled, to simplify replacement and recovery.

Follow ABB recommendations for lifecycle management of the ABB REF543KM127AAAA, including any firmware updates or retrofit options for older installations.
