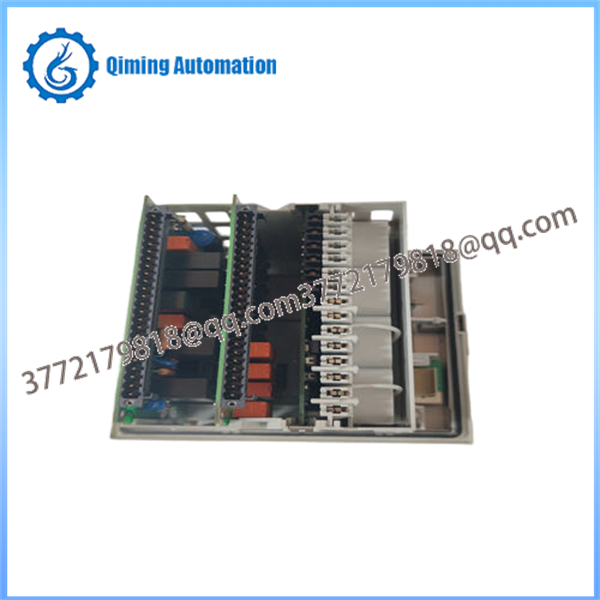

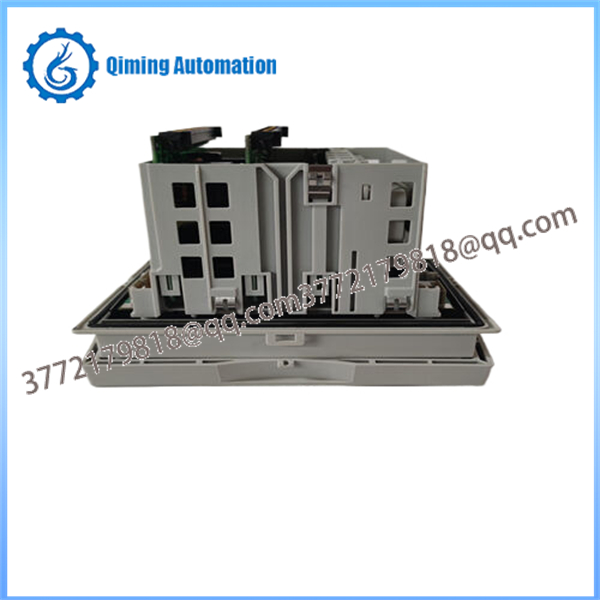

The ABB REF615 HCFFAEAGANB2BAN1X (often listed as REF615C_C HCFFAEAGANB2BAN1X or similar variants) is a compact, dedicated feeder protection and control Intelligent Electronic Device (IED) from ABB's Relion® 615 series. It provides advanced protection, control, measurement, supervision, and monitoring for overhead lines, cable feeders, and distribution points in medium-voltage utility and industrial power systems. Supporting radial, looped, and meshed networks (with or without distributed generation), the ABB REF615 HCFFAEAGANB2BAN1X offers non-directional overcurrent, earth-fault protection, autoreclosing, directional elements (depending on config), and IEC 61850 integration. This configuration variant emphasizes reliable fault clearing, breaker control, and substation automation compatibility, making the ABB REF615 HCFFAEAGANB2BAN1X ideal for modern MV distribution applications requiring high dependability and flexibility.

Key technical specifications of the ABB REF615 HCFFAEAGANB2BAN1X include:

Rated frequency: 50/60 Hz

Analog inputs: Typically 4 current inputs (phase + residual, 1/5 A CT selectable) + voltage inputs (configurable per order code; often phase + residual voltage)

Binary I/O: Extensive (e.g., up to 17–20 binary inputs, multiple power/signal outputs; high-speed options available)

Power supply: Wide range, commonly 48–250 V DC / 100–240 V AC (or 24–60 V DC variants)

Communication: IEC 61850 Edition 2 (GOOSE, MMS, process bus 9-2 LE support), IEC 60870-5-103/104, Modbus, DNP3; Ethernet (RJ45/fiber)

Protection functions: Non-directional overcurrent (low/high/instantaneous stages, IDMT/definite time), earth-fault (non-directional/sensitive), optional directional earth-fault, autoreclosing (multi-shot), synchrocheck, CB failure, thermal overload

Measurements: Currents, voltages, sequence components, power (P/Q/S), energy, frequency, harmonics

Disturbance recorder: Multiple channels, COMTRADE format, extended recording time

HMI: Graphical LCD (large/small options), programmable LEDs, navigation keys

Operating temperature: -25°C to +55°C (extended ranges possible)

Mounting: Withdrawable plug-in unit, 1/2 19" or 1/1 19" rack/panel (flush/semi-flush)

Additional features: Fault locator, condition monitoring (CB wear, trip circuit), self-supervision, cybersecurity, optional RTD/power quality

The ABB REF615 HCFFAEAGANB2BAN1X is a specific order code variant (likely standard feeder config with enhanced I/O, Ethernet comms, and protection features); exact details from ABB ordering key.

To operate the ABB REF615 HCFFAEAGANB2BAN1X effectively:

Apply auxiliary power and verify green Power LED steady, no IRF (Internal Relay Fault) or alarm LEDs active.

Connect via front USB/Ethernet to PCM600 tool for settings upload, configuration verification, and real-time monitoring.

Use local HMI to display single-line diagram, view measurements (currents/voltages/power), events, alarms, and records.

Execute breaker control: Select-before-operate open/close, verify synchrocheck (if enabled), and manage autoreclose sequences.

Monitor protection: Observe starts/trips for overcurrent/earth-fault, directional elements, or other functions; acknowledge alarms via HMI/SCADA.

Test: Perform secondary injection on currents/voltages, simulate faults, and confirm timings, GOOSE signals, and autoreclose.

In IEC 61850 setups with the ABB REF615 HCFFAEAGANB2BAN1X, check horizontal GOOSE communication and remote SCADA control.

These steps provide secure feeder management using the ABB REF615 HCFFAEAGANB2BAN1X.

Proper installation of the ABB REF615 HCFFAEAGANB2BAN1X requires strict safety measures:

Mount in rack/panel with ventilation clearance and seismic support if needed; use ABB hardware for secure flush/semi-flush.

Power down and short CT secondaries before wiring to avoid open-circuit risks; isolate all supplies.

Connect CT/VT with correct polarity/sequence using shielded twisted pairs; ground shields at one end.

Wire auxiliary power with fused/breaker protection matching voltage/polarity rating.

Install optional modules (Ethernet/fiber/RTD) for EMI-prone areas; configure IP/SCL for IEC 61850.

Ground chassis to protective earth; use ESD protection when inserting plug-in unit.

Power up gradually post-installation; verify self-supervision and conduct full commissioning (injection tests, logic checks) per ABB manual for the ABB REF615 HCFFAEAGANB2BAN1X.

Ensure ambient conditions stay within ratings; protect from dust/moisture.

Routine maintenance for the ABB REF615 HCFFAEAGANB2BAN1X sustains high availability:

Inspect weekly for dust on HMI/vents, cable integrity, or LED alarms (Ready green, no IRF).

Monitor daily HMI/SCADA for alarms, events, or supervision warnings; acknowledge and investigate.

Confirm time sync (SNTP/IRIG-B/PPS) and battery status for RTC/records.

Check power supply stability and comms links (GOOSE/MMS/Ethernet).

Download disturbance/event records periodically via PCM600; archive and clear buffers.

Test breaker operations or protection elements during scheduled outages.

Backup settings/firmware; apply only ABB-approved updates for the ABB REF615 HCFFAEAGANB2BAN1X.

These practices reduce downtime in MV networks.
