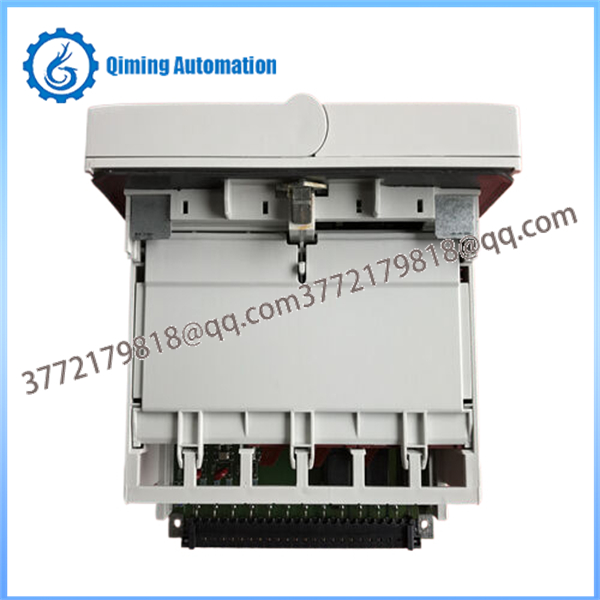

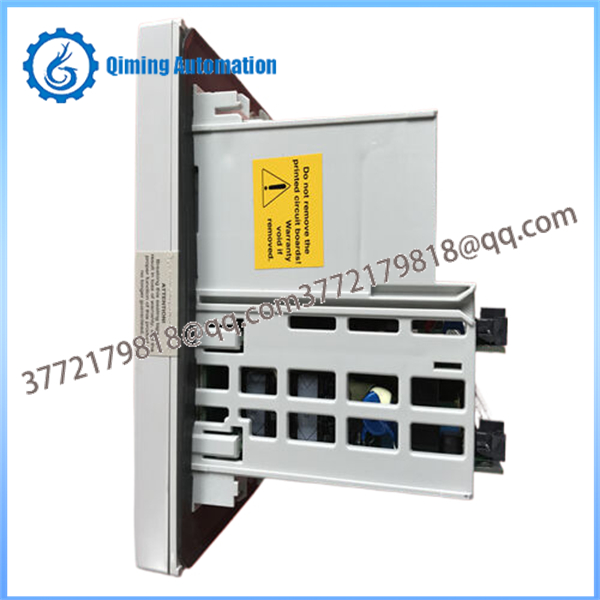

The ABB REF610C11LCLR is a microprocessor-based feeder protection relay designed for medium-voltage distribution systems. It belongs to ABB’s REF610 series of protective relays used in substations and industrial power networks to protect feeders, cables, and overhead lines.

The ABB REF610C11LCLR integrates protection, monitoring, control, and communication functions into a compact device. It analyzes current and voltage signals from transformers and quickly isolates faults such as overcurrent or earth faults. The ABB REF610C11LCLR is widely used in power plants, substations, and industrial distribution networks to ensure system stability and equipment safety.

In a medium-voltage substation feeder panel, the ABB REF610C11LCLR monitors the electrical feeder connected to distribution lines.

When abnormal conditions occur, such as a short circuit or ground fault, the ABB REF610C11LCLR detects the fault through CT and VT signals and sends a trip command to the circuit breaker. This action isolates the faulty section quickly and protects the rest of the power network.

The ABB REF610C11LCLR can also transmit event data and alarm information to supervisory systems through communication protocols, enabling centralized monitoring and faster troubleshooting.

Model ABB REF610C11LCLR

Product Type Feeder Protection Relay

Power Supply 24–265 V AC/DC

Power Consumption Approx. 10 W

Communication Interfaces Ethernet, RS-485

Communication Protocols IEC 61850, DNP3, Modbus, SPA

Protection Functions Overcurrent, earth-fault, voltage protection

Sampling Rate Up to 8 kHz disturbance recording

Operating Temperature −25°C to +55°C

Mounting 19-inch rack / panel mounting

Weight Approx. 4.5 kg

The ABB REF610C11LCLR typically provides several important protection features:

Overcurrent protection (50/51)

Earth-fault protection (50N/51N)

Directional overcurrent protection (67)

Thermal overload protection (49)

Breaker failure protection (50BF)

Auto-reclosing function (79)

Sync-check function (25)

These functions help maintain safe operation of electrical distribution systems.

Power Preparation

Provide a stable auxiliary power supply for the ABB REF610C11LCLR.

Installation

Mount the ABB REF610C11LCLR on the switchgear panel or rack.

Signal Wiring

Connect current transformers (CT), voltage transformers (VT), and digital inputs to the ABB REF610C11LCLR.

Parameter Configuration

Configure protection settings, communication protocols, and logic parameters through ABB configuration tools.

Testing and Commissioning

Perform functional tests to confirm that the ABB REF610C11LCLR correctly detects faults and controls the circuit breaker.

Disconnect all power sources before installing the ABB REF610C11LCLR.

Ensure CT and VT polarity is correctly connected.

Install the ABB REF610C11LCLR in a clean, ventilated control panel.

Use shielded communication cables to reduce electromagnetic interference.

Verify protection settings before putting the ABB REF610C11LCLR into operation.

Visual inspection: Check the ABB REF610C11LCLR for loose wiring or damage.

Event log monitoring: Review stored fault and event records regularly.

Communication check: Confirm reliable communication with SCADA systems.

Functional testing: Periodically test protection functions and breaker trip signals.

Firmware updates: Apply recommended updates to maintain system reliability.
