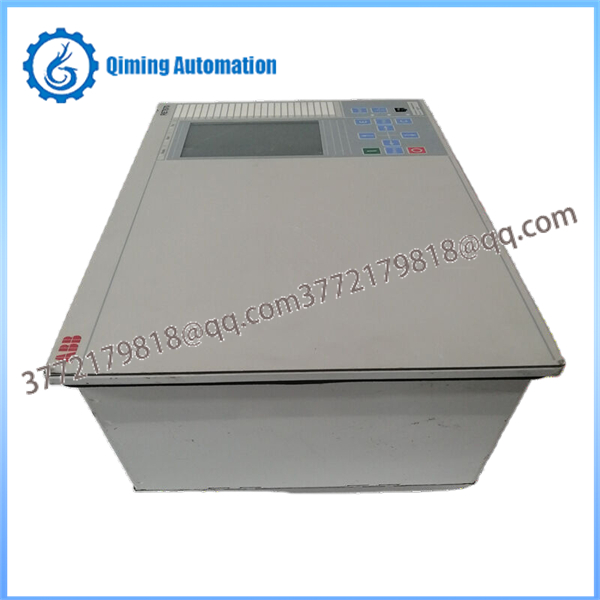

The ABB RET670 1MRK004816-AC is a comprehensive transformer protection and control IED (Intelligent Electronic Device) from ABB's Relion® 670 series, designed for reliable safeguarding of power transformers and shunt reactors in transmission and distribution networks. The ABB RET670 1MRK004816-AC provides advanced differential protection, overcurrent, voltage-based functions, and automation capabilities for high-availability substation applications.

Model RET670

Order Code 1MRK004816-AC

Product Type Transformer protection IED, Relion® 670 series

Key Functions Differential (87T), overcurrent, restricted earth fault, thermal overload, voltage/frequency protection

Mounting 1/2, 3/4, or 1/1 19" rack/panel, 6U height (266 mm), IP54 front

Power Supply 24-60 V DC or 80-265 V AC/DC variants

Communication IEC 61850, IEC 60870-5-103/104, DNP3, Modbus, IRIG-B

Binary I/O Expandable modules (up to 100+ inputs/outputs)

HMI Graphical display with navigation keys

Operating Temp -25°C to +55°C (IEC Class E2)

Mechanical mounting

Secure the ABB RET670 1MRK004816-AC in the substation rack using supplied angles or plates, ensuring side-by-side IP20 or case-by-case IP54 rating.

Wiring connections

Connect CT/VT circuits, binary I/O, and power to rear female connectors before plugging into the ABB RET670 1MRK004816-AC male parts; use rigid/flexible conductors.

Communication setup

Wire Ethernet ports and serial interfaces on the ABB RET670 1MRK004816-AC to the station network; configure IP addresses via front HMI or PCM600 tool.

Configuration download

Use PCM600 software to load protection settings into the ABB RET670 1MRK004816-AC, verifying hardware compatibility and function blocks.

Testing and energization

Perform secondary injection tests on the ABB RET670 1MRK004816-AC, check external circuitry, then energize with primary power while monitoring disturbances.

Fasten mounting angles carefully to the ABB RET670 1MRK004816-AC sides with kit screws to avoid vibration issues.

Complete all wiring to female connectors before mating with the ABB RET670 1MRK004816-AC to prevent live insertion damage.

Mount antennas (if GPS/IRIG-B used) clear of reflective surfaces for the ABB RET670 1MRK004816-AC to ensure timing accuracy.

Verify CT polarity and ratios before energizing the ABB RET670 1MRK004816-AC to prevent incorrect differential operation.

Protect the ABB RET670 1MRK004816-AC rear I/O from dust/moisture during installation in harsh substation conditions.

Monthly: Check ABB RET670 1MRK004816-AC HMI for self-diagnostic alarms and event logs; clear disturbances if resolved.

Quarterly: Inspect terminals on the ABB RET670 1MRK004816-AC for corrosion; test binary I/O continuity.

Annually: Recalibrate protection functions of the ABB RET670 1MRK004816-AC via secondary injection per site procedures.

Verify communication health to the ABB RET670 1MRK004816-AC via SCADA pings and GOOSE message status.

Replace backup battery in the ABB RET670 1MRK004816-AC every 5-7 years to maintain disturbance recorder data.
