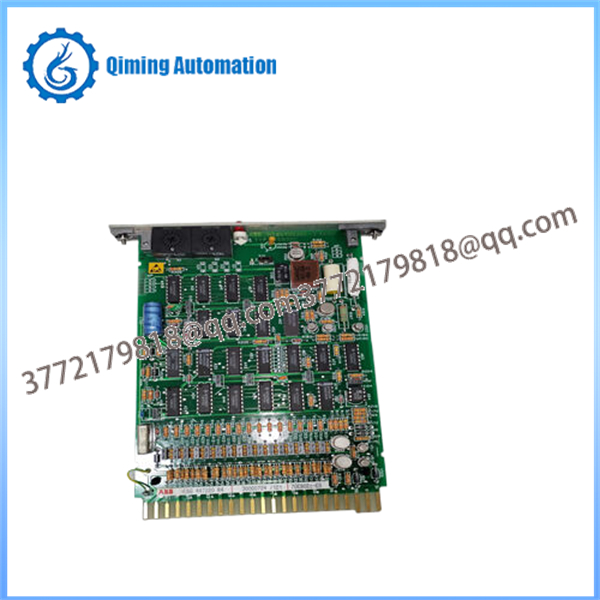

The ABB 70EB02C-ES is a versatile industrial automation module that serves multiple roles across ABB's control system portfolio. Primarily recognized as a high-speed digital input module for the Procontrol P13 series, the ABB 70EB02C-ES also functions as an I/O expansion module for AC 800M controllers and as a digital output module within the S800 I/O platform . This multi-role capability makes the ABB 70EB02C-ES an exceptionally flexible component for distributed control systems (DCS), programmable logic controllers (PLC), and industrial automation networks. This guide provides comprehensive technical specifications, application examples, installation precautions, and maintenance procedures for the ABB 70EB02C-ES.

Model Number ABB 70EB02C-ES

Full Order Code HESG447220R4

Product Type Digital Input / I/O Expansion Module (multi-role)

Series Procontrol P13 / AC 800M / S800 (platform dependent)

Input Channels 16 digital inputs (24V DC)

Input Current 2mA per channel

Response Time 0.5 microseconds (μs)

Electrical Isolation Up to 1500V DC

Output Channels (Relay Version) 8 channels (Form C / SPDT, 250V AC / 2A)

Communication DeviceNet slave / CS31 / AC 800M backplane bus

Power Supply 24V DC ±10%

Operating Temperature -25°C to +60°C (or -40°C to +70°C for S800 version)

Protection Rating IP20

Mounting DIN rail (TH35-7.5/TH35-15)

Weight 0.50 lbs (approx. 0.23 kg)

Compliance CE, UL, IEC 61000 EMC standards

High-Speed Signal Processing – The ABB 70EB02C-ES delivers an exceptionally fast response time of 0.5 microseconds, enabling real-time monitoring and control of field devices for time-critical applications .

16 Digital Input Channels – Equipped with 16 independent 24V DC input channels, the ABB 70EB02C-ES efficiently monitors switches, sensors, limit switches, and other binary field devices .

Optical Isolation Technology – Features built-in optocoupler isolation (up to 1500V DC) that protects the control system from electrical noise, surges, and ground loops, ensuring reliable operation in harsh industrial environments .

LED Status Indicators – Individual per-channel LEDs provide instant visual feedback on input states, dramatically improving troubleshooting efficiency and reducing system downtime .

Multi-Platform Compatibility – The ABB 70EB02C-ES integrates seamlessly with Procontrol P13 PLC systems, AC 800M controllers (via TB540/TB550 backplane expansion), and S800 distributed I/O platforms .

DIN Rail Mounting – Compact form factor with standard DIN rail installation allows the ABB 70EB02C-ES to be easily integrated into new or existing control cabinets .

Hot-Swappable (S800 Configuration) – When used with TU8xx series base units, the ABB 70EB02C-ES supports online replacement without powering down the system, maximizing operational availability .

Diagnostic Capabilities – Advanced self-diagnostics with fault reporting via LED patterns and software integration enable predictive maintenance and rapid fault localization .

ABB 70EB02C-ES Primary model – High-speed digital input / expansion module (this guide)

ABB 70EB04C-ES Higher-density or alternative contact configuration version of the 70EB02C-ES for applications requiring more channels or different current ratings

ABB 70EB01C-ES Earlier generation relay output module; the 70EB02C-ES is the enhanced upgrade with improved diagnostics and environmental specifications

ABB 70AA01 Local I/O adapter for AC 800M non-expansion racks; complements the 70EB02C-ES for local I/O applications

ABB TK801 Specialized shielded extension cable for connecting two 70EB02C-ES modules in master-expansion configuration (max length 10 meters)

ABB TB540 / TB540A / TB550 I/O backplane base units compatible with the 70EB02C-ES for AC 800M expansion applications

ABB TU842 / TU845 S800 series terminal bases specifically designed for the 70EB02C-ES; required for wiring and hot-swap functionality

ABB CI854 / CI865 S800 fieldbus adapters (Profibus-DP, Ethernet) that connect the 70EB02C-ES I/O station to the main controller

ABB PM864AK01 / UFC921A101 AC 800M CPUs commonly paired with the 70EB02C-ES for large-scale expansion systems

ABB 70DI03C-ES 16-channel digital input module for S800; frequently used alongside the 70EB02C-ES to complete I/O configurations

ABB 70AO91 Analog output module; pairs with the 70EB02C-ES for mixed signal applications in Procontrol P13 systems

ABB AC 800M Controller (PM861/PM863) Central processing units executing control logic using I/O data from 70EB02C-ES expansion modules

Industrial Automation & Machine Control – The ABB 70EB02C-ES monitors limit switches, pushbuttons, and proximity sensors on production machinery, packaging lines, and material handling equipment .

Power Generation & Distribution – Used in power plant monitoring systems, boiler control, turbine auxiliary systems, and switchgear monitoring for critical infrastructure .

Process Control (Chemical & Petrochemical) – Provides digital input monitoring for valve position feedback, pump status, tank level switches, and emergency shutdown (ESD) systems in hazardous environments .

Water & Wastewater Treatment – The ABB 70EB02C-ES monitors pump run signals, level switches, flow meter pulses, and valve positions across treatment plants and pumping stations .

Building Automation & HVAC – Integrates with environmental sensors, occupancy detectors, and equipment status contacts for smart building management systems .

Transportation Systems – Controls traffic signals, railway crossing gates, conveyor systems, and baggage handling equipment .

Oil & Gas – Monitors wellhead controls, pipeline valve status, compressor units, and safety interlocks in upstream and midstream operations .

District Heating & Cooling – The ABB 70EB02C-ES centralizes I/O for heat exchanger stations, circulation pumps, and temperature monitoring points

De-energize the system – Isolate 24V DC power to the I/O station or control cabinet before handling the ABB 70EB02C-ES.

Mount the base unit (if applicable) – For S800 configurations, install the appropriate TU8xx series base unit on DIN rail TH35-7.5 or TH35-15 .

Install the module – Align the ABB 70EB02C-ES with the guide rails on the base unit or backplane and press firmly until the locking mechanism engages with an audible "click".

Configure device address (DeviceNet version) – Set the node address (0-63) using the rotary DIP switches on the ABB 70EB02C-ES; no software configuration required .

Connect field wiring – Use shielded twisted-pair cables (0.08 – 1.5 mm² cross-section) and connect sensors/switches to the removable screw terminal block .

Apply power – Connect 24V DC supply (±10%) to the ABB 70EB02C-ES and verify the power LED illuminates.

Configure in software – Using ABB Control Builder M, Automation Builder, or 800xA engineering tools, add the ABB 70EB02C-ES to the system configuration and assign I/O addresses .

Verify operation – Monitor input states via software and check per-channel LED indicators; green indicates active input, off indicates inactive.

Enable expansion (AC 800M configuration) – In Control Builder M, enable the "Extended Rack" option and assign a unique rack address when using the ABB 70EB02C-ES as a backplane expansion module .

ESD protection required – The ABB 70EB02C-ES contains sensitive electronic components; always use grounded wrist straps during handling.

Use shielded cables for analog signals – For applications involving analog sensors or long cable runs (exceeding 10 meters), always use shielded twisted-pair cable to prevent electromagnetic interference .

Maintain proper grounding – Connect the module's ground terminal to the system's protective earth; ensure both master and expansion racks share a common ground reference when using the ABB 70EB02C-ES in expansion configurations .

Cable length limitations – For AC 800M expansion using TK801 cables, maximum distance is 10 meters; bending radius must exceed 50mm .

Avoid high-temperature areas – Maintain ambient temperature between -25°C and +60°C (or -40°C to +70°C for S800 version); do not install the ABB 70EB02C-ES near heat sources or in direct sunlight .

Terminal block torque – Tighten screw terminals to manufacturer specification (typically 0.5-0.6 Nm); loose connections cause intermittent signal issues.

Do not hot-swap in all configurations – While the S800 version of the ABB 70EB02C-ES supports hot-swapping with TU8xx bases, the Procontrol P13 version requires power-down before insertion or removal .

Cable segregation – Route digital input signal cables separately from AC power cables (maintain >10cm separation) and high-voltage motor leads (>30cm) to minimize noise coupling.

Add suppression for inductive loads – When the ABB 70EB02C-ES is used in relay output mode, connect flyback diodes (for DC loads) or RC snubbers (for AC loads) across inductive devices to protect relay contacts .

Terminating resistors for DeviceNet – When using the ABB 70EB02C-ES as a DeviceNet slave, install 120Ω terminating resistors at both ends of the trunk line .

Interval Maintenance Task

Weekly Visual inspection – Check the ABB 70EB02C-ES for any LED fault indicators; normal operation shows power LED illuminated and input LEDs responding to field device state changes

Monthly Connection verification – Ensure all terminal block screws remain tight; loose connections can cause intermittent signal loss or false readings; verify cable integrity for signs of wear or damage

Quarterly Signal verification – Use a calibrated signal source to test each input channel of the ABB 70EB02C-ES; compare LED response against applied signals; for critical applications, log results to track degradation over time

Bi-annually Cleaning – Remove dust accumulation from the ABB 70EB02C-ES using low-pressure compressed air (≤5 bar); inspect for corrosion on terminals, particularly in humid or chemically aggressive environments; clean module gold-plated edge connectors with isopropyl alcohol if required

Annually Comprehensive function test – Perform full channel-by-channel verification of all 16 inputs on the ABB 70EB02C-ES; check isolation resistance (should exceed 10MΩ at 500V DC) and response time compliance with 0.5μs specification

As needed Replace the ABB 70EB02C-ES if diagnostic LEDs indicate persistent faults, input channels fail to respond correctly, communication errors appear in system logs, or physical damage (cracks, burns, corrosion) is visible

Pro Tip: Record all maintenance activities and calibration data for each ABB 70EB02C-ES in your computerized maintenance management system (CMMS). Under normal operating conditions (0-40°C, clean, dry environment with stable 24V DC power), the typical service life of the ABB 70EB02C-ES exceeds 10-15 years. For applications with temperature extremes, high vibration, or frequent switching cycles (relay output version), schedule semi-annual inspections and consider proactive replacement at 7-10 years.

Advanced Diagnostics: When integrated with ABB 800xA or Control Builder M software, the ABB 70EB02C-ES provides detailed diagnostic information including:

Per-channel signal status and history

Internal temperature monitoring

Supply voltage monitoring (24V ±10% tolerance)

Communication error counters

Module health status (Good / Warning / Failed)

If the ABB 70EB02C-ES reports a "red" fault LED, immediately consult the system log for specific error codes and follow ABB's published troubleshooting procedures .

ABB 1KGT011900R0001

ABB 3BHE006412R0101 UFC762AE101

ABB S-093H 3BHB009885R0004

ABB CI522A 3BSE018283R1

ABB DSAI133A 3BSE018290R1

ABB PM511V08 3BSE011180R1

ABB PPD539A102 3BHE039770R0102

ABB SPIET800

ABB SPASI23

ABB SPBRC400
