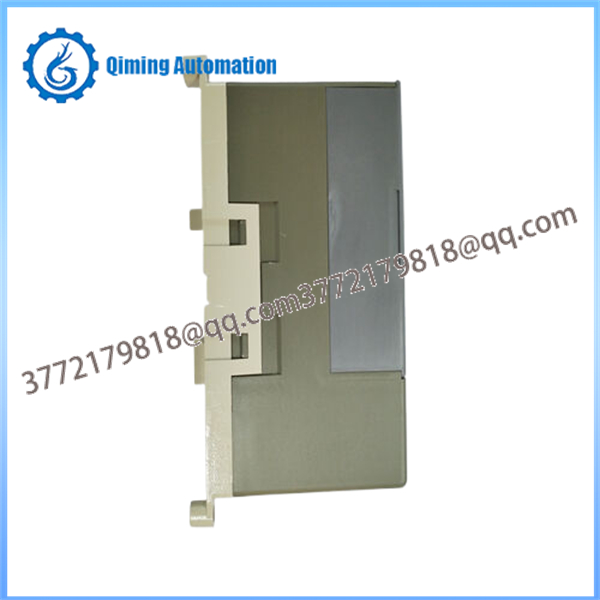

The ABB 07AI91 is a high-performance analog input module designed for the ABB Advant Controller 31 (AC31) and S500 I/O platform . As a CS31 system bus remote module, the ABB 07AI91 serves as the critical interface between field sensors and the PLC controller, converting analog signals from thermocouples, RTDs, and transmitters into digital format for processing . With 8 configurable input channels and support for multiple signal types, the ABB 07AI91 delivers reliable, high-precision measurement for demanding industrial automation environments.

07AI91

Technical Parameters ：

Model Number ABB 07AI91

Full Order Code GJR5251600R0202

Product Type Analog Input Module

Input Channels 8 (configurable in pairs)

Input Signal Types Voltage: ±10V, ±5V, ±500mV, ±50mV; Current: 0-20mA, 4-20mA; Thermocouple: J, K, S; RTD: Pt100, Pt1000

Resolution 12-bit + sign

Accuracy ±0.5% full scale

Conversion Time 30-150ms (configurable)

Power Supply 24V DC

Communication Interface RS-485 / CS31 slave

Operating Temperature 0°C to +55°C

Storage Temperature -25°C to +75°C

Protection Rating IP20

Dimensions (H x W x D) 140 x 120 x 85 mm

Weight 0.48 kg

Wire Cross-section 0.08 … 1.5 mm²

Mounting DIN rail (TH35-7.5/TH35-15)

07AI91

Key Features：

8 Configurable Input Channels – The ABB 07AI91 offers 8 analog inputs that can be configured in pairs for different sensor types, providing flexibility for mixed-signal applications .

Multi-Signal Support – Accepts voltage (±10V to ±50mV), current (0-20mA/4-20mA), thermocouple (J, K, S), and RTD (Pt100, Pt1000) inputs, eliminating the need for multiple specialized modules .

Built-in Sensor Linearization – Features integrated linearization for thermocouples and RTDs, delivering direct temperature readings without additional programming .

High Measurement Resolution – Provides 12-bit plus sign resolution (4096 steps), ensuring precise analog signal conversion for critical process variables .

CS31 System Integration – Operates as a CS31 slave on RS-485, enabling seamless connection to ABB AC31 and AC500 controllers with electrical isolation for safety .

Compact DIN Rail Design – The space-saving 140 x 120 x 85 mm form factor of the ABB 07AI91 allows easy installation in crowded control cabinets .

Removable Terminals – Features pluggable screw terminals for simplified wiring and quick module replacement without rewiring .

Related Model Description：

ABB 07AO91 8-channel analog output counterpart to the ABB 07AI91; used for commanding control valves and VFDs

ABB 07DI91 Digital input module for S500 platform; complements the ABB 07AI91 for mixed I/O applications

ABB 07DO91 Digital output module; pairs with the ABB 07AI91 for complete control solutions

ABB CI871 Communication interface module linking S500 I/O stations (housing the ABB 07AI91) to PROFIBUS or MODBUS networks

ABB S500 Base Units (BU01/BU02) Physical mounting racks providing power and backplane communication for the ABB 07AI91 and other I/O modules

ABB FTA (Field Terminal Adapter) Removable terminal block providing screw terminals for field wiring to the ABB 07AI91

ABB AC 800M Controllers (PM861/PM863) Central processing units executing control logic using measurement data from ABB 07AI91 modules

Application Areas：

Temperature Monitoring – The ABB 07AI91 reads thermocouple and RTD signals in furnaces, ovens, cooling systems, and chemical reactors .

Pressure Measurement – Interfaces with 4-20mA pressure transmitters for monitoring pipeline, tank, and vessel pressure levels .

Flow and Level Sensing – Processes signals from flow meters and level sensors to control fluid dynamics in process applications .

Process Control Industries – Provides critical analog data for PID loop control in chemical, pharmaceutical, and petrochemical plants .

Energy Management – Monitors voltage and current signals in switchgear and power distribution systems .

Manufacturing Automation – Enables precision measurement in automotive, electronics, and food packaging production lines .

Water and Wastewater Treatment – Collects sensor data for pump control, level monitoring, and treatment chemical dosing.

Operation Steps (for installation and replacement)：

De-energize the system – Isolate 24V DC power to the I/O station before handling the ABB 07AI91.

Mount the base unit – Install the S500 base unit (BU01 or BU02) on DIN rail TH35-7.5 or TH35-15 .

Install the module – Align the ABB 07AI91 with the guide rails on the base unit and press firmly until latched.

Configure input types – Set coding switches under the housing cover to configure each channel pair for the desired signal type (voltage, current, thermocouple, or RTD) .

Connect field wiring – Use shielded cables (max 2.5mm²) and connect sensors to the removable terminal block .

Apply power – Connect 24V DC supply to the ABB 07AI91 and verify power LED illuminates.

Configure in software – Using ABB Control Builder or Automation Builder, add the ABB 07AI91 to the CS31 network configuration.

Verify operation – Monitor input values and confirm proper signal conversion; check diagnostic LEDs for fault conditions.

Installation Precautions：

ESD protection required – The ABB 07AI91 contains sensitive electronic components; use grounded wrist straps during handling.

Use shielded cables – For analog signals, especially thermocouple and low-level voltage inputs, always use shielded twisted-pair cable to prevent electromagnetic interference .

Maximum cable length – For Pt100 sensors, limit cable length to 200 meters with 0.5mm² shielded cable .

External shunt required – For 4-20mA current inputs, connect an external 250Ω shunt resistor (not included with the ABB 07AI91) .

Avoid high-temperature areas – Maintain ambient temperature between 0°C and 55°C; do not install the ABB 07AI91 near heat sources .

Proper grounding – Connect the module’s ground terminal to the system’s protective earth to avoid ground loops.

Do not hot-swap – Always de-energize the I/O station before inserting or removing the ABB 07AI91.

Cable segregation – Route analog signal cables separately from AC power and digital I/O wiring to minimize noise coupling.

Daily Maintenance Content：

Interval Maintenance Task

Weekly Visual inspection – Check the ABB 07AI91 for any LED fault indicators; normal operation shows power LED illuminated

Monthly Connection verification – Ensure all terminal block screws are tight; loose connections cause signal drift

Quarterly Signal verification – Use a calibrated signal source to test each channel of the ABB 07AI91 and compare readings against specifications (±0.5% tolerance)

Bi-annually Cleaning – Remove dust accumulation from the ABB 07AI91 using low-pressure compressed air; inspect for corrosion on terminals

Annually Calibration check – Perform full-scale accuracy test on all 8 channels; recalibrate or replace the ABB 07AI91 if readings exceed 1% error

As needed Replace the ABB 07AI91 if diagnostic LEDs indicate persistent faults, sensor readings are unstable, or communication errors occur

Pro tip: Record all calibration data for each ABB 07AI91 in your maintenance management system. Under normal operating conditions (0-40°C, clean environment), the typical service life exceeds 10 years. For applications with temperature extremes or high vibration, schedule semi-annual inspections.
