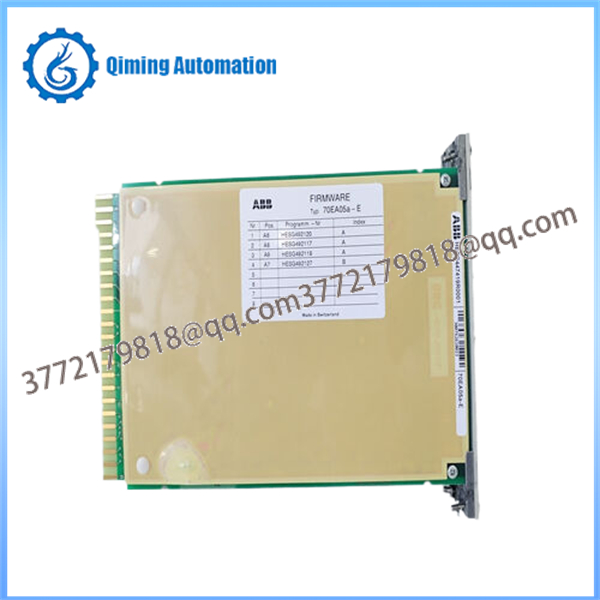

The ABB70EA05A-E (also known by part number HESG447419R0001 or HESG447419R1) is a robust analog input module designed for the ABB Procontrol P13 distributed control system (DCS). This module acquires and processes analog field signals from sensors and transmitters, converting them into digital values for use in process control, monitoring, and protection applications.

As a legacy component in the Procontrol P13 I/O family, the 70EA05A-E belongs to the earlier generation of input modules. It has been largely superseded by the modern 70AI05a in current Procontrol P13 installations, which offers improved performance while maintaining compatibility for one-to-one replacements or system extensions. The module provides reliable signal conditioning and high noise immunity, making it suitable for integration into existing Procontrol P13 racks and local bus architectures.

Engineers commonly use the 70EA05A-E in brownfield retrofits, spare part stocking, and maintenance of operational Procontrol P13 systems, particularly where full system migration is not immediately feasible. Its design emphasizes durability in power generation and heavy process environments, with galvanic isolation and EMC protection to withstand electrical disturbances typical of industrial plants. Compared to lower-density predecessors or basic voltage/current modules, it balances channel count with isolation and diagnostic capabilities, offering a practical choice for cost-effective upgrades in established installations.

The 70EA05A-E performs accurate analog-to-digital conversion and signal processing with the following key capabilities:

Analog Signal Acquisition: Supports multiple voltage and current input ranges, including 0–10 V, ±10 V, 4–20 mA, and related signals from field transmitters.

Channel Isolation and Noise Rejection: Provides galvanic isolation between channels and to the system logic/backplane, along with strong common-mode rejection for stable measurements in noisy substation or plant environments.

High-Resolution Conversion: Utilizes successive approximation or equivalent A/D technology (typically 12–16 bit effective resolution depending on configuration) for precise data representation.

Built-in Diagnostics: Includes fault detection for over/under-range conditions, sensor faults, and communication issues, with LED indicators and alarm outputs via the local bus.

Configuration Flexibility: Parameters such as ranges, filtering, and scaling are set via the P13 Configurator tool or front-panel interface (EEPROM-based, no hardware jumpers in most cases).

Local Bus Integration: Communicates directly with Procontrol P13 processors (e.g., 70PR03 or equivalent) over the system local bus, supporting both normal and special address ranges.

EMC-Enhanced Design: The “-E” suffix indicates enhanced electromagnetic compatibility compliance, improving performance in harsh industrial settings.

These features ensure reliable signal transfer from the plant floor to the control logic, supporting regulatory control loops, monitoring, and sequence-of-events recording in Procontrol P13 applications.

Key specifications for the ABB 70EA05A-E (representative values based on Procontrol P13 analog input family; exact performance may vary slightly by firmware and configuration):

Number of Channels: 8 (differential or isolated configurations) or up to 12 in some legacy descriptions; typical voltage/current focused variant.

Supported Input Types: Voltage (±10 V, 0–10 V, ±5 V), Current (0–20 mA, 4–20 mA), with possible extension to mV or resistance signals in related variants.

Resolution: 16-bit internal conversion (effective 12–15 bits on local bus depending on module generation).

Accuracy: Typically ±0.1% of span.

Isolation: 500 V channel-to-channel; 1000–1500 V channel-to-ground/logic/backplane.

Common-Mode Rejection: >90–120 dB at 50/60 Hz.

Update Rate: 5–10 ms for all channels (depending on conversion time and bus loading).

Power Supply: 24 V DC via P13 rack (operating range approx. 19.5–30 V DC).

Power Consumption: Approx. 2–5 W typical (module-dependent).

Operating Temperature: 0 °C to +55/60 °C (extended variants to –25 °C to +70 °C).

Storage Temperature: –40 °C to +85 °C.

Dimensions and Weight: Standard P13 module size (approx. 25 × 220 × 150 mm); net weight approx. 0.45–0.5 kg.

Mounting: Plug-in into Procontrol P13 19-inch rack; single-slot footprint.

Connectors: Pluggable screw terminals for field wiring.

Configuration is performed using the P13 Configurator software. For precise values in a specific installation, consult the module’s hardware manual and system release documentation, as the 70EA05A-E is often treated as a direct predecessor to the 70AI05a (6 isolated voltage/current channels with 20-bit internal sigma-delta conversion and 1000 Vrms isolation).

The 70EA05A-E is deployed in process industries requiring dependable analog signal acquisition within Procontrol P13 DCS:

Power Generation: Monitoring of boiler parameters, turbine auxiliaries, generator signals, and auxiliary systems in thermal, combined-cycle, or hydro plants.

Petrochemical and Chemical: Acquisition of pressure, flow, level, and temperature transmitter signals in reactors, distillation columns, and storage facilities.

Metals and Pulp & Paper: Process variables in rolling mills, digesters, and paper machines.

Water Treatment and Cement: Pump, valve, and environmental monitoring loops.

General Manufacturing: Integration in hybrid automation setups combining motor control centers with process oversight.

Typical scenarios include expansion of existing Procontrol P13 racks, replacement of failed legacy modules (e.g., earlier 70EA series), and maintenance spares for plants with long service life. For new high-density requirements, the 70AI02a (16 channels) or 70AI05a successor is often preferred. In safety-related loops (up to SIL 2/3 in qualified configurations), pair with appropriate redundant setups and certified Procontrol P13 processors.

Mounting: Insert the module into the designated slot of the Procontrol P13 rack. Ensure proper seating and locking to maintain backplane contact.

Field Wiring: Use shielded cables for analog signals. Connect to pluggable terminals observing polarity and grounding practices. Group channels by signal type to preserve isolation.

Power and Bus Connection: Supply 24 V DC through the rack backplane. Verify local bus addressing and avoid address conflicts with other I/O modules.

Configuration: Use the P13 Configurator tool via front-panel RS232/USB interface. Download parameters to the onboard EEPROM and perform loop checks during commissioning.

Safety: Only qualified personnel should handle installation. De-energize the rack section where possible. Observe ESD precautions and follow ABB safety instructions for DCS hardware.

Always refer to the Procontrol P13 I/O Modules datasheet (e.g., 2VAA007640) and project-specific drawings for terminal assignments, torque values, and wiring diagrams.

The 70EA05A-E is engineered for long-term reliability with minimal routine maintenance:

Routine Inspections: Periodically check LED status indicators for channel alarms or module faults. Verify terminal tightness and cable condition. Clean dust from the module exterior when the system is powered down.

Diagnostics: Monitor alarms and disturbance bits via the Procontrol P13 operator stations or engineering tools. Use built-in fault registers for channel-specific diagnostics (over-range, under-range, A/D issues).

Configuration Backup: Maintain current parameter backups in the P13 Configurator for quick restoration after module replacement.

No Signal or Incorrect Reading: Verify field transmitter output, wiring continuity, polarity, and input range configuration. Check for open loops or sensor failure.

Alarm or Disturbance LED Active: Review channel diagnostics for over/under-range or A/D converter faults. Inspect shielding and grounding to rule out noise.

Communication Failure on Local Bus: Confirm module seating, backplane power, and address settings. Swap with a known-good spare to isolate the issue.

Inaccurate or Noisy Measurements: Adjust software filtering (50/60 Hz notch or low-pass) or check for ground potential differences. Recalibrate if span drift is suspected.

For persistent problems, download event logs and contact ABB support with the system version, module revision, and fault descriptions. Stocking spare 70EA05A-E or equivalent 70AI05a modules is recommended for critical loops to minimize downtime.

The ABB 70EA05A-E analog input module continues to deliver dependable performance in legacy Procontrol P13 systems, supporting accurate process variable acquisition across demanding industrial applications. Its isolation, diagnostics, and compatibility with the P13 architecture provide long-term value for installed bases. For migration planning, spare part strategies, or detailed engineering, always consult the latest Procontrol P13 documentation, ABB library datasheets, and authorized support channels.
