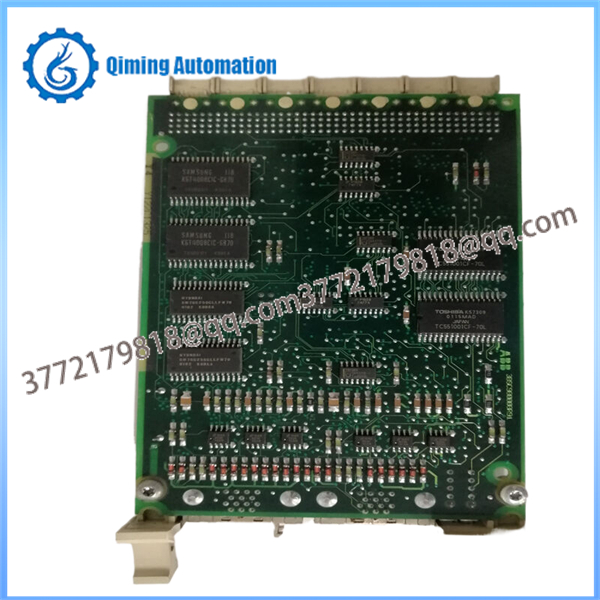

The ABB CI522A 3BSE018283R1 AF100 interface module provides a reliable communication link between ABB controllers and S800 I/O stations in industrial automation systems. The CI522A 3BSE018283R1 is designed for redundant communication on the Advant Fieldbus 100 network, improving system availability and stability in process control and monitoring applications.

Model CI522A

Order Code 3BSE018283R1

Function AF100 interface module, interface to S800 I/O for redundant communication.

Protocol Advant Fieldbus 100 (AF 100), 1 Mbps transmission rate.

Typical Use Communication between ABB control system and AF100 field devices / S800 I/O.

Power Supply 24 V DC (typical for this module family).

Operating Temp. Approx. -40 °C to +85 °C (industrial range).

Max. Devices Up to 31 connected devices on the AF100 segment (bus limit).

Mounting Module installation with S800 I/O/interface base (cabinet mounting).!

Preparation and verification

Confirm that the delivered module model is ABB CI522A 3BSE018283R1 and check the label and order code.

Inspect the ABB CI522A 3BSE018283R1 for visible damage, bent pins, or contamination before installation.

Mechanical installation

Mount the ABB CI522A 3BSE018283R1 into the designated slot or base in the control cabinet according to the system layout.

Ensure the module is firmly seated and locked to avoid vibrationrelated contact issues.

Electrical and network wiring

Connect the 24 V DC power supply and fieldbus wiring to the ABB CI522A 3BSE018283R1 following the wiring diagram.

Connect AF100 bus cables with correct polarity and shielding, and verify termination settings at the ends of the AF100 segment.

Addressing and configuration

Set the node address or configuration parameters for the ABB CI522A 3BSE018283R1 in the engineering tool, according to the system design.

Download the configuration and check that the module appears correctly in the controller’s hardware structure.

Commissioning and testing

Power up the system and observe status LEDs on the ABB CI522A 3BSE018283R1 for normal operation (no error indication).

Perform communication tests with S800 I/O or other AF100 devices to ensure stable data exchange and redundancy switchover (if configured).

Always disconnect power before inserting or removing the ABB CI522A 3BSE018283R1 to avoid damage to the module or the system.

Use proper ESD protection (wrist strap, grounded workbench) when handling the ABB CI522A 3BSE018283R1 to prevent electrostatic damage.

Ensure the AF100 cable type, shielding and grounding meet the requirements of the ABB CI522A 3BSE018283R1 and the overall fieldbus design.

Keep adequate ventilation space around the module and avoid installing the ABB CI522A 3BSE018283R1 near strong heat sources or highEMI devices.

Follow the control cabinet’s earthing and bonding rules so that the ABB CI522A 3BSE018283R1 operates in a lownoise, stable electrical environment.

Periodically check the status LEDs on the ABB CI522A 3BSE018283R1 to detect communication errors or fault conditions early.

Inspect the terminals and fieldbus connectors of the ABB CI522A 3BSE018283R1 for looseness, corrosion, or mechanical stress; retighten or replace as needed.

Clean dust from the control cabinet and around the ABB CI522A 3BSE018283R1 using dry compressed air to maintain good heat dissipation and contact quality.

Review diagnostic messages in the control system related to the ABB CI522A 3BSE018283R1 (bus errors, timeouts, redundancy switchover events) and record them for maintenance analysis.

During plant shutdowns, visually inspect the ABB CI522A 3BSE018283R1 for discoloration, cracks, or other signs of aging, and replace the module if reliability is in doubt.
