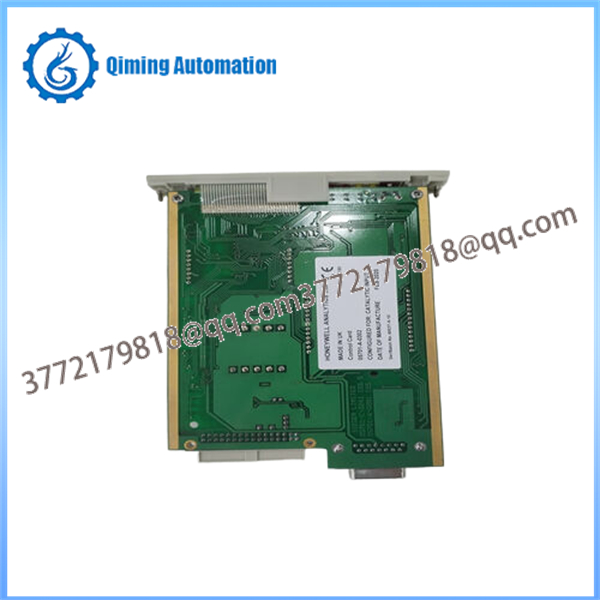

Honeywell Analytics 05701-A-0302 Catalytic Single-Channel Control Module

The05701-A-0302 executes safety critical processing for a single loop of explosive gas monitoring. Incoming micro-amp millivolt variations from the remote catalytic bead are initially stabilized by the embedded sensor drive board. This analog value is then digitalized and mapped against user-defined safety parameters held in on-board non-volatile EEPROM memory.

Front-panel interaction is intentionally streamlined: a single multi-function tactile push-button allows local technicians to reset latched field alarms or designate the card for systemic parameter interrogation when hooked to a master System 57 engineering module. If remote signal tracking is required, the card base architecture accepts an optional plug-in analog card to mirror readings to distributed SCADA or DCS backends.

• Autonomous Safety Integrity: Operating on its own independent microprocessor, each card ensures a failure on one gas channel will not disrupt or compromise monitoring on neighboring rack loops.

• Potentiometer-Free Stability: Employs pure digital software calibration via a master engineering card, entirely eliminating the mechanical component drift and vibration sensitivity common to older trimpot cards.

• Comprehensive Quad-Section LCD: The integrated front display combines a 25-segment analog arc for fast visual trending with a 4-character numeric display and a system message block for clear diagnostics.

• Three-Level Threat Warning: Features dedicated high-visibility LEDs for multi-tier gas alarms (A1, A2, A3) alongside immediate visual flags for card faults or diagnostic inhibit states.

• Dynamic Sensor Diagnostics: Continuously monitors the health of the connected catalytic bridge, running predictive routines to detect element poisoning, open circuits, or cell degradation before errors occur.

• Refineries and Petrochemical Racks: Provides wall or control-room cabinet monitoring for methane, butane, propane, and hydrogen vapors around process vessels.

• Industrial Wastewater Handling: Fits into central control rooms to monitor hazardous gas accumulation in enclosed wet wells and dry pumping structures.

• Automotive Spray Booths: Tracks solvent vapor spikes and explosive gas thresholds near paint-curing furnace installations.

• Marine and Offshore Platforms: Protects confined machinery bays, mud pits, and battery storage rooms from sudden hydrocarbon leaks.

Q1: What differentiates the 05701-A-0302 module from the closely related 05701-A-0301 card?

A: The primary difference lies in the input circuitry. The 05701-A-0301 is tailored to process standard active 3-wire or 2-wire 4-20mA transmitter loops. The 05701-A-0302 reviewed here is factory-outfitted with the 05701-A-0284 drive submodule, allowing it to interface directly with passive, raw catalytic bridge sensors (such as pellistors) without requiring an intermediate field transmitter.

Q2: Why is the front panel button unresponsive when I try to change an alarm setpoint?

A: By design, the front-panel button is restricted to basic operational tasks like clearing latched alarms or selecting the card for rack communication. To adjust deep parameters, calibration limits, or alarm configurations, you must plug the System 57 Engineering Card (05701-A-0361) into the rack's dedicated interface slot to authorize software adjustments.

Q3: Does a fault indication on the card automatically imply the control module has failed?

A: Not necessarily. The card's onboard diagnostics monitor the complete loop. A fault alert will activate for external anomalies, including open-circuit field wiring, a severed sensor cable, or a burned-out catalytic bead element, in addition to internal board safety checks.

Q4: How is the remote telemetry output handled if I need a 4-20mA signal sent to my DCS?

A: While the base 05701-A-0302 card is designed to drive the sensor and handle local alarms, you can attach an optional Analog Output Module (Part Number: 05701-A-0285) directly to the rear extension pins of the control card. This adds a dedicated 4-20mA current loop output for remote logging.
