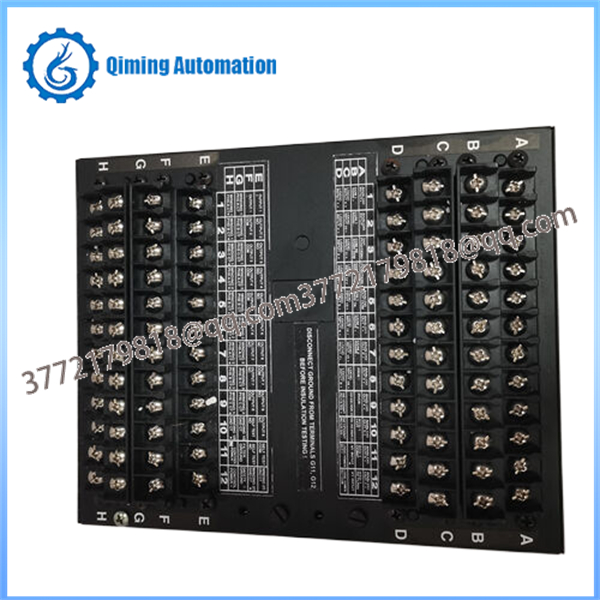

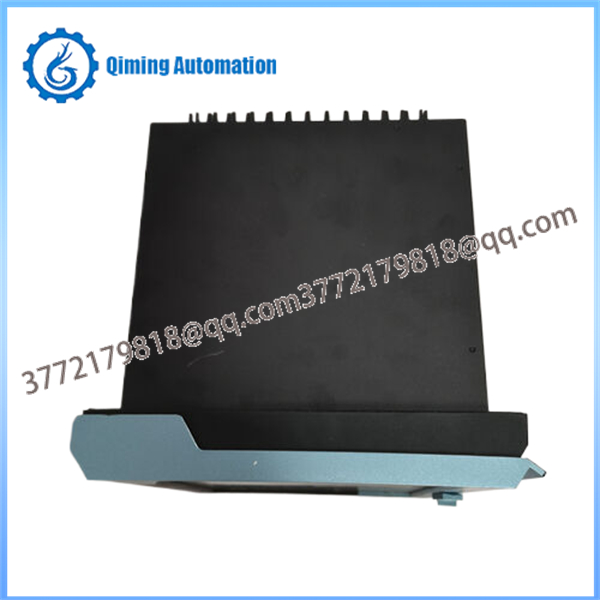

The GE SR745-W2-P1-G1-HI-A-L-R-E is a high-performance Multilin 745 Transformer Protection System relay from GE. As a microprocessor-based, multi-winding transformer management relay, the GE SR745-W2-P1-G1-HI-A-L-R-E delivers comprehensive primary and backup protection for small, medium, and large power transformers in substations and industrial applications.

The GE SR745-W2-P1-G1-HI-A-L-R-E supports two-winding configurations with percent differential protection, restricted ground fault, loss-of-life monitoring, and advanced elements including overcurrent, overfluxing (V/Hz), frequency, and thermal protection. Its draw-out chassis design, enhanced LCD display, analog I/O, and flexible communications make the GE SR745-W2-P1-G1-HI-A-L-R-E ideal for reliable transformer management, event recording, and integration into SCADA or DCS systems. Whether used as a replacement or in new installations, the GE SR745-W2-P1-G1-HI-A-L-R-E ensures maximum transformer availability and protection.

Model,GE SR745-W2-P1-G1-HI-A-L-R-E

Module Type,Multilin 745 Transformer Protection & Management Relay

Windings,Two windings per phase (W2)

Phase CT Inputs,1 A nominal (P1) for all windings

Ground CT Inputs,1 A nominal (G1)

Power Supply,HI range: 90–300 V DC / 70–265 V AC

Protection Elements,"Percent differential, restricted ground fault (R), loss-of-life (L), overcurrent (50/51), V/Hz, frequency, thermal, breaker failure"

Analog I/O,Included (A) – analog inputs and outputs

Display,Enhanced large LCD with improved keypad (E)

Communication,"RS232, RS485 (Modbus), optional Ethernet"

Operating Temperature,-40°C to +60°C (standard industrial range)

Humidity,"5% to 95% RH, non-condensing"

Mounting,Draw-out chassis with automatic CT shorting

Weight,Approx. 8–9 kg (including case)

Compatibility,"Medium and large power transformers, two-winding applications"

Operating the GE SR745-W2-P1-G1-HI-A-L-R-E follows standard Multilin relay procedures:

Apply control power (HI range) to the GE SR745-W2-P1-G1-HI-A-L-R-E and verify the enhanced LCD display powers up with self-diagnostic pass.

Connect to the relay using EnerVista 745 Setup software or the front-panel keypad to download the transformer-specific configuration settings.

Perform secondary injection testing to validate differential, restricted ground fault, overcurrent, and other protection elements of the GE SR745-W2-P1-G1-HI-A-L-R-E.

Monitor real-time metering (currents, voltages, power, transformer temperature, loss-of-life) and event records through the HMI or SCADA.

During normal operation, the GE SR745-W2-P1-G1-HI-A-L-R-E continuously protects the transformer and issues trip or alarm commands when required.

In the event of a fault, retrieve oscillography, event reports, and fault data stored in the GE SR745-W2-P1-G1-HI-A-L-R-E for analysis.

Periodically review self-test diagnostics and communication status to ensure healthy operation of the GE SR745-W2-P1-G1-HI-A-L-R-E.

Safe installation of the GE SR745-W2-P1-G1-HI-A-L-R-E is critical for protection integrity. Always isolate the transformer and apply lockout/tagout procedures before inserting or withdrawing the relay. Use the draw-out chassis: carefully insert the unit into the case, ensuring automatic CT shorting contacts engage properly. Wire CT and VT secondaries with correct polarity and phase sequence. Connect control power, digital/analog I/O, and communication ports (RS485/RS232) according to the wiring diagram with proper torque. Ground the case securely. After installing the GE SR745-W2-P1-G1-HI-A-L-R-E, perform insulation resistance checks, full secondary injection testing, and functional verification of all protection elements before energizing the transformer. Only qualified protection engineers trained on GE Multilin 745 relays should install or service the GE SR745-W2-P1-G1-HI-A-L-R-E.

Routine maintenance sustains the reliability of the GE SR745-W2-P1-G1-HI-A-L-R-E:

Visually inspect the front panel of the GE SR745-W2-P1-G1-HI-A-L-R-E for alarm indicators, display clarity, and dust accumulation.

Review event logs, fault reports, loss-of-life calculations, and self-test diagnostics daily via the LCD or EnerVista software.

Verify communication links (serial/Ethernet) to SCADA/DCS are stable.

Check control power voltage remains within the HI range specification.

Monitor operating temperature and ensure the environment stays within -40°C to +60°C.

Test trip and alarm contacts periodically during outages to confirm output functionality of the GE SR745-W2-P1-G1-HI-A-L-R-E.

Record any anomalies and schedule firmware updates or full calibration every 1–2 years (or per utility policy) to maintain the accuracy of the GE SR745-W2-P1-G1-HI-A-L-R-E.
