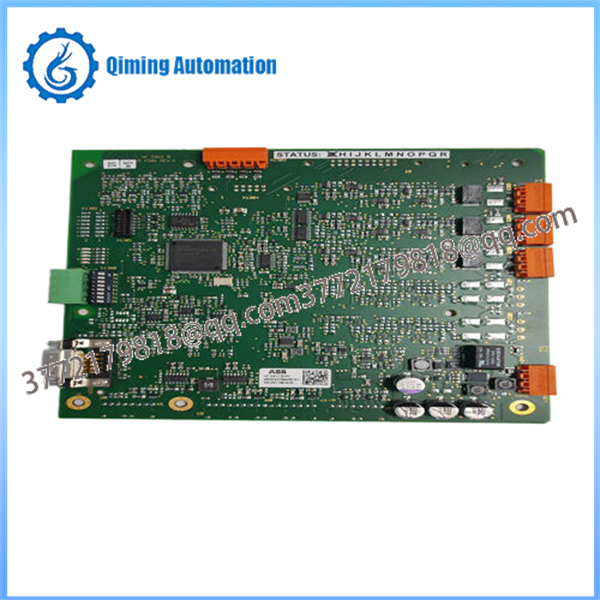

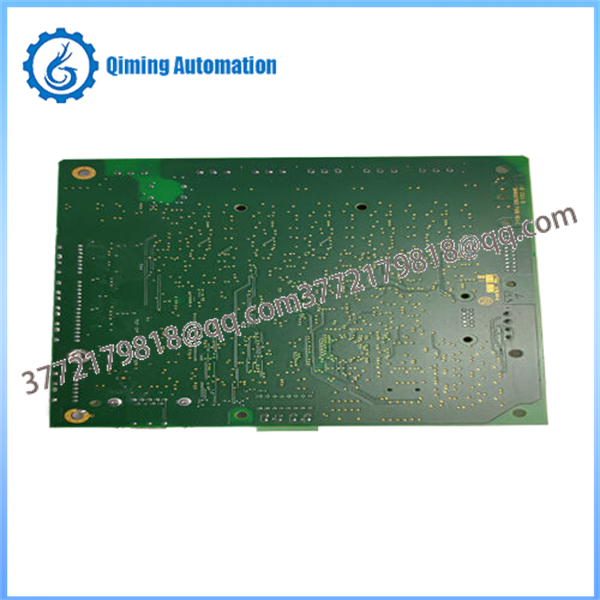

The ABB UFC911B101 (Order Number: 3BHE037864R0101) is a high-performance control unit specifically designed as the core processing module for the ABB ACS880 series of industrial drives. Often referred to as the "control board" or "main CPU module," the ABB UFC911B101 executes ABB's proprietary Direct Torque Control (DTC) algorithm, providing precise management of motor torque and speed without the need for a feedback encoder in standard applications. This unit integrates a powerful DSP (Digital Signal Processor) and an FPGA for real-time data processing, supporting advanced features like safety functions (Safe Torque Off - STO), multi-protocol communication (Profinet, EtherCAT, Modbus TCP), and extensive I/O expansion. The ABB UFC911B101 is critical for applications requiring high dynamic response, such as cranes, extruders, and centrifuges, ensuring reliable operation in harsh industrial environments.

Model Designation: ABB UFC911B101

Order Number: 3BHE037864R0101

Compatible System: ABB ACS880 Industrial Drives (Single and Multi-drive systems).

Processor Architecture: TI TMS320F28335 DSP (200 MHz) + Xilinx Spartan-6 FPGA.

Control Algorithm: Direct Torque Control (DTC) with encoderless and encoder-based modes.

Safety Rating: SIL3 / PLe certified for Safe Torque Off (STO) and other safe functions.

Communication: Built-in Ethernet (Modbus TCP) and slots for fieldbus adapters (Profinet, EtherNet/IP, DeviceNet, etc.).

I/O Capabilities: Multiple configurable digital inputs/outputs, analog inputs/outputs, and relay outputs.

Memory: Dual backup system (Flash + EEPROM) for parameter storage and fault logging.

Power Supply: Internally powered via the drive's DC bus or auxiliary 24V DC connection (depending on specific drive configuration).

Operating Temperature: -20°C to +55°C (derated above 40°C).

Safety Isolation: Disconnect all power sources (AC supply and DC bus) from the ACS880 drive. Wait for the capacitors to discharge (verify with a multimeter) before touching the ABB UFC911B101.

Access the Unit: Open the drive enclosure and locate the control unit slot on the main power module or control board carrier.

Module Insertion: Align the connectors of the ABB UFC911B101 carefully with the backplane socket. Ensure the guide pins match the holes to prevent bending connector pins.

Seating: Push the ABB UFC911B101 firmly and evenly until it seats completely. Secure the module using the designated screws or locking levers to ensure vibration resistance.

Option Boards: If required, install any communication adapter modules (e.g., FEA-01, FSCA-01) into the option slots on the ABB UFC911B101 before finalizing the installation.

Wiring: Connect control wiring (start/stop, speed reference, feedback) to the terminal blocks accessible through the ABB UFC911B101 front panel. Ensure shield grounding is properly executed.

Power Up: Restore control power first, then main power. Observe the LEDs on the ABB UFC911B101; the "RDY" (Ready) LED should illuminate green after the boot sequence completes.

The ABB UFC911B101 manages drive operations through these key functions:

Real-Time Control: Continuously calculates voltage and frequency vectors to control motor flux and torque with microsecond precision using the DTC algorithm.

Sequence Management: Handles start/stop ramps, braking chopper control, and automatic reset sequences based on programmed parameters.

Communication Hub: Acts as the gateway between the drive and the plant network, exchanging process data with PLCs and SCADA systems via configured fieldbus protocols.

Diagnostics & Protection: Monitors internal temperatures, voltages, and currents. If faults (e.g., overcurrent, earth fault) are detected, the ABB UFC911B101 triggers immediate protective actions and logs the event.

Safety Functions: Independently processes safety signals (e.g., emergency stop) to cut off motor torque (STO) meeting SIL3 requirements, separate from the standard control loop.

ESD Protection: The ABB UFC911B101 contains sensitive CMOS components. Always wear an anti-static wrist strap and handle the module by its edges.

Connector Care: Never force the module into the slot. Misalignment can bend the fine-pitch backplane pins, leading to intermittent communication failures that are difficult to troubleshoot.

Grounding: Ensure the drive cabinet and the ABB UFC911B101 mounting frame are solidly grounded to prevent noise interference in analog signals and communication lines.

Cable Segregation: Route high-voltage power cables away from the low-voltage control cables connected to the ABB UFC911B101 to minimize electromagnetic interference (EMI).

Firmware Compatibility: Before commissioning, verify that the firmware version loaded on the ABB UFC911B101 is compatible with the ACS880 hardware revision and the application requirements.

RDY LED Not Lit: Check the 24V auxiliary supply (if used) and the internal DC/DC converter outputs (e.g., +5V, +3.3V) on the ABB UFC911B101. Inspect fuses (e.g., F101) and the reset circuit.

Communication Errors: Verify fieldbus wiring termination and check if the option board is seated correctly in the ABB UFC911B101.

Unexpected Trips: Review the fault log in the ABB UFC911B101 to distinguish between external causes (e.g., motor short) and internal module faults.
