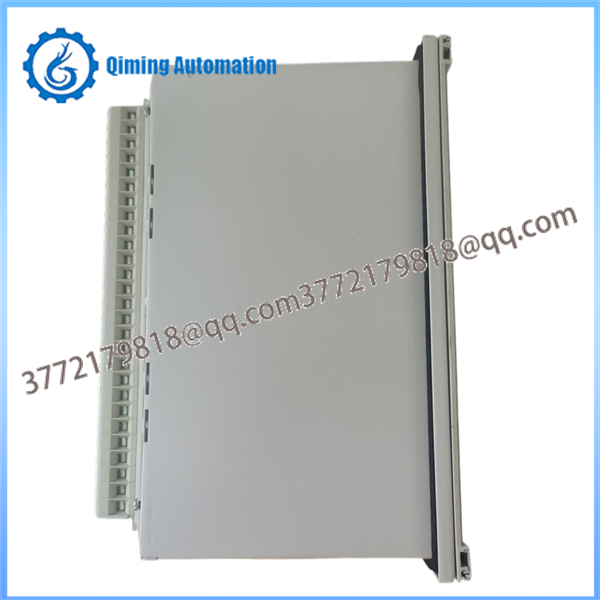

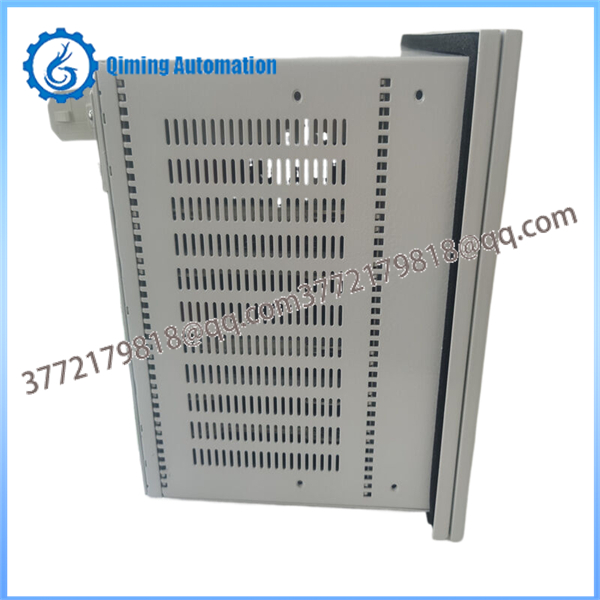

The ABB RET543AM243AAAB is a numerical transformer protection and control terminal from ABB's Relion® 500 series, designed for comprehensive monitoring and safeguarding of power transformers in utility and industrial applications. It offers advanced differential protection, overcurrent, thermal modeling, and optional voltage regulation functions for reliable operation in substations.

Model ABB RET543AM243AAAB

Type Transformer protection terminal

Current Inputs 8 × (1/5 A programmable)

Voltage Inputs 4 × phase (100-120 V)

Binary Inputs 16 configurable

Aux. Voltage 110-240 V AC/DC

Dimensions 144 × 150 × 210 mm

Temperature Range -40°C to +85°C

Communication IEC 61850, RS-485, Ethernet

Frequency 50/60 Hz

Weight ~2.2 kg

Prepare panel cut-out matching 144 × 150 mm dimensions for the ABB RET543AM243AAAB.

Mount via DIN rail (35 mm) or panel screws; ensure proper ventilation.

Connect CT/VT wiring to terminals with correct polarity; link binary I/O and comms ports.

Ground the unit and apply auxiliary power (110-240 V AC/DC).

Configure protection settings via HMI or PCM600 tool; perform initial testing.

Power down the system before installing or removing the ABB RET543AM243AAAB to prevent damage.

Verify CT/VT ratios align with transformer ratings to avoid misoperation.

Maintain IP20 environmental protection; avoid corrosive atmospheres.

Use torque-specified screws (0.5-1 Nm) for secure mounting.

Monthly: Inspect LEDs and connections on ABB RET543AM243AAAB for anomalies.

Quarterly: Clean dust with dry air; execute self-diagnostics.

Annually: Review event logs and update firmware via ABB software.

Every 5 years: Conduct secondary injection tests and full calibration.
