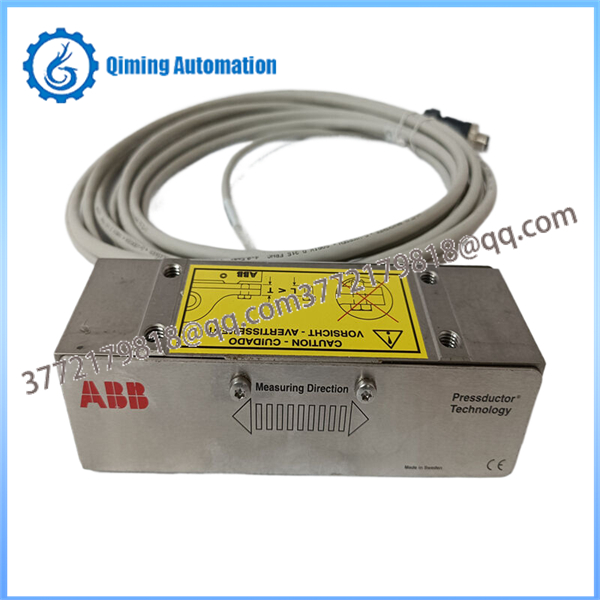

The ABB PFTL301E 3BSE019050R1000 1.0kN is a high-precision tension load cell based on ABB’s Pressductor® magnetoelastic technology. The ABB PFTL301E 3BSE019050R1000 1.0kN is specifically designed to measure web tension or strip force in industrial processes such as paper, film, and metal processing.

Unlike traditional strain-gauge sensors, the ABB PFTL301E 3BSE019050R1000 1.0kN offers drift-free measurement, high overload capacity, and strong resistance to vibration and harsh environments, making it ideal for continuous production lines.

In a paper production line, the ABB PFTL301E 3BSE019050R1000 1.0kN is installed on a guide roller bearing:

Measures real-time web tension

Sends signal to tension controller (e.g., ABB electronics)

Enables automatic speed and torque adjustment

This ensures stable tension, preventing paper breakage, wrinkles, or uneven thickness, significantly improving product quality.

Model ABB PFTL301E 3BSE019050R1000

Product Type Tension Load Cell (Pressductor®)

Rated Load 1.0 kN (1000 N)

Measurement Principle Magnetoelastic (Pressductor®)

Signal Output Via ABB electronics (4–20 mA / ±10 V)

Accuracy Up to 0.05–0.1% FS

Power Requirement Passive sensor (external electronics required)

Operating Temperature −10°C to +80°C (typical)

Protection Sealed industrial design (approx. IP67)

Mounting Pillow-block / bearing housing installation

Pressductor® Technology: No drift, no recalibration required

High Overload Capacity: Handles mechanical shocks better than strain gauges

Excellent Noise Immunity: Stable signal even in harsh environments

Compact Design: Easy installation in tight spaces

Long Service Life: Minimal maintenance required

The ABB PFTL301E 3BSE019050R1000 1.0kN is widely recognized for robustness and long-term stability in industrial tension measurement.

Mechanical Installation

Mount the ABB PFTL301E 3BSE019050R1000 1.0kN at the roller bearing position.

Electrical Connection

Connect the sensor to ABB tension electronics (signal conditioning unit).

Configuration

Set scaling, alarm limits, and control parameters in the control system.

Calibration / Verification

Perform system verification (usually no recalibration needed).

Operation

Monitor real-time tension and integrate with automatic control loops.

Ensure correct mounting direction (horizontal/vertical force)

Avoid mechanical misalignment of rollers

Use proper shielding for signal cables

Match with compatible ABB tension electronics

Do not exceed rated load (1.0 kN)

Visual Inspection: Check mounting bolts and structure

Signal Check: Verify stable output signals

Cleaning: Remove dust and debris

System Diagnostics: Monitor tension control performance

Periodic Testing: Confirm measurement accuracy

The ABB PFTL301E 3BSE019050R1000 1.0kN is a high-reliability tension measurement sensor designed for demanding industrial applications. With its advanced magnetoelastic technology, strong durability, and excellent measurement stability, the ABB PFTL301E 3BSE019050R1000 1.0kN is widely used in paper, textile, plastic film, and metal processing industries to ensure precise tension control and high product quality.
