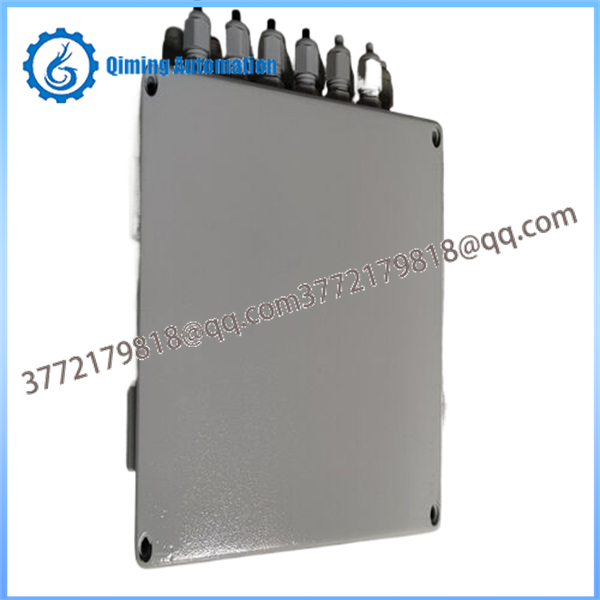

The ABB PFEA113-65 (part number 3BSE028144R0065) is an advanced Tension Electronics unit from ABB's Pressductor® series, designed for precise web tension measurement and control in industrial processes. The ABB PFEA113-65 supports up to four load cells, delivers six configurable analog outputs, and includes PROFIBUS-DP communication for seamless integration with control systems. In paper mills, printing presses, foil processing lines, textile machinery, and converting applications, the ABB PFEA113-65 ensures accurate real-time tension monitoring, reduced material waste, and improved product quality through features like gain scheduling, self-diagnostics, and multi-language display. The ABB PFEA113-65 stands out for its robustness, supporting segmented roll setups (up to 12 load cells with multiple units) and reliable performance in demanding environments.

Model,ABB PFEA113-65

Part Number,3BSE028144R0065

Product Type,Tension Electronics Controller (Pressductor® series)

Power Supply (IP20),24 V DC (18–36 V)

Power Supply (IP65),"24 V DC (18–36 V) or 100–240 V AC (±10/-15%), 45–65 Hz"

Power Consumption,12 W

Load Cells Supported,Up to 4 (plus cable resistance allowance: 10 Ω)

Load Cell Excitation,"0.5 A RMS, 330 Hz"

Analog Outputs,"6 configurable (–5 to +11 V, max 5 mA; or 0–21 mA, max 550 Ω)"

Analog Inputs,2 (AI1–AI2)

Digital Inputs,1 (DI for remote zero/gain scheduling)

Digital Outputs,4 (configurable for alarms/level detection)

Communication,"PROFIBUS-DP (up to 12 Mbit/s), GSD file ABB_0717.GSD"

Display,Multi-language 2x16 character LCD

Filter Options,"Selectable step response: 5, 15, 30, 75, 250, 750, 1500 ms"

Operating Temperature,5°C to 55°C

Protection Class,IP20 (DIN-rail unsealed) or IP65 (enclosed NEMA 4

Mount the ABB PFEA113-65 securely on DIN-rail (IP20) or wall (IP65 enclosure) in the control cabinet.

Connect 24 V DC power supply to terminals X1 on the ABB PFEA113-65, ensuring correct polarity and fusing.

Wire load cells (up to four) to excitation (X2) and signal (X3) terminals of the ABB PFEA113-65, following cable diagrams for the specific load cell type.

Configure analog outputs (X4), digital I/O (X5/X6), and PROFIBUS (X7) as needed for tension control/monitoring.

Power up the ABB PFEA113-65, use the front panel keys to perform Fast Setup or Complete Setup via the display menu, calibrate zero/tare, and verify signals (sum, individual, difference).

Monitor status LEDs and diagnostics on the ABB PFEA113-65; download/upload settings via PROFIBUS if integrated.

Use ESD protection when handling the ABB PFEA113-65 to prevent static damage to electronics. Install the ABB PFEA113-65 with power off; ensure proper grounding and earthing per manual guidelines. Select shielded cables for load cells and route them away from power lines to minimize interference on the ABB PFEA113-65. For IP65 version, use appropriate cable glands and seal entries; replace mains gland with UL-listed fitting if required. Verify compatibility with load cells (e.g., PFCL 301E, PFTL 301E) and provide external fuses/disconnection for power to the ABB PFEA113-65. Perform initial setup and testing in a safe, isolated state before connecting to live processes, strictly following ABB's user manual (3BSE029382R0101) for wiring and synchronization.

Inspect the ABB PFEA113-65 visually each shift for dust, moisture ingress (especially IP65), loose connections, or abnormal LED/display indications. Clean the ABB PFEA113-65 enclosure exterior gently with a dry cloth or compressed air—avoid liquids or solvents. Check load cell cables and terminations on the ABB PFEA113-65 periodically for wear, corrosion, or tightness. Review diagnostic logs, self-test results, and tension signals via the ABB PFEA113-65 display or PROFIBUS regularly to catch early faults like overload or drift. Backup configuration settings from the ABB PFEA113-65 after any changes. In dusty or humid environments, increase cleaning frequency and test analog/digital outputs quarterly to maintain accuracy and reliability of the ABB PFEA113-65 system.
