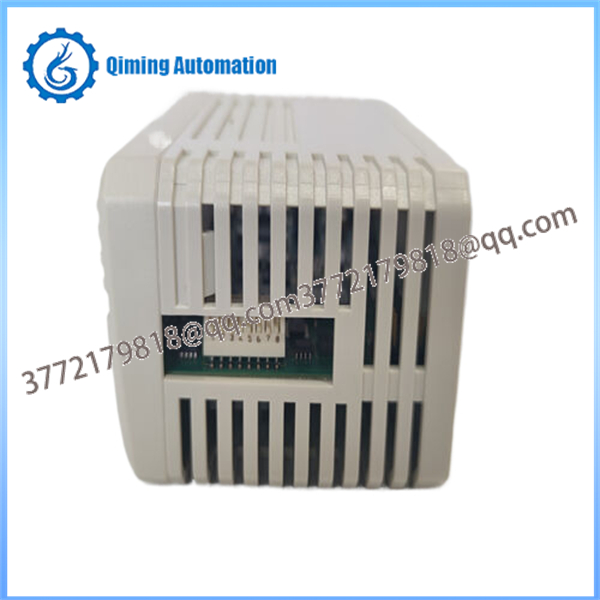

The ABB PDP800 is a specialized PROFIBUS DP interface module within the Symphony Plus SD Series, serving as a robust master for connecting Symphony Plus controllers to PROFIBUS DP communication networks. The ABB PDP800 enables seamless integration with field devices, remote I/O stations like S800 I/O, and supports PROFIBUS DP V0, V1, and V2 protocols. In power plants, process industries, water treatment facilities, and oil & gas applications, the ABB PDP800 has proven highly effective for high-speed data exchange, redundancy support, and reliable control in large-scale automation systems. Users value the ABB PDP800 for its ability to handle up to 125 slaves at speeds up to 12 Mbps, reducing wiring complexity while enhancing system diagnostics and availability.

Model,ABB PDP800

Product Type,PROFIBUS DP Master Interface Module (SD Series)

Supported Protocols,"PROFIBUS DP V0, V1, V2"

Maximum Slaves,Up to 125

Maximum Baud Rate,Up to 12 Mbps

Redundancy Support,"Module, power supply, PROFIBUS link, HN800 bus"

PROFIBUS Link Distance,Up to 15 km (with fiber optic)

Power Consumption,Approx. 5 W

Operating Temperature,-20°C to +60°C

Storage Temperature,-40°C to +85°C

Dimensions (approx.),244 mm x 74 mm x 170 mm

Weight,Approx. 0.6–0.8 kg (depending on configuration)

Origin,Sweden / Switzerland

Insert the ABB PDP800 module into the designated slot of the Symphony Plus SD Series rack or controller chassis.

Connect the PROFIBUS DP cable to the ABB PDP800's communication ports, ensuring proper termination if at the end of the bus.

Apply 24 V DC power to the rack and verify the status LEDs on the ABB PDP800 indicate normal operation.

Use ABB Composer or relevant configuration software to set up the ABB PDP800 as PROFIBUS master, define slave addresses, and map I/O data.

Download the configuration to the controller and monitor cyclic data exchange and diagnostics via the ABB PDP800 interface for proper communication.

Handle the ABB PDP800 with ESD protection (wrist strap and grounded mat) to safeguard internal electronics. Install the ABB PDP800 only when system power is disconnected. Confirm compatibility with the Symphony Plus controller and rack before mounting the ABB PDP800. Ensure correct PROFIBUS cable shielding, grounding, and termination resistors are applied to prevent signal reflections on the ABB PDP800 network. Verify power supply voltage and polarity match ABB PDP800 requirements. Perform a bench test of the ABB PDP800 configuration in a non-production environment before live deployment, and strictly adhere to ABB Symphony Plus installation manuals.

Conduct visual checks of the ABB PDP800 module daily for dust, overheating, or irregular LED patterns. Clean the ABB PDP800 exterior surfaces periodically using dry compressed air or a soft brush—avoid liquids or abrasive materials. Review PROFIBUS diagnostic logs and error counters from the ABB PDP800 regularly to detect early issues like communication faults or slave dropouts. Inspect cable connections to the ABB PDP800 for tightness and signs of wear every few months. Keep firmware and configuration backups current for the ABB PDP800. In harsh environments, schedule more frequent cleaning and functional testing of the ABB PDP800 network performance to ensure long-term reliability and minimize unplanned downtime.
