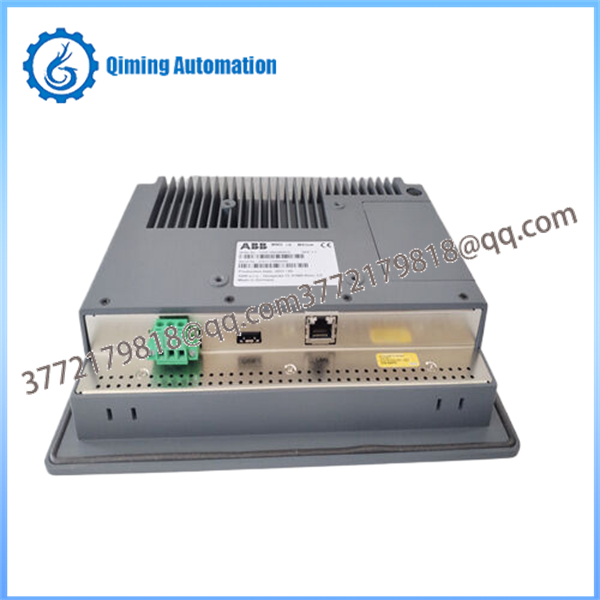

The ABB 1TGE120028R0010 is the MView 8.4-inch touch panel Human System Interface (HSI) designed for the ABB MNS iS intelligent low-voltage Motor Control Center (MCC) system. It provides a local operator interface for monitoring, control, and diagnostics of motor starters, feeders, and associated equipment within the MNS iS switchgear lineup.

Mounted typically on the door of an MNS iS cubicle or in a dedicated operator panel, the MView serves as a user-friendly graphical interface that displays real-time process data, alarms, events, motor parameters, and system status directly from the internal switchgear communication bus. It connects to the MLink gateway or directly accesses data from MControl units, enabling operators to view detailed information without relying solely on higher-level SCADA or DCS systems.

As part of the MNS iS ecosystem, the 1TGE120028R0010 complements the MLink communication gateway (e.g., 1TGE120021R0010) by offering on-site visualization and basic control functions. It supports the same high-availability design principles as the rest of the MNS iS platform, including time-stamped events and integration with ABB engineering tools such as M Navigate. Compared to web-based access via the MLink’s built-in M View web server, the dedicated 8.4-inch touch panel provides a robust, always-available local HMI that remains operational even during network disturbances to higher-level systems.

Engineers select this HMI for applications requiring direct, intuitive operator interaction at the MCC, particularly in environments where quick response to alarms or manual interventions is critical.

The MView 1TGE120028R0010 delivers essential local HMI capabilities tailored to intelligent motor control:

Graphical Visualization: Clear display of single-line diagrams, motor/feeder status, measured values (current, voltage, power, energy), thermal models, and operating states using intuitive screens.

Alarm and Event Management: Presentation of active alarms, historical events with time stamps, and acknowledgment functions directly from the MNS iS system.

Control Operations: Start/stop commands, set-point adjustments, and mode selections for connected motors and feeders (subject to configured access levels and safety interlocks).

Diagnostic Access: Detailed views of MControl module diagnostics, protection functions, maintenance data, and communication status.

Navigation and Usability: Touch-screen operation with hierarchical menus, trend displays, and system overview screens for efficient operator interaction.

Integration with MNS iS Bus: Direct or via MLink access to all MControl-equipped modules, ensuring consistent data without additional configuration layers.

Multi-Language Support and Security: Configurable languages and password-protected access levels to suit different operator roles.

Web Interface Synergy: Complements the MLink web server (also referred to as M View) for remote diagnostics while providing a dedicated local panel.

These functions enhance situational awareness at the switchgear level, supporting faster troubleshooting and reducing dependency on remote systems during normal operation or maintenance.

Key specifications for the ABB 1TGE120028R0010 MView:

Display: 8.4-inch color touch panel

Power Supply: 24 V DC (typical range aligned with MNS iS components: 19 – 31 V DC)

Power Consumption: Low, consistent with panel-mounted HMIs in the system (exact value depends on configuration and backlight usage)

Dimensions: Approximate product net height 185 mm, depth/length 82 mm (panel cut-out and mounting dimensions per ABB installation drawings)

Weight: Approximately 5 kg

Operating Temperature: 0 °C to +55 °C (standard for MNS iS environment)

Storage Temperature: –20 °C to +70 °C

Degree of Protection: IP54 or higher when properly mounted on cubicle door (front side)

Interfaces: Ethernet or dedicated connection to the MNS iS switchgear control network or MLink; configuration via M Navigate tool

Mounting: Panel-mounted on MNS iS cubicle door or separate enclosure

Backlight and Durability: Industrial-grade touch screen designed for continuous operation in control room or switchgear environments

The HMI is pre-configured or engineered using ABB tools to match the specific MNS iS project topology. Always verify exact mounting cut-out dimensions and electrical connections in the project documentation and MNS iS Interface Manuals.

The 1TGE120028R0010 MView is deployed wherever local operator visibility and control of low-voltage motors and feeders are required within MNS iS MCCs:

Oil & Gas and Petrochemical: Local monitoring of critical pumps, compressors, and fans in hazardous or remote process areas.

Power Generation and Utilities: Auxiliary MCCs in thermal, hydro, or renewable plants for on-site operator interaction.

Mining and Metals Processing: Heavy-duty motor applications demanding immediate access to diagnostics and control.

Water & Wastewater: Pump stations and treatment plants where operators need quick status overviews.

Chemical, Pharmaceutical, and Food & Beverage: Process lines requiring hygienic or high-availability motor management with local HMI.

General Manufacturing: Conveyor systems, material handling, and production machinery integrated into intelligent MCCs.

Typical scenarios include new MNS iS installations with multiple cubicles, expansions needing additional local interfaces, and retrofit projects upgrading older MCCs to intelligent systems. For purely remote monitoring, the MLink web interface may suffice; however, the dedicated MView panel is preferred when operators are frequently present at the MCC or when network independence is desired. In large plants, multiple MView panels can be installed across different MCC sections for sectionalized operation.

Mounting: Cut the appropriate opening in the MNS iS cubicle door or mounting panel according to ABB drawings. Secure the panel with provided fasteners, ensuring proper sealing to maintain the cubicle’s ingress protection rating.

Power Supply: Connect 24 V DC from the MNS iS control voltage supply. Observe polarity and use adequately sized, protected wiring.

Network/Communication Connection: Link the MView to the switchgear control network (Ethernet) or directly to the MLink as per project topology. Use shielded cables and follow grounding practices to minimize electromagnetic interference.

Configuration: Load the project-specific screens and mappings using the M Navigate engineering tool. Verify communication with MControl modules and MLink before final commissioning.

Safety: Installation and configuration must be performed by qualified personnel. Ensure all control commands respect plant safety interlocks and permit-to-work procedures. De-energize relevant sections during initial wiring where required.

Refer to the MNS iS System Guide, Interface Manuals, and project-specific documentation for exact procedures. Proper earthing and cable routing are essential for reliable operation in industrial environments.

The MView 1TGE120028R0010 is designed for long-term, low-maintenance service in industrial settings:

Routine Inspections: Periodically check the touch screen for cleanliness, backlight functionality, and secure mounting. Wipe the screen with suitable non-abrasive cleaners when powered off.

Diagnostics: Use the built-in screens to monitor communication status, alarm lists, and system health. Cross-reference with MLink diagnostics or higher-level systems when available.

Configuration Backup: Maintain current project backups via M Navigate for quick restoration if needed.

Simple Troubleshooting:

No Power / Blank Screen: Verify 24 V DC supply voltage and connections at the panel.

Touch Screen Not Responding: Clean the screen surface and check for physical damage. Reboot the panel if supported.

Communication Errors / Missing Data: Confirm network cabling, IP settings (if applicable), and connection to MLink or switchgear bus. Check LED indicators on connected MLink for related faults.

Incorrect or Missing Screens: Reload configuration via M Navigate and verify project version compatibility with the MNS iS system release.

Slow Response or Freezing: Reduce backlight brightness if overheating is suspected, or check for excessive simultaneous data requests from multiple HMIs.

For persistent issues, collect screenshots or event logs from the MView and consult ABB support with the system release version and configuration files. Spare panels and touch overlays should be stocked for critical installations to enable rapid replacement.

The ABB MView 1TGE120028R0010 provides a reliable, intuitive local interface that enhances the operational efficiency and maintainability of MNS iS Motor Control Centers. Combined with MLink gateways and MControl intelligence, it delivers comprehensive visibility and control at the point of use, supporting reduced downtime and improved safety in motor management applications. For detailed engineering, configuration, and compatibility information, always consult the latest MNS iS documentation and ABB tools.
