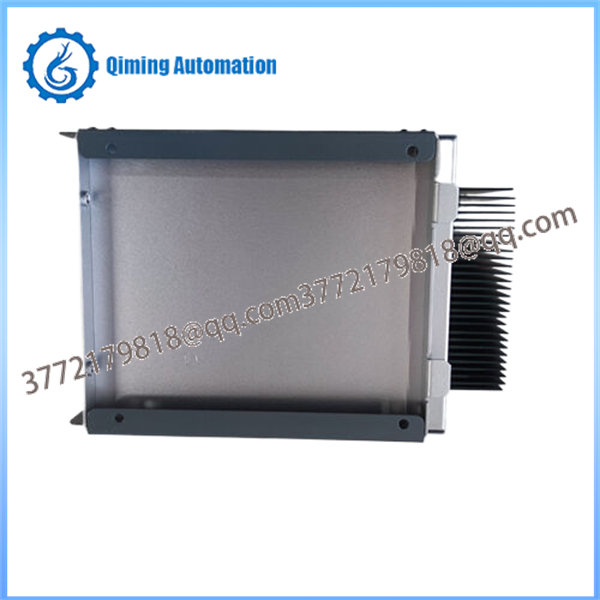

The ABB 1TGE120021R0010 is the MLink communication gateway (Hardware Version 2) specifically engineered for the ABB MNS iS intelligent low-voltage Motor Control Center (MCC) system. It serves as the primary interface between the MNS iS switchgear (via the internal switchgear bus connected to MControl units) and higher-level Distributed Control Systems (DCS), SCADA, or plant automation networks.

This gateway enables real-time data exchange, including process values, status signals, alarms, events with time stamps, and control commands for motor starters, feeders, and other withdrawable units in the MNS iS lineup. It supports multiple fieldbus and Ethernet-based protocols, making it a versatile link in modern industrial power distribution and motor control applications.

The 1TGE120021R0010 variant is configured for Modbus RTU/TCP and PROFINET IO communication to the DCS (with internal Modbus TCP to the switchgear side). Compared to the 1TGE120021R0110 variant (which adds PROFIBUS DP support), the R0010 offers a streamlined solution where Ethernet-based protocols are preferred, such as direct integration with ABB 800xA or other PROFINET-compatible systems. It provides OPC connectivity, web-based diagnostics (M View), and redundancy options, ensuring high availability in critical motor control environments.

Engineers value the MLink for its robust design, ease of integration within the MNS iS ecosystem, and ability to handle large data volumes from intelligent motor controllers without additional external converters.

The MLink 1TGE120021R0010 delivers reliable bidirectional communication with the following key capabilities:

Protocol Conversion and Mapping: Translates data between the internal MNS iS switchgear bus (proprietary high-speed protocol to MControl modules) and external protocols including Modbus RTU, Modbus TCP, and PROFINET IO. This ensures seamless mapping of motor parameters, circuit breaker status, thermal models, and diagnostic data.

Ethernet Interfaces: Dual LAN ports (LAN1 and LAN2) for 10/100 Base-T connections, supporting switchgear control network separation and redundant topologies where required.

Web Interface (M View): Built-in web server for configuration, diagnostics, monitoring of communication status, and firmware management without dedicated engineering software in all cases.

Time Stamping and Event Handling: Supports accurate time synchronization and timestamped events for sequence-of-events recording, critical for fault analysis in MCC applications.

OPC Connectivity: Provides OPC server functionality for easy integration into higher-level SCADA or historian systems.

Redundancy Support: Compatible with dual-redundant configurations using appropriate switchgear bus connectors, enhancing system availability in continuous-process industries.

Diagnostics and Supervision: Extensive LED indicators for power, run/fault status, communication activity on all interfaces, plus detailed diagnostics accessible via web interface or engineering tools.

Data Logging and Buffering: Handles high data throughput with buffering to prevent loss during temporary network disturbances.

These features allow the gateway to act as a transparent yet intelligent bridge, minimizing engineering effort while maximizing visibility into the low-voltage switchgear.

Key specifications for the ABB 1TGE120021R0010 MLink:

Power Supply: 24 V DC (range 19 – 31 V DC)

Power Consumption: Typical 800 mA, maximum 1000 mA

Dimensions (H × W × D): 140 mm × 160 mm × 165 mm (approximate)

Weight: Approximately 2.5 – 3.0 kg

Operating Temperature: 0 °C to +55 °C

Storage Temperature: –20 °C to +70 °C

Degree of Protection: IP51

Interfaces:

Switchgear bus: Blue Sub-D 9 female connector (internal MNS iS communication)

LAN1 / LAN2: RJ45 10/100 Base-T Ethernet (Modbus TCP / PROFINET IO)

Serial interfaces: Modbus RTU support via dedicated port

USB and additional LAN3: Not used or reserved

MTBF: 46 years at 40 °C (typical)

CF Card: For application software and configuration storage (protected against accidental removal)

LED Indicators: Power On, Run, Fault, protocol-specific Tx/Rx, and application-dependent status

The hardware supports standard CAT5 Ethernet cabling and requires proper shielding and termination on the switchgear bus. Exact protocol performance depends on the loaded software modules and system configuration. Consult the latest MNS iS Interface Manual for detailed pin assignments and performance data.

The 1TGE120021R0010 is primarily deployed in low-voltage motor control applications within the MNS iS MCC platform:

Oil & Gas and Petrochemical: Motor control for pumps, compressors, and fans where reliable status monitoring and fast command execution are essential.

Power Generation and Utilities: Auxiliary systems in thermal, hydro, or renewable plants requiring integration with plant DCS.

Mining and Metals: Heavy-duty motor applications with demanding environmental conditions and high availability needs.

Water & Wastewater Treatment: Pump and blower control with extensive diagnostic data transfer.

Chemical and Pharmaceutical: Process-critical motors demanding accurate thermal protection data and event logging.

Food & Beverage and Manufacturing: Conveyor and processing lines integrated into broader automation systems.

Typical scenarios include new MNS iS switchgear installations, expansions of existing MCCs, and retrofits where intelligent motor management is required. For PROFIBUS-heavy environments, the R0110 variant may be preferred. When integrating with ABB Ability™ or 800xA systems, the PROFINET support provides native advantages in engineering and diagnostics.

Mounting: Install the MLink inside the MNS iS cubicle on the designated mounting plate. Ensure adequate ventilation and observe the IP51 rating (control cabinet environment).

Power Supply: Connect 24 V DC to the dedicated terminals (+24 V and 0 V). Use appropriately sized wiring and follow polarity strictly.

Switchgear Bus Connection: Use the correct blue Sub-D 9 connector (non-redundant with termination 1TGE120016R0104 or redundant without termination 1TGE120016R0103). Shield the bus cable on both ends and terminate according to topology.

Ethernet Connections: Connect LAN1/LAN2 using shielded CAT5 cables. Separate the switchgear control network from plant networks using routers/firewalls as needed. Configure IP addresses and ensure Gratuitous ARP handling on managed switches.

Configuration: Load the appropriate software modules via the CF card. Use the web interface (M View) or M Navigate engineering tool for parameter setting, protocol mapping, and testing.

Safety: Only qualified personnel should perform installation. De-energize the MCC section during initial wiring. Verify all connections before applying power.

Always refer to the MNS iS Interface Manual (e.g., 1TGC910211M0203) and project-specific drawings during installation.

The MLink gateway is designed for low-maintenance operation in industrial environments:

Routine Inspections: Periodically check LED status indicators, cable connections, and CF card seating. Clean dust from ventilation areas if necessary (power off).

Diagnostics: Monitor via the integrated web interface for communication statistics, error counters, and event logs. Use time-stamped data for predictive maintenance of connected motors.

Firmware/Software Updates: Perform updates via the web interface or CF card replacement following ABB procedures. Always back up configuration first.

Simple Troubleshooting:

No Power (LED 7 off): Verify 24 V DC supply voltage and connections.

Run LED not illuminated (LED 1): Check CF card insertion and application loading. Perform reset using the dedicated button.

Communication Failure to DCS: Confirm Ethernet link LEDs, IP configuration, protocol settings, and cable integrity. Check for firewall or ARP issues.

Switchgear Bus Issues: Inspect Sub-D connector, termination, and shielding. Verify MControl units are powered and communicating internally.

Fault LED active: Review detailed diagnostics in the web interface for specific error codes related to protocol timeouts or mapping errors.

In redundant setups, confirm primary/backup switchover behavior. For persistent issues, collect diagnostic files from the web interface and contact ABB support with the system release version.

The ABB MLink 1TGE120021R0010 provides a field-proven, robust solution for integrating intelligent low-voltage motor control into modern automation architectures. Its protocol flexibility, diagnostic capabilities, and seamless fit within the MNS iS ecosystem deliver long-term reliability and reduced total cost of ownership for motor management applications. For detailed configuration and compatibility, always consult the current MNS iS documentation and ABB engineering tools.
