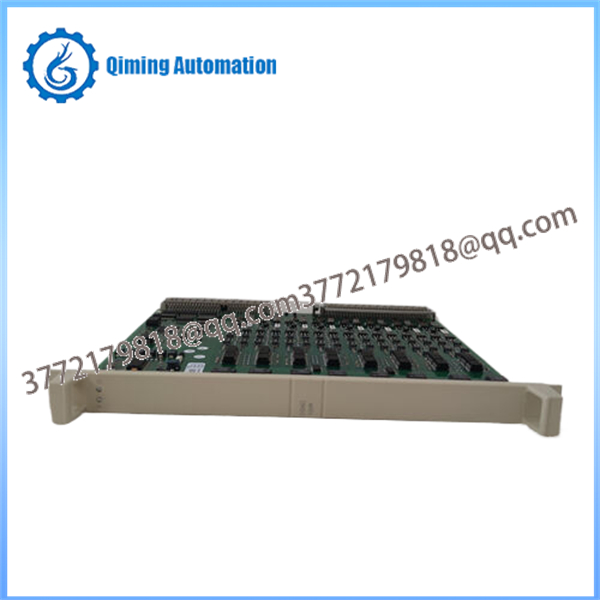

The ABB DSAO120AK01 3BSE020419R1 is a high-performance analog output (AO) module designed for ABB distributed control systems, particularly the AC 800M controller platform and Freelance DCS architecture. It serves as a critical interface between digital control logic and field-level analog devices by converting control signals into standardized analog outputs such as current or voltage.

This module is widely used in process automation systems where precise analog signal output is required for controlling valves, actuators, drives, and other field instruments. With its high resolution, robust isolation, and advanced diagnostics, the DSAO120AK01 ensures stable and accurate control performance in complex industrial environments.

Designed for reliability and scalability, the ABB DSAO120AK01 3BSE020419R1 supports modular system expansion and integrates seamlessly into ABB automation ecosystems, making it a preferred choice for industries requiring high precision and continuous operation.

The ABB DSAO120AK01 3BSE020419R1 provides advanced analog output capabilities and system integration features:

High-Precision Analog Output
Supports multiple output signal types including 4–20 mA and 0–10 V, enabling accurate control of field devices.

Multi-Channel Output Capability
Provides up to 12 isolated analog output channels, allowing efficient handling of multiple control loops within a single module.

High Resolution and Accuracy
Equipped with 16-bit resolution and linearity of ±0.1% full scale, ensuring precise signal generation for critical processes.

Electrical Isolation Design
Channel-to-channel and system isolation enhances safety and protects against electrical interference and ground loops.

Hot-Swappable Functionality
Supports online replacement without shutting down the system, improving availability in continuous production environments.

Advanced Diagnostics
Real-time monitoring of output status, including detection of open circuits, overloads, and signal deviations for predictive maintenance.

Seamless System Integration
Fully compatible with ABB AC 800M and Freelance engineering tools, enabling efficient configuration and commissioning.

Industrial-Grade Reliability
Designed to operate in harsh environments with resistance to EMI, vibration, and temperature fluctuations.

Product Model ABB DSAO120AK01 3BSE020419R1

Product Type Analog Output Module (AO)

Compatible Systems ABB AC 800M, Freelance DCS

Output Channels 12 isolated channels

Output Signal Types 4–20 mA / 0–10 V (software selectable)

Resolution 16-bit

Linearity ±0.1% full scale

Power Supply 24 V DC (redundant support)

Communication Integrated via controller backplane

Installation Method DIN rail mounting

Operating Temperature -40°C to +70°C

Protection Class IP20

EMC Compliance IEC 61000-6-2

Certifications CE, UL, IEC 61131-2

Weight Approx. 0.8 kg

The ABB DSAO120AK01 3BSE020419R1 is widely applied in industries requiring accurate analog control:

• Oil and Gas Industry
  Controls flow, pressure, and valve positioning in upstream and downstream processes.

• Power Generation
  Provides analog control signals for turbines, boilers, and excitation systems.

• Water and Wastewater Treatment
  Regulates pump speeds, chemical dosing, and flow control systems.

• Chemical and Petrochemical Plants
  Ensures precise control of temperature, pressure, and flow in continuous processes.

• Manufacturing Automation
  Used in process lines requiring stable analog output for actuators and control devices.

• Pharmaceutical and Food Processing
  Supports high-precision dosing and process consistency.

In these scenarios, the module improves control accuracy, reduces system complexity, and enhances operational reliability.

To ensure optimal performance of the ABB DSAO120AK01 3BSE020419R1, follow these guidelines:

1. Power Isolation
   Disconnect system power before installation or removal to avoid equipment damage.

2. Proper Wiring Practices
   Use shielded cables for analog signals and ensure correct grounding to minimize interference.

3. Adequate Ventilation
   Maintain sufficient spacing between modules (recommended ≥25 mm) for heat dissipation.

4. Correct Signal Configuration
   Verify output signal type (current/voltage) matches field device requirements before commissioning.

5. System Compatibility Check
   Ensure compatibility with ABB controllers and engineering tools.

6. Redundant Power Consideration
   For critical systems, use redundant 24V DC supply to improve availability.

Daily Maintenance

Monitor module status via LED indicators and DCS diagnostics.

Inspect wiring terminals and connectors for looseness or corrosion.

Perform periodic calibration checks to maintain signal accuracy.

Keep the module clean and ensure proper cabinet environmental conditions.

Simple Troubleshooting

No Output Signal

Check 24V DC power supply and wiring connections.

Verify configuration and channel assignment.

Output Signal Deviation

Perform calibration or check for load mismatch.

Inspect for interference or grounding issues.

Channel Fault Alarm

Identify open circuit or overload condition.

Replace faulty field device if necessary.

Intermittent Signal Instability

Check shielding and grounding integrity.

Ensure environmental conditions meet specifications.

When selecting an analog output module, consider the following factors:

Channel Density: With 12 channels, the DSAO120AK01 is suitable for medium to high I/O density applications.

Precision Requirements: 16-bit resolution ensures high accuracy for critical control loops.

System Compatibility: Best suited for ABB AC 800M and Freelance systems, ensuring seamless integration.

Reliability Needs: Built-in diagnostics and redundancy support make it ideal for continuous processes.

Compared with lower-resolution or non-isolated analog output modules, the ABB DSAO120AK01 3BSE020419R1 provides superior accuracy, enhanced safety, and better long-term stability. It is particularly advantageous in industries where precise analog control directly impacts product quality and process safety.

The ABB DSAO120AK01 3BSE020419R1 analog output module delivers high precision, robust performance, and seamless integration, making it a reliable solution for modern industrial automation and process control systems.
