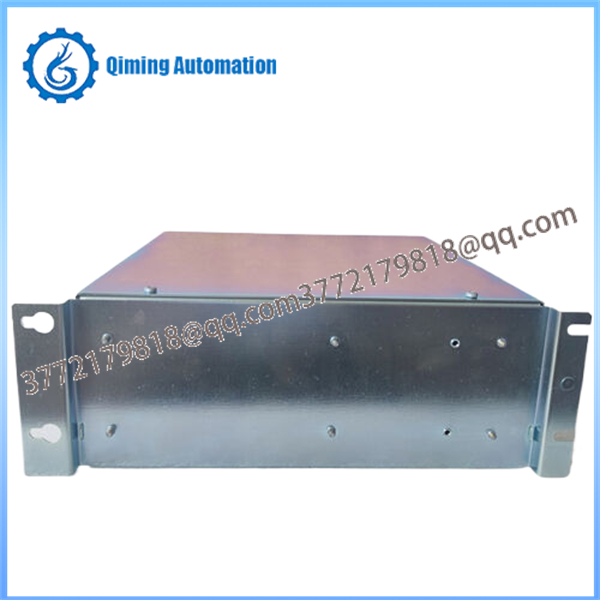

The ABB DCF506-0140-51 is an active overvoltage protection unit designed for use with three-phase field supply converters in the ABB DCS800-S01/S02 and legacy DCF500 / DCS500B platforms. It protects the power section of field exciters or 4-quadrant non-motoric inductive loads against inadmissibly high voltages that can occur during rapid current changes, field weakening, or de-excitation of large motor fields.

This unit is essential when using DCF501B (2Q) or DCF502B (4Q) field supply converters rated up to 140 A DC, as these require separate active overvoltage protection for safe operation on highly inductive loads such as DC motor field windings. The DCF506-0140-51 actively limits overvoltages by triggering a free-wheeling circuit or crowbar function, dissipating stored inductive energy safely and preventing damage to thyristors, diodes, or insulation.

Compared to the passive protection in smaller field exciters (e.g., SDCS-FEX-1/2), the DCF506 series provides dynamic, active intervention suitable for higher-power or fast-response applications. The -0140-51 variant is matched to field currents in the 25–140 A range (with corresponding DCF50xB-0140-51 converters). Larger ratings use DCF506-0520-51 (up to 520 A) or DCF506-1200-51. It integrates directly with the converter control logic via binary signals for monitoring and acknowledgment, ensuring coordinated operation within the drive system.

The DCF506-0140-51 provides critical protection and diagnostic capabilities:

Active Overvoltage Limitation: Detects and clamps excessive DC-link or field circuit voltages by activating a controlled free-wheeling path or suppression circuit, safely handling energy from inductive loads during de-excitation or faults.

Suitability for 2Q and 4Q Operation: Works with both half-controlled (2Q) and fully-controlled antiparallel (4Q) field bridges, supporting fast field reversal and dynamic response.

Integration with Converter Control: Binary interface for overvoltage event signaling (alarm/fault) to the main converter (e.g., via PP_DI_OVP parameter). Supports acknowledgment and reset logic.

High Current Handling: Rated for field supplies up to 140 A continuous, with voltage compatibility up to 500 V DC (supply side typically 400–500 V AC input to the field converter).

Robust Diagnostics: Relay or digital output for status feedback; clear integration with drive alarms (e.g., Ext.Overvolt.Alarm/Fault) for operator visibility and sequence-of-events recording.

Compact Industrial Design: Designed for cabinet installation alongside the field converter, with straightforward wiring to the DC output of the field supply.

These features ensure reliable protection of thyristor-based field exciters in high-power DC drive applications, preventing costly downtime or component failure due to voltage spikes.

Key specifications for the ABB DCF506-0140-51 (part often associated with DCF1127101R0001):

Rated Current Range: Matched to 25–140 A DC field current (for DCF50xB-0140-51 converters)

DC Voltage Rating: Up to 400–500 V DC (field circuit)

Supply Compatibility: Designed for three-phase field converters supplied from 400–500 V AC systems

Protection Function: Active overvoltage clamping via free-wheeling/suppression circuit

Interface: Binary signal connection for overvoltage event detection and acknowledgment

Dimensions and Weight: Approximate weight ~8 kg (for the 0140 size); compact module dimensions suitable for side-by-side mounting with field converter (exact mechanical details in system technical data)

Operating Temperature: Standard industrial range for DCS/DCF series (typically 0 °C to +55 °C, with derating considerations per cabinet ventilation)

Protection Class: IP20 (cabinet installation)

Certifications: Compliant with ABB drive system standards; marine and industrial approvals where applicable in the DCS800/DCS500 family

The unit requires correct wiring to the field converter DC output and proper parameter settings (e.g., OVP_SELECT) in the drive software. Always verify pairing with the exact field converter type and firmware release.

The DCF506-0140-51 is primarily used in DC drive systems requiring robust field excitation:

Metal Industry: Rolling mills, extruders, and heavy DC motor applications with large field windings.

Mining and Material Handling: Hoists, crushers, and conveyors with high-power DC motors.

Paper and Pulp: Winder/unwinder drives and sectional DC drives.

Cement and Marine: Auxiliary drives, thrusters, or winches where reliable field control is critical.

General DC Drive Retrofits: Upgrades or maintenance of DCS500/DCS600/DCS800 systems.

Typical scenarios include new DCS800 field supply installations, spare part replacements in legacy DCF500B setups, and protection for 4Q field reversal applications. For smaller field currents (<50 A), internal exciters (SDCS-FEX-2) may suffice without external DCF506. For higher currents (250–520 A), select the DCF506-0520-51 variant. In systems with very fast de-excitation requirements, pair with appropriate control logic and snubber components.

Mounting: Install in the drive cabinet near the field supply converter (DCF50xB-0140-51). Ensure adequate clearance for heat dissipation and cable routing. Secure mounting to withstand vibration in industrial environments.

Power and Signal Wiring: Connect the DCF506 across the DC output of the field converter. Follow ABB wiring diagrams for the suppression circuit and binary signal interface (e.g., to a digital input on the converter control board). Use appropriately sized cables and observe polarity.

Configuration: In the drive software (DCS800 or legacy DCS500), enable and configure the overvoltage protection parameters (e.g., PP_DI_OVP connection and OVP_SELECT). Set alarm/fault reaction as required (warning or trip).

Commissioning: Perform insulation and functional tests on the field circuit. Verify overvoltage protection activation during simulated de-excitation or fault conditions. Check acknowledgment signals and drive diagnostics.

Safety: Only qualified personnel familiar with thyristor DC drives may install or service the unit. De-energize and lock out the entire drive system (including field supply) before any work. Discharge capacitors and follow ABB safety instructions for medium-power DC circuits. Observe ESD precautions when handling electronics.

Refer to the DCS800 or DCS500/DCF500 system description, technical data, and operating instructions (e.g., 3ADW000054Rxxxx or equivalent) for exact connection diagrams, parameter settings, and torque values.

The DCF506-0140-51 is a passive-active protection device with no moving parts and requires minimal routine maintenance:

Routine Inspections: Periodically check for loose connections, signs of overheating, or dust accumulation. Verify cabinet ventilation and ambient conditions remain within specifications. Inspect wiring insulation for damage.

Diagnostics: Monitor drive alarms and faults related to external overvoltage (e.g., Ext.Overvolt.Alarm or Fault). Use the control panel or DriveWindow/DCS800 tools to review event logs and status signals.

Functional Verification: During scheduled shutdowns, test the protection circuit activation if supported by system diagnostics.

Simple Troubleshooting:

Overvoltage Alarm/Fault Active: Check field circuit wiring, grounding, and load inductance. Verify parameter settings for overvoltage protection. Inspect for loose connections or degraded suppression components.

No Acknowledgment or Persistent Fault: Confirm binary signal wiring from DCF506 to the converter control board. Check for correct OVP_SELECT configuration. Test the binary input channel.

Protection Not Triggering When Expected: Validate the field converter output voltage and current during dynamic tests. Ensure the DCF506 is correctly paired with the field supply rating.

Drive Not Starting or Field Issues: Rule out upstream power supply or main converter faults first. Measure voltages at the DCF506 terminals during operation.

For persistent issues, record fault codes, event logs, and system parameters, then contact ABB Drive Services with the drive serial number, software version, and detailed symptoms. Keep spare DCF506-0140-51 units on site for critical high-power DC drive applications to enable rapid replacement.

The ABB DCF506-0140-51 active overvoltage protection unit is a field-proven component that safeguards thyristor field supplies in demanding DC drive systems. Its integration with DCS800 and legacy DCF500 platforms ensures reliable operation of large motor fields while minimizing risk of voltage-induced damage. For project-specific engineering, compatibility verification, or spare part planning, always consult the latest ABB DCS800/DCS500 documentation, technical data sheets, and authorized support channels.
