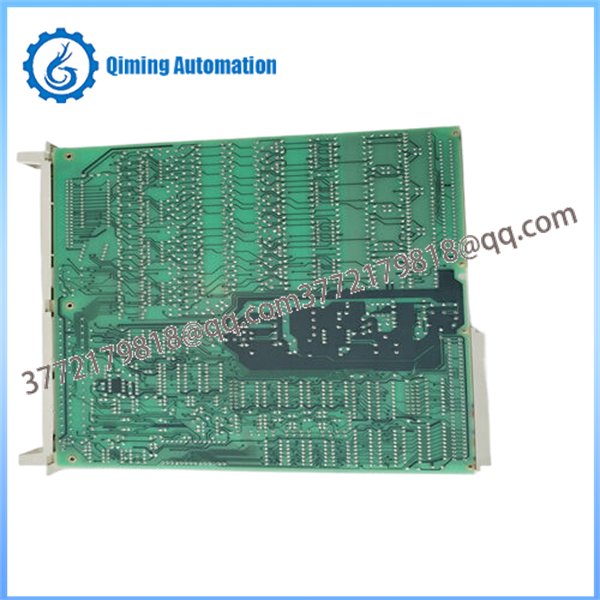

The ABB DSAI130 (part number 57120001-P) and its enhanced variant DSAI 130A (3BSE018292R1) are 16-channel differential analog input boards designed for the Advant Master S100 I/O system. These boards acquire high-level analog signals from field transmitters and sensors, converting them into digital values for processing by Advant Controller 400 Series or compatible AC 800M systems with S100 I/O support.

The DSAI 130/130A is part of the S100 I/O family, which provides modular, rack-based I/O for demanding process control applications. It features 16 differential input channels with galvanic isolation, supporting voltage (±10 V) and current (±20 mA) signals. The DSAI 130A variant offers improved performance and is the preferred choice in many installations. A DSAI 130D version with multiple filter time constants is also available for applications requiring selectable noise filtering.

Engineers select the DSAI 130 series for its high accuracy, fast conversion time (typically 0.1 ms), and robust design in harsh industrial environments. It integrates seamlessly with S100 bus extenders (e.g., DSBC 173A) and supports distributed I/O configurations up to 12 m bus length. Compared to higher-density modules like DSAI 133 (32 channels), the DSAI 130 provides a balanced solution with excellent signal integrity and diagnostics, making it suitable for both new S100 I/O racks and long-term maintenance of legacy Advant Master systems.

The DSAI 130 / 130A excels in precise analog signal acquisition:

16 Differential Analog Input Channels: Supports voltage (±10 V) and current (±20 mA or 4–20 mA) signals with high common-mode rejection for noisy environments.

High Accuracy and Resolution: Typical accuracy of 0.025% of span with 12–16 bit effective resolution, ensuring reliable process measurements.

Fast Conversion Time: Approximately 0.1 ms per module, enabling quick response in control loops.

Galvanic Isolation: Channel-to-channel and channel-to-system isolation for enhanced safety and noise immunity.

Built-in Diagnostics: Self-monitoring for over/under-range conditions, open circuits (in current mode), and module faults, with LED indicators and system alarm reporting.

Configurable Filtering: DSAI 130D variant provides multiple selectable filter time constants for optimal noise suppression without sacrificing response time.

S100 Bus Integration: Communicates via the S100 I/O bus with support for bus extension and hot-swap capability in qualified configurations.

Robust EMC Design: High immunity to electromagnetic interference, suitable for substations and heavy industrial plants.

These capabilities support accurate monitoring of process variables such as pressure, flow, level, temperature (via transmitters), and electrical signals in continuous control applications.

Key specifications for the ABB DSAI130 / DSAI 130A:

• Number of Channels: 16 differential analog inputs

• Input Ranges: Voltage: ±10 V; Current: ±20 mA (or 4–20 mA with external shunt where applicable)

• Resolution: High-resolution A/D conversion (typically 12–16 bits effective)

• Accuracy: Approx. 0.025% of span (typical)

• Conversion Time: 0.1 ms for the module

• Isolation: Galvanic isolation between channels and to system logic

• Power Supply: Provided via S100 I/O rack backplane (24 V DC typical)

• Power Consumption: Low, consistent with S100 analog input boards

• Operating Temperature: 0 °C to +55 °C (standard industrial range)

• Dimensions: Approx. 324 mm × 225 mm × 22.5 mm (length × width × height)

• Weight: Approximately 0.32 kg

• Mounting: Plug-in board into S100 I/O subrack

• Connectors: Standard S100 front connectors for field wiring

The board requires proper hardware licensing on the controller when ordering spares. Exact performance depends on the system configuration and software version. Consult the Advant Master S100 I/O system documentation for detailed terminal assignments and calibration procedures.

The DSAI 130 / 130A is widely used in process automation where reliable analog input acquisition is essential:

Power Generation: Monitoring of boiler parameters, turbine auxiliaries, generator signals, and emissions in thermal or combined-cycle plants.

Oil & Gas and Petrochemical: Acquisition of pressure, flow, level, and temperature signals from smart or conventional transmitters.

Chemical and Pharmaceutical: Precise process variable monitoring in reactors, distillation, and batch operations.

Water & Wastewater: Pump, valve, and treatment process measurements.

Metals, Pulp & Paper, and Cement: Heavy industrial applications requiring high signal integrity in electrically noisy environments.

Typical scenarios include expansion of existing Advant Master S100 I/O racks, replacement of legacy analog input boards, and hybrid systems integrating S100 I/O with AC 800M controllers. For applications needing more channels, consider the DSAI 133 series. In high-speed or low-noise requirements, the fast conversion time and selectable filters (DSAI 130D) provide clear advantages over slower modules.

Mounting: Insert the DSAI 130 / 130A into the designated slot of the S100 I/O subrack. Ensure proper mechanical locking and alignment with the backplane.

Field Wiring: Use shielded twisted-pair cables for analog signals. Connect to the front terminals observing polarity and differential pairing. Ground shields at one end only to avoid ground loops.

Power and Bus Connection: The module receives power from the S100 rack backplane. Verify bus extenders (e.g., DSBC 173A) and maximum cable lengths (up to 12 m) when using distributed configurations.

Configuration: Define the board in the Advant Master engineering tools or Compact Control Builder AC 800M. Set channel ranges, scaling, alarms, and filtering parameters. Perform cold commissioning and loop checks.

Safety: Installation and commissioning must be performed by qualified personnel. De-energize the I/O rack section during wiring where possible. Observe ESD precautions and follow ABB safety guidelines for S100 I/O hardware.

Refer to the Advant Master S100 I/O system manuals for detailed wiring diagrams, torque values, and commissioning procedures.

The DSAI 130 / 130A is designed for long-term, low-maintenance operation:

• Routine Inspections: Periodically check LED status indicators for module health and channel faults. Verify cable connections and terminal tightness. Ensure the cabinet environment stays within temperature and humidity limits.

• Diagnostics: Monitor channel status, alarms, and module diagnostics through the Advant Controller or System 800xA operator stations. Use event logs for trend analysis.

• Calibration: Perform periodic verification of accuracy using calibrated test equipment if required by process standards.

Simple Troubleshooting:

• No Signal or Incorrect Reading: Verify transmitter output, wiring polarity, shield grounding, and channel configuration (range/scaling). Check for open circuits in current mode.

• Over/Under-Range Alarms: Inspect field device output and loop power. Adjust scaling or filtering if noise is suspected.

• Module Fault or No Communication: Confirm proper seating in the S100 subrack and backplane power. Check bus extender connections and addresses.

• Noisy or Unstable Measurements: Enable or adjust filter settings (especially on DSAI 130D). Improve cable routing and grounding to reduce electromagnetic interference.

For persistent issues, download diagnostic data and contact ABB support with the system version, board revision, and detailed fault descriptions. Stocking spare DSAI 130A modules is recommended for critical loops to minimize downtime.

The ABB DSAI 130 / DSAI 130A analog input board delivers high-accuracy, differential signal acquisition that has proven reliable in thousands of Advant Master and S100 I/O installations worldwide. Its fast response, robust isolation, and diagnostic features support safe and efficient process control across demanding industries. For project-specific engineering, compatibility with current Advant or AC 800M systems, or spare part strategies, always consult the latest ABB Advant Master S100 I/O documentation and authorized technical support.
