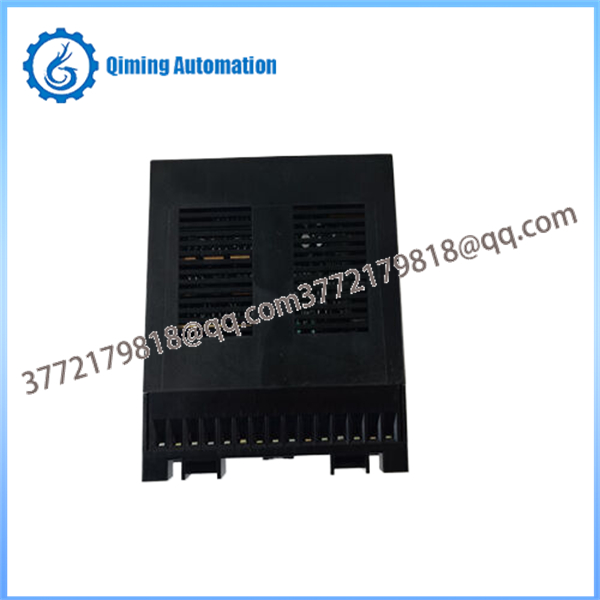

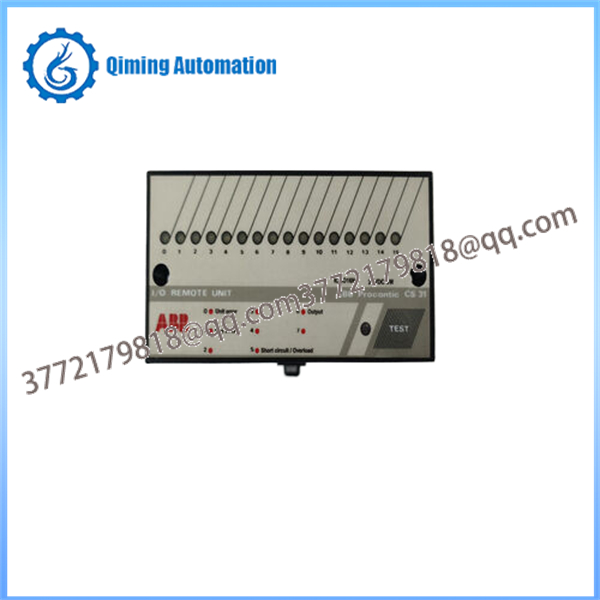

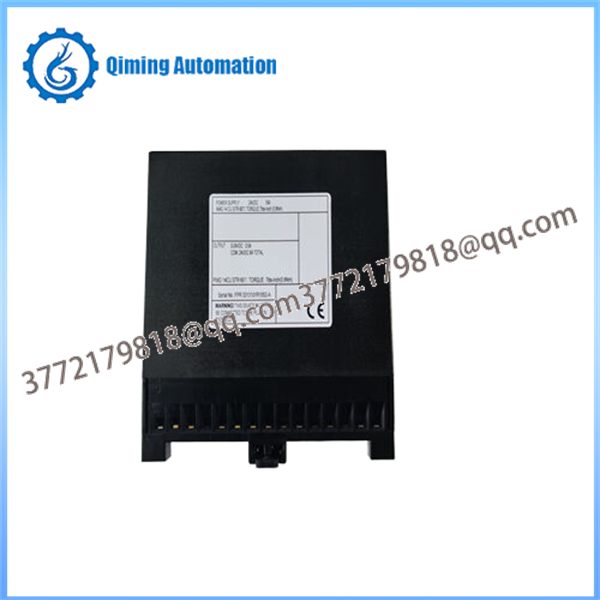

The ABB CS31ICSO16N1 (also referred to as ICSO16N1 or ICSO 16 N1) is a 16-channel galvanically isolated digital output remote module belonging to the ABB Procontic CS31 decentralized automation system. It provides reliable transistor outputs for controlling actuators, solenoids, valves, contactors, and other binary field devices in distributed I/O architectures.

As part of the CS31 family, the module connects via the CS31 system bus to a central processing unit (such as 07 KT 9x series or Advant Controller 31) or compatible AC 800M setups with appropriate adapters. It enables cost-effective remote placement of I/O near field devices, significantly reducing wiring costs and installation time compared to centralized rack-based systems. The CS31ICSO16N1 features short-circuit and overload protection on outputs, making it suitable for robust industrial environments.

Compared to the 8-channel ICSO08 variants, the CS31ICSO16N1 offers higher channel density in a compact remote unit. It is commonly used in legacy Procontic CS31 installations and remains available as a spare part for brownfield expansions or maintenance. For modern AC 800M systems, it integrates via CS31 bus adapters or termination bases (e.g., TK850), providing a migration path from older decentralized setups while preserving existing field wiring.

16 Isolated Transistor Outputs: Each channel provides a 24 V DC transistor output rated at 0.5 A continuous, with galvanic isolation for noise immunity and protection against ground loops.

Short-Circuit and Overload Protection: Built-in diagnostics detect and respond to faults such as short circuits or overloads, with status reporting back to the central unit.

CS31 System Bus Integration: High-speed serial bus communication (typical transmission time contribution around 340 µs per module) supporting decentralized topologies up to 30 remote units.

Diagnostic Feedback: Channel-specific fault signaling (overload, short circuit, wire break in some configurations) transmitted via the bus for centralized monitoring and alarm generation.

Flexible Addressing: Configurable station address on the CS31 bus for easy integration into multi-unit networks.

Robust Design: Suitable for harsh industrial conditions, with high EMC immunity and vibration resistance typical of the CS31 platform.

Hot-Swap and Replacement Support: Modules can be replaced on the live bus in many configurations with proper procedures.

These features allow direct control of field actuators while minimizing downtime through comprehensive diagnostics and decentralized placement.

Number of Channels: 16 digital outputs (DO), transistor type

Output Voltage: 24 V DC nominal

Output Current: 0.5 A per channel (continuous); total module current limited by power supply

Isolation: Galvanic isolation between channels/groups and to the system bus

Short-Circuit/Overload Protection: Yes, with automatic or reported shutdown

Bus Interface: CS31 system bus (serial, decentralized)

Power Supply: 24 V DC for module electronics and outputs (external supply required)

Power Consumption: Approximately 5 W (typical, load-dependent)

Operating Temperature: Standard industrial range (typically 0 °C to +55 °C; consult exact manual for extended ratings)

Protection Class: IP20 (for cabinet installation)

Bus Transmission Time Contribution: Approx. 340 µs (per system documentation for ICSO 16 N1)

Mounting: Remote unit, typically DIN-rail or panel-mounted near field devices

Connectors: Screw terminals for field wiring and CS31 bus connection

The module supports group isolation in most configurations. Exact performance depends on the central unit software version and bus loading. For detailed terminal assignments and addressing, refer to the Procontic CS31 system manuals.

The CS31ICSO16N1 is deployed in distributed automation where remote binary control is required:

Manufacturing and Machine Building: Control of pneumatic valves, solenoids, and motor starters in assembly lines or packaging machines.

Process Industry: Actuator control in chemical, pharmaceutical, or food & beverage plants for valves and dampers.

Material Handling and Intralogistics: Conveyor systems, sorting devices, and auxiliary controls.

Power Generation and Utilities: Auxiliary systems and remote actuator management in auxiliary power or water treatment.

Marine and Legacy Installations: Generator auxiliaries or shipboard automation where CS31 systems are still in service.

Typical scenarios include decentralized I/O expansion of existing CS31 systems, replacement of failed output modules, and hybrid setups integrating CS31 remote units with newer AC 800M controllers via adapters. For higher current requirements or relay outputs, consider variants like ICSO08 R1/Y1. In safety-related applications, evaluate certified modules from the same family. When full migration to modern platforms is planned, the CS31ICSO16N1 supports phased upgrades while reusing field wiring.

Mounting: Install the module close to the actuators to minimize cable length. Use DIN-rail mounting in control cabinets or junction boxes. Ensure proper grounding and shielding of the CS31 bus cable.

Power Supply: Connect a stable 24 V DC supply capable of handling the total output load (max 8 A for 16 channels at 0.5 A). Separate logic and load supplies where recommended.

Bus Connection: Use the correct CS31 bus cable with proper termination and shielding. Assign a unique address to the module and verify bus topology (max distance and number of units per segment).

Field Wiring: Connect outputs to actuators using appropriately sized cables. Observe polarity and group outputs by load type to maintain isolation. Use fuses for additional protection if required.

Configuration: Set the module address via DIP switches or software (depending on version). Configure diagnostics and reaction to faults in the central unit program. Perform loop checks during commissioning.

Only qualified personnel should perform installation. Follow EMC guidelines for cabling and grounding. De-energize the bus section if hot-swap is not supported in the specific setup. Refer to the Advant Controller 31 / Procontic CS31 hardware and system manuals for detailed wiring diagrams and bus parameter settings.

The CS31ICSO16N1 requires minimal routine maintenance due to its solid-state design:

Routine Inspections: Periodically check LED indicators (if equipped) for output status and fault signals. Verify cable connections, terminal tightness, and cabinet temperature/humidity levels. Clean dust from the module exterior when powered down.

Diagnostics: Monitor fault bits and error words from the central unit for overload, short-circuit, or communication issues. Use system event logs for analysis.

Preventive Actions: Test output functionality during scheduled plant shutdowns. Keep spare modules on site for critical applications.

Simple Troubleshooting:

Output Not Activating: Verify 24 V DC supply, field wiring continuity, and actuator operation. Check module address and configuration in the central program. Confirm no bus errors.

Overload/Short-Circuit Alarm: Identify the affected channel via diagnostics. Disconnect the load and measure resistance. Replace wiring or actuator if faulty; reset the module if supported.

No Communication with Module: Check CS31 bus cable integrity, termination, shielding, and power to the module. Verify addressing and bus loading. Use bus diagnostic tools if available.

Intermittent Operation: Inspect for loose terminals, electromagnetic interference, or voltage drops under load. Improve grounding or cable routing as needed.

Module Not Recognized: Confirm correct bus topology and software compatibility with the central unit. Swap with a spare module to isolate the issue.

For persistent faults, download error logs from the central unit and contact ABB support with the system version, module address, and detailed symptoms. Regular backups of the application program ensure quick recovery after module replacement.

The ABB CS31ICSO16N1 provides a proven, high-density solution for distributed digital output control in the Procontic CS31 system. Its isolation, protection features, and bus integration deliver reliable performance and reduced wiring in legacy and hybrid automation architectures. For detailed project engineering, compatibility with specific central units, or migration planning to newer platforms, always consult the latest ABB Procontic CS31 documentation and authorized technical support.
