The ABB CMA120, with part number 3DDE300400, is the Basic Controller Panel Unit designed for the ABB SYNPOL D system. It serves as a compact, integrated Human-Machine Interface (HMI) and controller for generator control and management applications, particularly in marine, power generation, and industrial standby power systems.

The CMA120 combines a front-panel operator interface (keypad and display) with the core control logic in a single unit. It is mounted directly on the generator set or in a dedicated control cabinet, providing local monitoring, parameter adjustment, alarm handling, and basic automatic start/stop sequencing for diesel or gas generators. The unit is part of the SYNPOL D family, which is widely used for single or multi-generator control in shipboard power systems, emergency power supplies, and isolated grids.

Engineers and marine technicians value the CMA120 for its robust, marine-certified design, straightforward operation, and direct integration with SYNPOL D expansion modules (such as CMA131, CMA132, CMA135, CMA136 for additional I/O). Compared to more advanced System 800xA or AC 800M solutions, the CMA120 offers a cost-effective, standalone or semi-distributed solution for basic generator management where simplicity, reliability, and local control are prioritized. It supports legacy and current SYNPOL D installations, with spares still available for long-service marine and industrial fleets.

The CMA120 3DDE300400 delivers essential generator control capabilities through its integrated panel and controller:

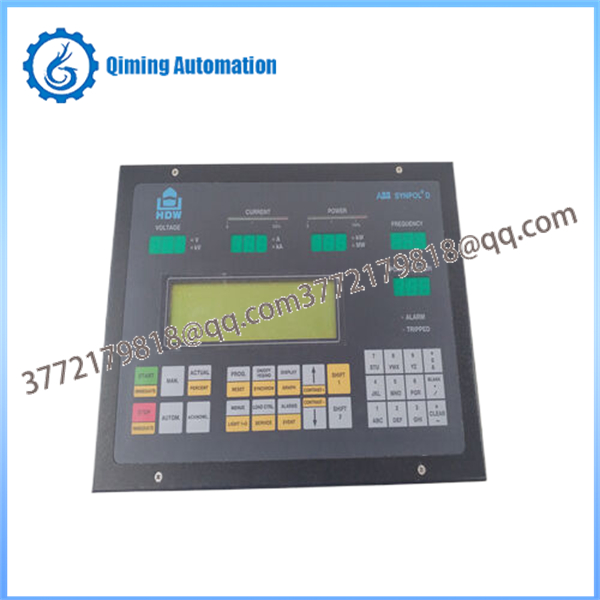

Local Operator Interface: Keypad with function keys and graphical/alpha-numeric display for viewing generator parameters (voltage, current, frequency, power, speed, hours run, etc.), alarms, and event logs.

Generator Control Logic: Automatic and manual start/stop sequences, synchronization readiness signals, load sharing support (when combined with additional modules), and protection functions (over/under voltage, frequency, reverse power, etc.).

Parameter Monitoring and Adjustment: Real-time display and modification of setpoints, alarm limits, and configuration parameters via the front panel.

Alarm and Event Management: Audible/visual alarms, historical event logging with time stamps, and acknowledgment functions.

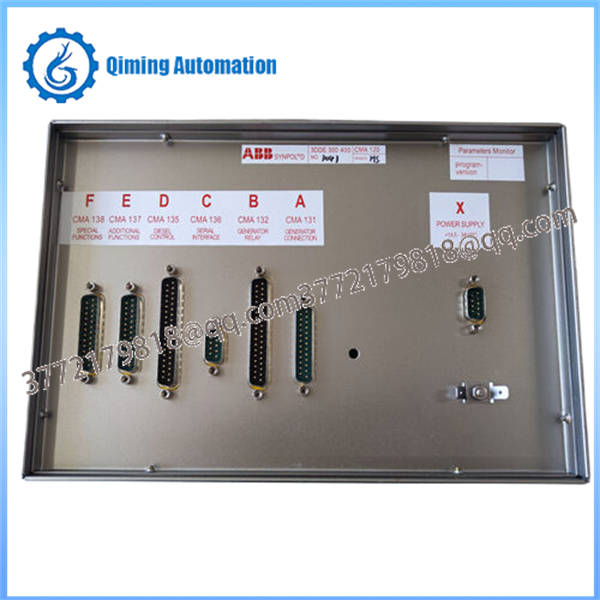

I/O Expansion Support: Interfaces with SYNPOL D extension modules for additional digital/analog inputs and outputs, enabling scalable configurations for multi-generator or complex auxiliary control.

Communication: Basic serial or internal bus links to other SYNPOL D components and optional higher-level systems.

Marine-Grade Design: Vibration-resistant mounting, robust enclosure suitable for engine room or bridge environments, with clear-text messages and intuitive navigation.

These functions ensure safe, reliable generator operation with minimal training required for operators, while providing essential diagnostics for maintenance crews.

Part Number: 3DDE300400 (CMA120 Basic Controller Panel Unit)

Power Supply: 24 V DC (nominal), typical consumption around 10 W

Display: Integrated graphical or multi-line display with backlight

Keypad: Membrane or rugged keypad with dedicated function keys

I/O Capacity (base unit): Limited onboard I/O; expandable to 32 digital inputs and 32 digital outputs via extension modules (CMA13x series)

Operating Temperature: Designed for marine/industrial environments (typically –25 °C to +70 °C or per marine classification)

Protection Class: IP-rated front panel suitable for engine room installation

Mounting: Panel or surface mounting with side supports for vibration damping

Dimensions and Weight: Compact form factor (approximate 250 mm × 160 mm × 80 mm or similar panel size); weight around 1–2 kg depending on configuration

Certifications: Marine approvals (e.g., DNV, BV, LR typical for SYNPOL D family); suitable for shipboard and industrial use

Exact I/O mapping, communication protocols, and parameter lists depend on the specific SYNPOL D software version and connected expansion modules. Always verify compatibility with the installed generator control system using ABB SYNPOL documentation.

The CMA120 is primarily deployed in generator control applications:

Marine and Offshore: Main, auxiliary, and emergency generator sets on ships, offshore platforms, and drilling rigs for automatic paralleling, load sharing, and blackout recovery.

Power Generation: Standby diesel generators in hospitals, data centers, and industrial facilities requiring reliable local control.

Industrial Plants: Isolated power systems or cogeneration setups where basic generator management is needed without full DCS integration.

Renewable Hybrid Systems: Control of backup generators in microgrids or wind/solar-diesel combinations.

Typical scenarios include new generator set installations, retrofit of older control panels, and spare part replacements in long-service SYNPOL D systems. For single-generator applications, the CMA120 provides complete local functionality. In multi-generator setups, it works with additional SYNPOL D modules for synchronization and load management. When higher integration or advanced features are required (e.g., full System 800xA or AC 800M), migration paths exist, but the CMA120 remains the preferred choice for cost-sensitive or space-constrained marine environments.

Mounting: Secure the CMA120 using the provided side supports or brackets to withstand vibration and shock (marine classification requirements). Ensure adequate clearance for cable routing and panel access.

Power Supply: Connect to a stable 24 V DC supply with proper fusing and grounding. Observe polarity strictly.

Wiring: Use shielded cables for communication and I/O signals. Connect expansion modules (CMA131 etc.) according to SYNPOL D wiring diagrams. Terminate buses correctly.

Configuration: Set parameters via the front-panel keypad or using ABB configuration tools. Perform functional tests for start/stop sequences, alarms, and protection functions during commissioning.

Safety: Installation and commissioning must be carried out by qualified personnel familiar with marine or industrial generator systems. Follow lock-out/tag-out procedures when working on live generators. Observe all classification society rules (e.g., SOLAS) for emergency power systems.

Refer to the SYNPOL D installation and operation manuals for detailed terminal assignments, parameter lists, and commissioning checklists.

The CMA120 is designed for long-term, low-maintenance operation in harsh environments:

Routine Inspections: Periodically check the display for clear visibility, keypad functionality, and secure mounting. Clean the front panel with non-abrasive materials when powered off. Verify cable connections and grounding.

Diagnostics: Use the built-in alarm and event logs to monitor system health. Regularly test protection functions during scheduled generator maintenance.

Backup: Maintain current parameter settings and software backups where supported.

Simple Troubleshooting:

Blank Display or No Power: Verify 24 V DC supply voltage and connections. Check fuses.

Unresponsive Keypad: Clean the membrane keypad and test individual keys. Check for moisture ingress.

Alarm or Fault Indications: Review event logs for specific messages (e.g., sensor faults, communication errors). Inspect connected sensors, wiring, and extension modules.

Generator Not Starting/Stopping Correctly: Confirm parameter settings match the engine requirements. Test manual mode operation first. Check I/O signals from expansion modules.

Communication Issues with Modules: Verify module seating, addressing, and bus termination. Swap suspected modules to isolate the fault.

For persistent problems, record error messages and contact ABB support or authorized marine service partners with the system serial number and software version. Stocking spare CMA120 units or key extension modules is recommended for critical generator applications to enable rapid replacement.

The ABB CMA120 3DDE300400 Basic Controller Panel Unit continues to provide dependable, user-friendly control for SYNPOL D generator systems across marine and industrial applications. Its integrated HMI and controller design, combined with proven reliability, delivers long-term value in environments where simplicity and robustness are essential. For detailed engineering, parameter configuration, or migration guidance, always consult the latest SYNPOL D documentation and ABB authorized support.
