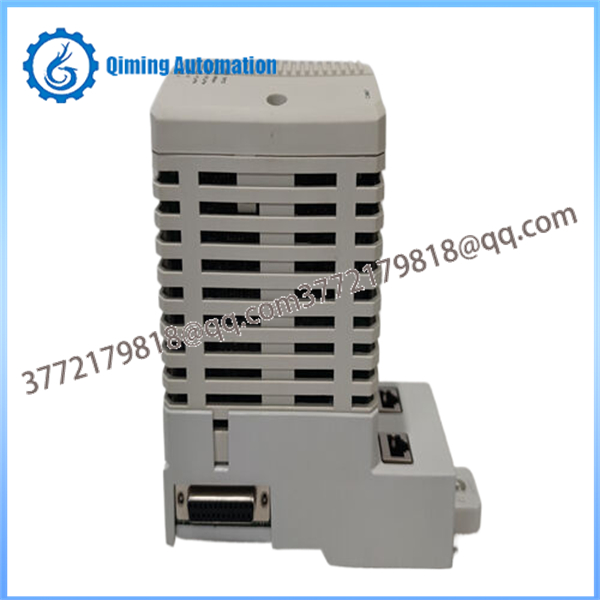

The ABB CI867 3BSE043661R1 is the Modbus TCP communication interface module for the ABB AC 800M controller platform, used within System 800xA and other AC 800M-based automation systems. It enables reliable, high-speed Ethernet-based data exchange between the AC 800M controller and external devices or systems that support the Modbus TCP protocol, such as remote I/O, variable frequency drives, power meters, PLCs, SCADA systems, and third-party instruments.

The CI867 supports both master and slave modes, allowing the AC 800M to act as a Modbus TCP client (master) or server (slave). It features dual Ethernet ports (typically with Channel 1 at 10/100 Mbit/s) for flexible network topologies. The module mounts on the TP867 baseplate and connects directly to the CEX bus of the AC 800M.

Compared to serial Modbus RTU solutions (e.g., via CI853), the CI867 provides significantly higher throughput, easier network integration, and native Ethernet connectivity without additional converters. The CI867A variant (3BSE092689R1) serves as the updated successor with improved features and full support for high-integrity (HI) controllers, while the original CI867 remains available for spares and legacy systems. Engineers select the CI867 for cost-effective integration of Modbus TCP devices in process control, where deterministic performance and simple configuration are required.

The CI867 delivers robust Modbus TCP connectivity with the following capabilities:

Modbus TCP Master/Slave Operation: Supports Modbus function codes for reading/writing coils, discrete inputs, holding registers, and input registers. The controller can poll multiple slave devices or respond to requests from external masters.

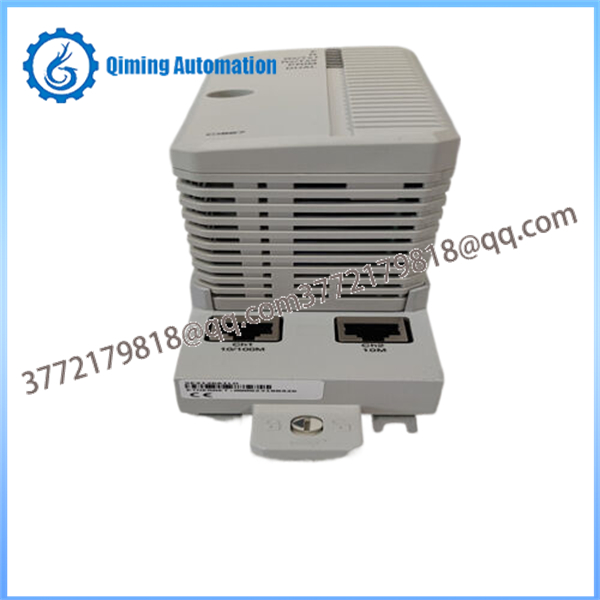

Dual Ethernet Channels: Channel 1 supports 10/100 Mbit/s for primary communication; Channel 2 provides additional flexibility (typically 10 Mbit/s). Ports use standard RJ-45 connectors.

High Data Throughput: Independent of controller CPU load, enabling efficient exchange of large data volumes (up to thousands of signals per second depending on configuration).

Module Redundancy: Supports 1+1 redundancy configurations for increased availability in critical applications.

Hot Swap Capability: The module can be replaced during operation without shutting down the controller or other CEX bus modules.

Network Integration: Seamless connection to plant Ethernet networks, with support for standard IP addressing, routing, and integration into switched Ethernet infrastructures.

Diagnostics and Supervision: Detailed status information, including link status, communication errors, and Modbus exception codes, is available in the controller and System 800xA for troubleshooting and asset monitoring.

CEX Bus Compatibility: Mounts on the AC 800M CEX bus; up to 12 communication modules per controller (configuration-dependent).

These features simplify integration of Modbus TCP-compatible equipment while maintaining high performance and system reliability.

Key specifications for the ABB CI867 3BSE043661R1 (and associated CI867K01 kit):

Protocol: Modbus TCP (Master and Slave)

Number of Channels: 2 Ethernet ports (Ch1: 10/100 Mbit/s; Ch2: typically 10 Mbit/s)

Transmission Speed: 10/100 Mbit/s on primary channel

Connector: RJ-45 female (8-pin) per channel

Power Supply: 24 V DC via CEX bus

Power Consumption: Typical 160 mA at 24 V DC

Maximum Units on CEX Bus: 12

Operating Temperature: 0 °C to +55 °C (+32 °F to +131 °F)

Storage Temperature: –40 °C to +70 °C (–40 °F to +158 °F)

Relative Humidity: 5 to 95 %, non-condensing

Protection Class: IP20 (EN 60529 / IEC 529)

Dimensions (H × W × D): 185 mm × 59 mm × 127.5 mm (7.3 in × 2.3 in × 5.0 in)

Weight (including baseplate TP867): Approximately 700 g (1.5 lbs)

Certifications: CE marking, UL 508, UL 60079-15 (Class 1, Zone 2 in qualified configurations), marine approvals (DNV-GL, others pending/available), RoHS and WEEE compliant, G3 corrosion protection (ISA 71.04)

The module uses standard CAT5/CAT5e or better Ethernet cabling. Configuration of Modbus mappings, IP addresses, and polling rates is performed in Control Builder or System 800xA engineering tools. For exact performance limits (e.g., number of connections or registers), refer to the AC 800M Communication Protocols manual.

The CI867 is deployed in a wide range of process and hybrid automation applications requiring Modbus TCP integration:

Oil & Gas and Petrochemical: Connecting to flow computers, analyzers, tank gauging systems, and third-party PLCs.

Power Generation and Utilities: Integration of electrical meters, protection relays, and auxiliary systems.

Chemical and Pharmaceutical: Linking batch controllers, weighing systems, and laboratory instruments.

Water & Wastewater Treatment: Communication with pumps, valves, and remote telemetry units.

Metals, Mining, and General Manufacturing: Motor control, conveyor systems, and material handling equipment with Modbus TCP interfaces.

Typical scenarios include new AC 800M projects integrating mixed-vendor equipment, retrofits replacing serial Modbus links with Ethernet, and expansions where high data volumes or network segmentation are needed. For applications requiring line redundancy, consider other modules (e.g., CI871 for PROFINET). In high-availability setups, use redundant CI867 pairs. When migrating to newer systems, the CI867A offers enhanced HI controller support.

Mounting: Install the CI867 on the TP867 baseplate and mount the assembly on the DIN rail in the AC 800M rack. Ensure secure CEX bus connection and mechanical locking.

Ethernet Cabling: Use shielded or unshielded twisted-pair cables (CAT5e or better). Connect to RJ-45 ports. Separate control and plant networks using switches, VLANs, or firewalls as required for security and performance.

Power and Configuration: Power is supplied via the CEX bus. Assign unique IP addresses and configure Modbus TCP parameters (port 502 by default, slave addresses, function codes, and data mapping) using Control Builder M or System 800xA tools. Download the configuration to the controller.

Redundancy Setup: For module redundancy, install two CI867 units and configure failover logic in the application.

Safety: Only qualified personnel should perform installation. Observe ESD precautions. In hazardous areas, verify certification and follow applicable standards. Use proper network security practices (e.g., segmentation) to protect against cyber risks.

Refer to the AC 800M Communication Protocols manual and CI867 data sheet for detailed wiring, IP configuration, and Modbus mapping guidelines.

Daily Maintenance and Simple Troubleshooting

The CI867 is a solid-state module requiring minimal routine maintenance:

Routine Inspections: Periodically check module LEDs for link/activity status, power, and fault indications. Verify Ethernet cable connections and ensure the cabinet environment remains within specified temperature and humidity limits.

Diagnostics: Monitor communication status, error counters, and Modbus exceptions via the controller diagnostics or System 800xA operator stations. Use network tools (e.g., ping, Wireshark) for Ethernet troubleshooting.

Configuration Backup: Maintain current project backups including Modbus mappings.

No Communication: Verify Ethernet link LEDs, IP address configuration, subnet matching, and cable integrity. Confirm Modbus port (default 502) is open and firewall rules allow traffic.

Intermittent Connection: Check for network congestion, duplicate IP addresses, or cable damage. Reduce polling rate or optimize data block sizes.

Modbus Exceptions or Data Errors: Review mapping configuration (register addresses, function codes, byte ordering). Test individual read/write operations from the engineering tool.

Redundancy Issues: Confirm both modules are properly seated and configured for failover. Test manual switchover.

Module Not Recognized: Check CEX bus loading, firmware compatibility with the AC 800M CPU, and module seating. Swap with a spare to isolate.

For persistent faults, collect diagnostic logs from the controller and contact ABB support with the system version, module firmware, network topology, and detailed error descriptions. Stock spare CI867 modules for critical applications to minimize downtime.

The ABB CI867 3BSE043661R1 provides a reliable, high-performance Modbus TCP interface that simplifies integration of Ethernet-based devices into AC 800M control systems. Its dual-channel design, master/slave flexibility, and redundancy options deliver long-term value in modern industrial automation. For new projects, evaluate the CI867A successor where enhanced features are needed; for existing installations, the CI867 ensures continued support. Always consult the latest ABB documentation, hardware selector, and configuration manuals for project-specific details and compatibility.
