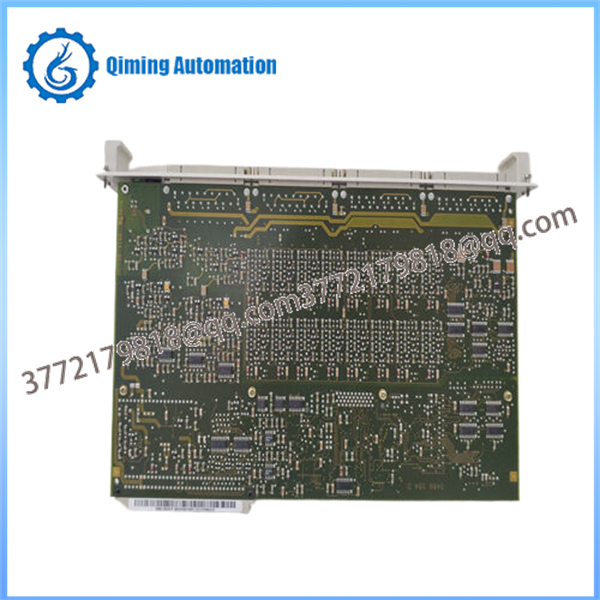

The ABB 3BDH000730R1 is the CBI 20-P binary input module designed for the ABB Symphony Plus distributed control system (DCS). This high-performance digital input module provides 32 galvanically isolated binary input channels, enabling reliable acquisition of field signals in process automation applications.

As part of the Symphony Plus I/O family, the CBI 20-P (3BDH000730R1) supports standard binary signals at multiple voltage levels and various sensor types, including dry contacts and NAMUR initiators. It features onboard transmitter power supply and per-module galvanic isolation, ensuring robust performance in electrically noisy industrial environments typical of power generation, chemical processing, and other heavy industries.

Software version starts from 1.31, with compatibility for current Symphony Plus controllers and Harmony rack or SDe evolution mounting bases. The module offers a cost-effective, scalable solution for expanding binary I/O capacity while maintaining full integration with the Symphony Plus engineering tools and operator stations. Compared to earlier CBI 20 variants or modules with fewer channels, the CBI 20-P provides higher channel density and enhanced signal scanning flexibility, making it suitable for both new installations and system expansions or modernizations where backward compatibility is required.

The 3BDH000730R1 CBI 20-P excels in binary signal processing with the following capabilities:

32 Binary Input Channels: Module-wise galvanically isolated inputs for enhanced noise immunity and safety.

Multi-Voltage Signal Support: Configurable for 48 V, 24 V, and 8.2 V standard binary signals.

Contact Scanning: Supports changer (change-over), opener (NC), and closer (NO) dry contacts, with up to 32 NC or 32 NO contacts per module depending on configuration.

NAMUR Initiator Compatibility: Direct connection of 3-wire or 4-wire NAMUR proximity sensors with integrated transmitter power supply (typically 8.2 V).

Onboard Transmitter Supply: Eliminates the need for external power sources for many field devices, simplifying wiring and reducing cabinet space.

Diagnostic Functions: Channel-level status monitoring and fault detection integrated into the Symphony Plus system diagnostics.

High Reliability: Designed for continuous operation in harsh environments, with low power consumption and support for redundant configurations where required by the controller setup.

Seamless Integration: Full compatibility with Symphony Plus HR (Harmony Rack), SD, and SDe series controllers, allowing direct use in existing or evolving systems without major rewiring.

These features enable precise monitoring of field devices such as limit switches, push buttons, valve position feedbacks, motor run/stop signals, and safety interlocks, contributing to improved process visibility and control reliability.

Key specifications for the ABB 3BDH000730R1 CBI 20-P:

Number of Channels: 32 binary inputs (DI)

Input Voltage Levels: 48 V DC, 24 V DC, 8.2 V DC (standard binary signals)

Signal Types: Dry contacts (NO/NC/change-over), NAMUR initiators (3-/4-wire)

Isolation: Galvanic isolation per module

Transmitter Power Supply: Integrated for NAMUR sensors

Software Version: From 1.31 onward

Dimensions (L × H × W): 204 mm × 340 mm × 45 mm

Weight: 0.69 kg

Mounting: Compatible with Harmony Rack or DIN-rail bases in Symphony Plus systems

Operating Environment: Designed for industrial conditions (consult specific Symphony Plus hardware manuals for exact temperature, humidity, and vibration ratings)

Power Consumption: Low, consistent with SD/SDe series I/O modules

Accessories: Requires 4 pcs. CI 100/101 and A801/701 cable clamps for field termination

Channel configuration and filtering parameters are set via the Symphony Plus engineering tools. Always verify the exact optical or electrical characteristics against the latest module firmware and system release notes for the specific project.

The CBI 20-P 3BDH000730R1 is widely used in process industries where reliable binary signal acquisition is essential:

Power Generation: Monitoring of turbine auxiliaries, switchgear status, pump/valve positions, and breaker feedbacks in thermal, hydro, or combined-cycle plants.

Oil & Gas and Petrochemical: Acquisition of field signals from compressors, separators, flare systems, and safety shutdown circuits.

Chemical and Pharmaceutical: Process interlocks, batch sequence monitoring, and equipment status in hazardous or cleanroom environments.

Water & Wastewater Treatment: Level switches, pump run indications, and valve controls in treatment plants.

Metals and Mining: Conveyor systems, crusher status, and material handling interlocks.

Typical scenarios include expansion of existing Symphony Plus installations, migration from legacy Harmony or Contronic systems, and new greenfield projects requiring high-density binary I/O. For applications needing analog inputs or outputs, combine with corresponding AI/AO modules in the same rack or cluster. When higher channel counts or special functions (e.g., SOE with higher resolution) are required, evaluate other binary input modules in the Symphony Plus portfolio.

Mounting: Install the module in the designated slot of the Harmony Rack or compatible DIN-rail base. Ensure proper mechanical locking and grounding.

Field Wiring: Use the recommended cable clamps (4 pcs. CI 100/101, A801/701). Follow polarity and shielding requirements for each input type. Group inputs by voltage level where possible to maintain isolation integrity.

Power Supply: Connect the module to the system 24 V DC supply. Verify that the onboard transmitter supply is correctly enabled for NAMUR sensors.

Configuration: Use Symphony Plus Composer or equivalent engineering tools to configure input channels, scanning modes, debounce times, and alarm generation. Perform loop checks during commissioning.

Safety: Installation, wiring, and commissioning must be carried out by qualified personnel in accordance with local regulations and ABB safety guidelines. Observe electrostatic discharge (ESD) precautions when handling the module.

Refer to the CBI 20 Binary Input Module manual and the overall Symphony Plus hardware installation documentation for detailed wiring diagrams, terminal assignments, and torque specifications.

The CBI 20-P module is designed for long-term, low-maintenance operation:

Routine Inspections: Periodically check module LEDs (if equipped), cable connections, and tightness of terminal screws. Ensure the cabinet environment remains within specified temperature and humidity limits. Clean dust from ventilation areas if present.

Diagnostics: Monitor input status and any diagnostic alarms through the Symphony Plus operator station or engineering tools. Use system event logs for time-stamped analysis.

Firmware/Configuration: Updates are performed via the controller tools. Maintain current backups of the application configuration.

Simple Troubleshooting:

No Input Response: Verify field device operation, wiring continuity, correct voltage levels at the terminals, and proper channel configuration. Check for blown fuses or power supply issues.

False or Intermittent Signals: Adjust debounce/filter settings in the configuration. Inspect for loose wiring, electromagnetic interference, or degraded contacts/sensors. Confirm cable shielding and grounding.

Module Not Recognized or Faulty: Check module seating, power supply to the rack, and compatibility with the controller software version. Swap with a spare module to isolate the issue.

NAMUR Sensor Problems: Measure the 8.2 V supply output and sensor current. Clean or replace faulty initiators.

For persistent faults, download diagnostic data and contact ABB support with the system version, module hardware/printer revision, and fault descriptions. Keep spare modules on site for critical applications to minimize downtime.

The ABB 3BDH000730R1 CBI 20-P binary input module delivers reliable, high-density signal acquisition that integrates seamlessly into Symphony Plus control systems. Its flexible input handling, galvanic isolation, and diagnostic capabilities support safe and efficient process operation across a wide range of industrial applications. For project-specific engineering, configuration details, and compatibility verification, always consult the latest ABB Symphony Plus documentation and engineering tools.
