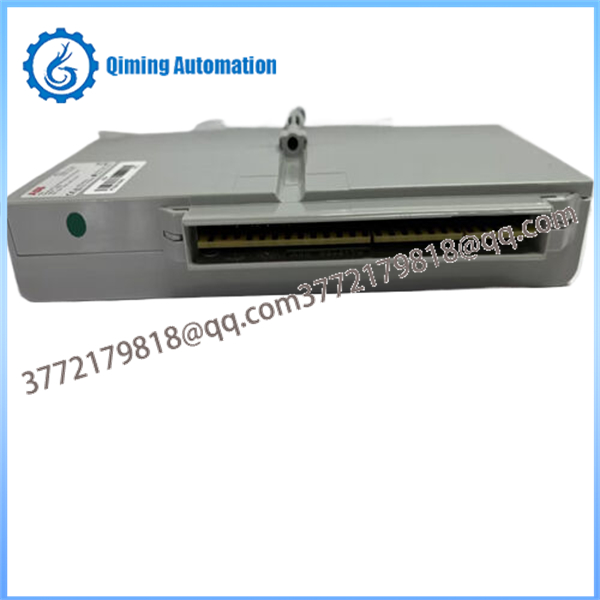

The ABB AI04 is a versatile analog input module available across multiple ABB control system platforms. Depending on the specific variant, the ABB AI04 serves as a 16-channel thermocouple/millivolt input module for Symphony Plus systems , a 4-channel universal analog input module for S800 I/O and AC 800M controllers , or a high-precision analog input module for Advant OCS platforms . With features including 16-bit resolution, automatic calibration, cold junction compensation, and hot-swap capability, the ABB AI04 delivers reliable signal acquisition for demanding industrial automation applications. This guide provides comprehensive technical specifications, application examples, installation precautions, and maintenance procedures for all major ABB AI04 variants.

Parameter ABB AI04 (Symphony Plus / S+SD) ABB AI04 (S800 / AC 800M) ABB AI04 (Advant OCS)

Model / Order Code 3BSE008516R1 (S800 variant) 3BSE008516R1 Base model with suffixes

Product Series Symphony Plus / S+SD S800 I/O / AC 800M Advant OCS

Input Channels 16 channels 4 channels 4 channels (fully isolated)

Signal Types Thermocouples (E,J,K,R,S,T,B,L,N,U), mV (±100 mV, 0-100 mV) 4-20mA, 0-20mA, ±10V, 0-10V (software configurable) Voltage (±10V,0-10V,1-5V), Current (0-20mA,4-20mA), RTD (Pt100,Pt1000), TC (J/K/T)

Resolution 16-bit with polarity 16-bit 16-bit with sign

A/D Architecture 4 converters (4 channels each) Per-channel 4 channels fully isolated

Update Time All 16 channels in 300 msec ≥20 Hz per channel 10 ms/channel

Accuracy ±0.05% of FSR (FSR=200mV) ±0.1% of span ±0.1% FS (@25°C)

Power Supply 24V DC, ~2W 24V DC 24V DC ±10%,<3W

Operating Temp -20°C to +60°C / -40°C to +85°C ext 0°C to +60°C -25°C to +70°C

Isolation Group isolated (4 channels/group) 500V RMS (channel-channel & channel-ground) 3000V AC (channel-channel)

HART Support Not applicable Optional (specific firmware) Not specified

Hot Swappable Not specified Yes (with TU8xx base) Yes

Mounting DIN rail DIN rail (requires TB820 base) DIN rail

Dimensions (HxWxD) 35 x 100 x 23 mm 22.5 x 99 x 114 mm Standard S800 form factor

Weight ~0.2 kg 150 g ~0.2 kg

Note: Verify exact specifications with ABB datasheet for your specific ABB AI04 variant and order code.

For ABBAI04 – Symphony Plus (16-Channel TC/mV Variant)

16 Independently Configurable Channels – The ABB AI04 supports up to 16 thermocouple or millivolt input channels, with each channel individually configurable for signal type, engineering units, and alarm limits .

High-Speed A/D Conversion – Equipped with 4 A/D converters (one per 4-channel group), the ABB AI04 completes full 16-channel updates in just 300 milliseconds, ensuring real-time responsiveness for process monitoring .

Automatic Calibration – The ABB AI04 features factory-performed automatic calibration, eliminating the need for manual calibration and reducing maintenance costs over the module's lifetime .

Cold Junction Compensation (CJC) – Configurable CJC using the module mounting base's embedded RTD, an external RTD, or a user-defined application input ensures accurate thermocouple measurements .

Wide Thermocouple Support – The ABB AI04 supports an extensive range of thermocouple types including E, J, K, R, S, T, B, L, N (14 & 28 AWG), U, and Chinese E & S types .

High Measurement Accuracy – Delivers ±0.05% full-scale range accuracy with 16-bit resolution, providing precise data for critical process control loops .

Wide Temperature Operation – Standard operation from -20°C to +60°C, with extended range options from -40°C to +85°C for harsh industrial environments .

For ABB AI04 – S800 / AC 800M (4-Channel Universal Variant)

4 High-Precision Analog Inputs – The ABB AI04 provides 4 fully isolated analog input channels supporting 4-20mA, 0-20mA, ±10V, and 0-10V signals, all software-configurable without hardware jumpers .

Built-in HART Communication – The ABB AI04 variant with HART support includes an integrated HART multiplexer, enabling remote access to intelligent transmitter diagnostics, configuration, and status data through the same 4-20mA wiring .

Hot-Swap Capability – The ABB AI04 supports online replacement when mounted on TU8xx series base units, allowing module replacement without powering down the I/O station or interrupting process control .

Comprehensive Per-Channel Diagnostics – The ABB AI04 features channel-level fault detection including open circuit detection, short circuit detection, and out-of-range alarming, with fault status automatically reported to the controller .

Full Electrical Isolation – The ABB AI04 provides 500V RMS isolation between channels and between channels and ground, effectively suppressing common-mode interference and ground loops in electrically noisy environments .

16-Bit Resolution – High-resolution A/D conversion ensures precise measurement of small signal variations, critical for tight process control tolerances .

For ABB AI04 – Advant OCS Variant

Multi-Signal Flexibility – The ABB AI04 accepts voltage (±10V, 0-10V, 1-5V), current (0-20mA, 4-20mA), RTD (Pt100, Pt1000), and thermocouple (J/K/T) inputs, reducing module inventory requirements .

Smart Signal Self-Diagnostics – Real-time detection of open circuit, out-of-range, and short circuit conditions with LED alarm indication and Sequence of Events (SOE) recording .

Dual Redundant Power Supply – The ABB AI04 supports automatic main/backup power switching with<1ms transfer time, ensuring continuous operation during power supply failures .

Zero Drift Technology – Automatic temperature compensation maintains measurement accuracy across the -25°C to +70°C operating range, with temperature coefficient <±0.01%/°C .

Open Calibration – The ABB AI04 can be remotely calibrated using HART protocol without requiring specialized tools or physical access to the module .

High CMRR – >120 dB common-mode rejection ratio at 50/60 Hz effectively rejects AC line noise in industrial environments .

ABB AI04 (3BSE008516R1) Primary S800 variant – 4-channel universal analog input module, ±10V/0-20mA, with HART option

ABB AI04 (Symphony Plus) 16-channel TC/mV input module – primary variant for temperature measurement applications

ABB AI02J 16-channel high-level analog input module with HART support; alternative to Symphony Plus AI04 for high-level signals

ABB AO02J 16-channel analog output module; output complement to Symphony Plus AI04

ABB DI02J 16-channel digital input module; digital complement to Symphony Plus AI04 for mixed I/O applications

ABB DO02J 16-channel digital output module; pairs with AI04 for complete Symphony Plus I/O configurations

ABB CI854A / CI873 / CI874 Communication interfaces for S800 I/O; connect AI04 to AC 800M controllers via Profibus DP or Ethernet

ABB TB820 Terminal base unit for S800 AI04 – required for mounting, wiring, and hot-swap functionality

ABB AI04A Basic variant of Advant OCS AI04 – 4-20mA dedicated inputs

ABB AI04H High-temperature variant of Advant OCS AI04 – extended range -40°C to +85°C

ABB AI04X Intrinsically safe variant of Advant OCS AI04 – ATEX/IECEx Zone 1 certified

ABB CI801 Communication interface for Advant OCS AI04 – connects to AC 800F controllers

ABB AC 800M Controller (PM861/PM863/PM864) Central processing units commonly paired with S800 AI04 modules for control logic execution

ABB FC 221 / FC 222 I/O Device Definition and Analog Input Channel function blocks for configuring Symphony Plus AI04 parameters

Process Control & Temperature Monitoring – The ABB AI04 (Symphony Plus variant) measures thermocouple signals in chemical reactors, furnaces, kilns, and heat treatment equipment with ±0.05% accuracy and 300ms update speed .

Power Generation – In coal-fired and gas power plants, the ABB AI04 monitors boiler tube temperatures, turbine bearing temperatures, steam temperatures, and generator winding temperatures .

Oil & Gas – The ABB AI04 (S800 variant) collects 4-20mA signals from pressure transmitters, flow meters, and level sensors in upstream wellhead control, midstream pipeline monitoring, and downstream refinery processes .

Chemical & Petrochemical – Reaction vessel temperature and pressure monitoring using the ABB AI04 ensures safe and precise control of exothermic and endothermic reactions .

Water & Wastewater Treatment – The ABB AI04 measures pH, dissolved oxygen, turbidity, flow rate, and tank level signals for treatment process optimization and regulatory compliance .

HVAC & Building Automation – Monitors temperature sensors, pressure transducers, and valve position feedback in commercial building management systems .

Food & Beverage Processing – The ABB AI04 provides temperature monitoring for sterilization tunnels, pasteurizers, ovens, and refrigeration systems in food production facilities .

Pharmaceutical Manufacturing – Cleanroom differential pressure monitoring and bioreactor temperature control using the ABB AI04 ensures GMP compliance and product quality .

Metals & Mining – The ABB AI04 measures kiln exhaust temperatures, bearing vibration signals, and material level indicators in mineral processing and steel production .

Automotive Manufacturing – Paint oven temperature profiling and assembly line machine monitoring using the ABB AI04 improves quality control and predictive maintenance .

Pulp & Paper – The ABB AI04 monitors dryer section temperatures, stock consistency, and chemical dosing rates in paper production lines .

District Heating & Cooling – Temperature and flow measurement in heat exchanger stations and pumping stations for municipal utility networks .

Pre-Installation Verification

Identify the correct variant – Confirm which ABB AI04 variant matches your system: Symphony Plus (16-channel TC/mV), S800/AC 800M (4-channel universal), or Advant OCS .

Verify order code – Check the ABB AI04 label for the complete order code (e.g., 3BSE008516R1 for S800 variant) to ensure compatibility .

Inspect for damage – Visually inspect the ABB AI04 for shipping damage: cracked housing, bent pins, or signs of moisture ingress.

Gather documentation – Obtain the official ABB datasheet and wiring diagram for your specific ABB AI04 variant.

For ABB AI04 – Symphony Plus (16-Channel TC/mV) Installation

De-energize the I/O station – Isolate power to the Symphony Plus I/O cabinet before handling the ABB AI04.

Mount the module – Insert the ABB AI04 into the designated slot in the Symphony Plus I/O rack, ensuring alignment with guide rails. Press firmly until the locking mechanism engages.

Connect field wiring – Connect thermocouple or millivolt signal wires to the appropriate terminals on the ABB AI04 using shielded twisted-pair cables (0.08-1.5mm²). Follow the terminal assignment diagram on the module label.

Configure in software – Using Symphony Plus Composer or Harmony engineering tools, define the ABB AI04 using FC 221 (I/O Device Definition) function block to set operating parameters .

Configure individual channels – For each of the 16 channels on the ABB AI04, use FC 222 (Analog Input CH) function block to set thermocouple type, engineering units, high/low alarm limits, and filtering .

Configure Cold Junction Compensation – Select CJC method for the ABB AI04: built-in RTD on mounting base, external RTD connected to TB3, or user-defined application input .

Apply power – Energize the I/O station and verify the ABB AI04 power LED illuminates.

Verify operation – Monitor input values via the engineering workstation and verify correct readings against known signal sources.

For ABB AI04 – S800 / AC 800M (4-Channel Universal) Installation

Mount the terminal base – Install a TB820 terminal base unit on DIN rail TH35-7.5 or TH35-15. The ABB AI04 requires this base for proper operation and hot-swap functionality .

Install the module – Align the ABB AI04 with the guide rails on the TB820 base and press firmly until the locking lever clicks into place.

Connect field wiring – Connect 4-20mA transmitters or voltage sensors to the ABB AI04 terminals per the TB820 wiring diagram. Use shielded cables for analog signals.

Configure signal type in software – Using Control Builder M or 800xA engineering tools, configure each channel of the ABB AI04 for the desired signal type: 4-20mA, 0-20mA, ±10V, or 0-10V (software-selectable, no hardware jumpers) .

Enable HART (if applicable) – For HART-capable ABB AI04 variants, enable HART communication in Control Builder M and ensure the connected AC 800M CPU or CI854A supports HART functionality .

Configure scaling and alarms – Set engineering units scaling, high/low range limits, and alarm thresholds for each channel of the ABB AI04.

Apply power – The ABB AI04 draws power from the S800 backplane; verify power LED is illuminated.

Test and verify – Inject known test signals into the ABB AI04 inputs and verify the controller receives the correct values (tolerance ±0.1% of span).

For ABB AI04 – Advant OCS Installation

Mount on DIN rail – Snap the ABB AI04 onto standard DIN rail (TH35-7.5 or TH35-15) .

Connect backplane communication – Ensure proper connection to the Advant OCS backplane or communication adapter (CI801 for AC 800F connection) .

Wire field signals – Connect sensors to the ABB AI04 terminals per the module label. Maintain segregation between analog and digital/power wiring.

Configure via engineering tool – Using Advant OCS engineering software, set channel types, scaling, and alarm parameters for the ABB AI04.

Enable dual power (if used) – For redundant power configurations, connect both power supplies to the ABB AI04; automatic switching occurs in<1ms .

Lockout/Tagout mandatory – Always disconnect, isolate, and lockout all power sources before installing, wiring, or maintaining the ABB AI04. Verify zero voltage using a calibrated meter.

Use correct variant for your system – The ABB AI04 is available in multiple variants (16-channel TC/mV, 4-channel universal, Advant OCS). Installing the wrong variant may damage the module or the I/O rack. Verify order codes before installation .

Shielded cables required – For thermocouple and low-level millivolt signals, always use shielded twisted-pair cables to prevent electromagnetic interference. Connect shield to ground at one end only .

Cold Junction Compensation placement – For accurate thermocouple measurement with the Symphony Plus ABB AI04, ensure the cold junction sensor (RTD) is properly positioned and not affected by external heat sources .

TB820 base required for S800 variant – The S800 ABB AI04 cannot be mounted directly on DIN rail; it requires a TB820 terminal base unit for proper electrical connection and hot-swap functionality .

Do not hot-swap without proper base – While the S800 ABB AI04 supports hot-swapping on TU8xx bases, other variants (Symphony Plus) may require power-down before insertion or removal.

Maintain proper grounding – Connect the I/O station ground terminal to the system's protective earth. For the S800 ABB AI04, ensure the TB820 base is properly grounded.

Avoid mixing signal types on same module – For the Advant OCS ABB AI04, do not mix different signal types (e.g., current and voltage) on the same module unless specifically supported .

Cable segregation – Route analog signal cables separately from AC power cables (maintain >10cm separation) and high-voltage motor leads (>30cm) to minimize noise coupling.

Terminal torque specifications – Tighten screw terminals to manufacturer specification (typically 0.5-0.6 Nm). Loose connections cause intermittent signal issues or measurement errors.

Do not exceed input voltage limits – For the ABB AI04, do not apply voltages exceeding the specified input range (±10V for voltage variants). Overvoltage can damage the A/D converter circuitry.

Use correct polarity for thermocouples – Thermocouple connections to the ABB AI04 are polarity-sensitive. Reverse polarity will produce incorrect temperature readings (negative values when positive expected).

Avoid mounting in hot enclosures – The ABB AI04 generates minimal heat, but ambient temperature must remain within specified limits (-20°C to +60°C or -40°C to +85°C for extended range variants). Mount away from heat sources (power supplies, drives, transformers) .

Add surge protection for outdoor installations – For the ABB AI04 in exposed locations, install surge protection devices (SPDs) on analog signal lines to protect against lightning-induced transients .

ESD protection recommended – The ABB AI04 contains sensitive electronic components; use grounded wrist straps during handling, especially in low-humidity environments.

Verify HART compatibility before enabling – If using HART features on the ABB AI04, ensure the connected controller (AC 800M) and communication interface (CI854A) support HART, and that field transmitters are HART-capable .

Daily / Per Shift Visual inspection – Walk through the I/O cabinet and verify the ABB AI04 power LED is illuminated. Check for any red fault LEDs indicating channel errors (open circuit, out-of-range, or communication failure). For Symphony Plus variants, note that normal operation shows no fault indicators .

Weekly Status verification via software – Using Symphony Plus Composer, 800xA, or Control Builder M, check the ABB AI04 diagnostic status for each channel. Verify that all 16 channels (or 4 channels, depending on variant) show valid signal values within expected ranges .

Monthly Thermal imaging (infrared scanning) – Using an IR camera, scan the ABB AI04 during normal operation. Compare temperature readings against baseline. Alert if Δ > 15°C above ambient or any area exceeds 70°C. Elevated temperatures may indicate impending component failure.

Monthly Power supply voltage check – With the ABB AI04 operating, measure the 24V DC supply at the I/O station terminals. Acceptable range: 24V DC ±10% (21.6V – 26.4V). Low voltage causes erratic readings; high voltage may damage the module.

Quarterly Signal verification (loop calibration) – Using a calibrated signal source, inject known values (e.g., 4mA, 12mA, 20mA for current inputs; room temperature and 500°C for thermocouple inputs) into the ABB AI04. Compare controller readings against injected values. Tolerance: ±0.05% FSR for Symphony Plus variant ; ±0.1% for S800 variant . Document results and track drift over time.

Quarterly Cold Junction Compensation verification (Symphony Plus variant) – For the ABB AI04 used with thermocouples, verify the CJC RTD is functioning correctly. Compare the CJC temperature reading against a calibrated reference thermometer at the terminal block. Tolerance: ±1°C .

Semi-annually Terminal torque verification – With the ABB AI04 de-energized (or with appropriate precautions for hot-swappable variants), use a calibrated torque wrench to retighten all signal and power terminals to manufacturer specification. Loose connections are a leading cause of intermittent signal issues and measurement errors.

Semi-annually Cleaning – Remove dust accumulation from the ABB AI04 using low-pressure compressed air (≤30 psi / 2 bar) and a soft brush. Do not use liquid cleaners or solvents. For S800 variants, the hot-swap capability allows cleaning without powering down the I/O station .

Annually Full calibration check – Perform a comprehensive 5-point calibration test on each channel of the ABB AI04 (0%, 25%, 50%, 75%, 100% of range). For Symphony Plus variants, note that automatic calibration eliminates the need for manual calibration, but verification is still recommended . For S800 variants, verify accuracy remains within ±0.1% of span .

Annually Isolation resistance test (megger) – With all wiring disconnected from the ABB AI04 and the module removed from the I/O station, test insulation resistance between channels and between channels and ground using a 500V megger. Acceptable: >10 MΩ. Replace if<1 MΩ (moisture ingress or insulation breakdown).

Annually Firmware version check – Verify the ABB AI04 firmware version against the latest ABB release notes. Update firmware if required for new features or bug fixes. Always back up system configuration before performing firmware updates .

Every 2-3 years Proactive replacement (critical applications) – For the ABB AI04 in continuous 24/7 operations (chemical plants, power generation), consider proactive replacement every 2-3 years to prevent unexpected failure. Rotate spare into service and refurbish the removed module to maintain inventory.

As needed (condition-based) Immediate replacement triggers – Replace the ABB AI04 immediately if any of the following occur: persistent fault LED that cannot be cleared by correcting field wiring; channel readings that remain stuck at a fixed value (0% or 100%) regardless of input signal; erratic, fluctuating readings on multiple channels simultaneously (suggests power supply or A/D converter failure); physical damage (cracked housing, burned components, corrosion); communication loss with controller that persists after verifying cabling and addressing.

Pro Tip: For S800 ABB AI04 variants with HART capability, leverage the HART digital data for predictive maintenance. The ABB AI04 can read transmitter diagnostic information including sensor drift, temperature limits exceeded, and remaining useful life estimates. Integrate this data into your asset management system (e.g., ABB Asset Optimization) to schedule calibration and replacement proactively .

Spare Parts Strategy: Maintain at least one spare ABB AI04 (matching the specific variant and order code of your installed modules) on-site for critical processes. For facilities with multiple ABB AI04 modules, maintain spares at 10-20% of installed count. During annual shutdowns, rotate spares into service and have removed units tested and refurbished to maintain inventory freshness.

Failure Mode Documentation: When replacing a failed ABB AI04, document the failure mode (e.g., channel X open circuit, no power, communication failure, intermittent readings). Track failure patterns quarterly to identify systemic issues (e.g., repeated failures on channels connected to outdoor instruments suggests surge protection needed; multiple module failures suggests power supply or environmental issues) and adjust maintenance intervals accordingly.

Configuration Backup: After configuring the ABB AI04 in your engineering software (Symphony Plus Composer, Control Builder M, or 800xA), export and archive the configuration file. This backup enables rapid replacement without re-entering channel parameters (thermocouple types, scaling, alarm limits) for each channel .
