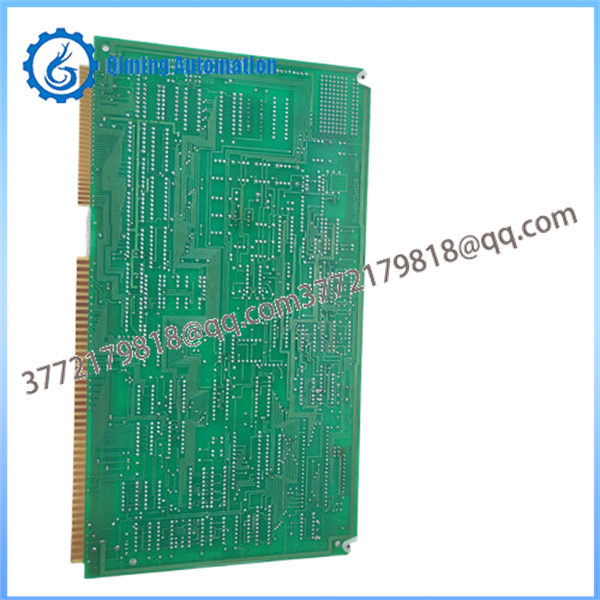

The ABB 802A028D-3 is a printed circuit board assembly (PCBA) serving as the Chroma I/O board for the ABB PGC2000 series Process Gas Chromatograph (PGC). This board provides essential input/output interfacing, signal conditioning, and control functions for the chromatograph’s analytical hardware, including detector signals, valve actuation, temperature control loops, and communication with the system processor (based on the 80C86 single-board computer architecture).

As a core component in the PGC2000 platform, the 802A028D-3 handles the acquisition of analog signals from thermal conductivity detectors (TCD), flame ionization detectors (FID), or other sensors, while managing digital I/O for solenoid valves, heaters, and event sequencing. It integrates directly with the PGC2000 backplane and works in conjunction with other boards such as the power supply (802A016B series), solenoid driver, and EPC (electronic pressure control) modules.

The -3 revision offers updated firmware compatibility and component enhancements compared to the -2 variant, ensuring continued support in both new PGC2000 installations and long-term maintenance of field-deployed analyzers. In process analytical applications, where precise, repeatable measurements of gas composition are critical, this Chroma I/O board contributes to system reliability, fast cycle times, and accurate peak integration. It is listed in official PGC2000 spare parts recommendations, making it a standard replacement item for maintaining analyzer uptime in continuous operation.

Engineers and maintenance teams select the 802A028D-3 for its robust design tailored to the demanding environmental conditions of industrial gas analysis, including temperature fluctuations and potential exposure to corrosive sample streams when properly housed in the PGC enclosure.

The 802A028D-3 delivers specialized I/O capabilities optimized for gas chromatography:

Analog Signal Acquisition and Conditioning: Interfaces with detector outputs (e.g., TCD, FID, or methanizer signals), providing amplification, filtering, and A/D conversion support for high-resolution chromatogram data.

Digital I/O Management: Controls multiple solenoid valves for sample injection, column switching, and backflush sequences. Supports discrete inputs for status feedback (door switches, pressure alarms, etc.).

Heater and Temperature Control Interface: Coordinates with temperature control loops for ovens, injectors, and detectors, ensuring thermal stability critical for separation performance.

Communication with SBC: Acts as the primary I/O link to the 80C86-based single-board computer, handling data exchange for method execution, peak detection, and result calculation.

Event Sequencing and Timing: Supports precise timed events required for multi-column, multi-detector PGC configurations and complex analysis methods.

Diagnostic Support: Includes onboard status indicators and fault detection for I/O channels, aiding troubleshooting of valve failures, signal drift, or communication issues.

Integration with PGC2000 Ecosystem: Seamless compatibility with other PGC2000 modules, including EPC boards, detector amplifier assemblies, and the front-panel display/control board.

These functions enable the PGC2000 to perform reliable, automated online gas analysis with minimal operator intervention, delivering compositional data to DCS or plant information systems via serial or network interfaces.

Key specifications for the ABB 802A028D-3 Chroma I/O PCBA (representative values from PGC2000 platform):

Board Type: Chroma I/O PCBA with 80C86 SBC interface

Processor/Architecture Integration: Interfaces with 80C86 single-board computer for real-time control

Analog Inputs: Multiple channels for detector signals (voltage/current), with signal conditioning circuitry

Digital Outputs: Multiple channels for solenoid valve drivers and discrete control

Digital Inputs: Status and feedback signals

Power Supply: Receives regulated DC voltages from the PGC2000 power supply board (typically +5 V, ±12 V, or +24 V as required by sections)

Operating Temperature: Designed for installation inside the PGC2000 analyzer enclosure (typically 0 °C to +55 °C ambient, with internal oven temperatures managed separately)

Dimensions and Weight: Standard PGC2000 PCBA form factor; approximate weight < 0.5 kg

Connectors: Board-to-board connectors to backplane and ribbon cables or headers to other modules (valves, detectors, heaters)

Firmware/Revision: Revision D-3 includes updates for improved compatibility and performance

Exact channel counts, voltage levels, and pin assignments are defined in the PGC2000 hardware manuals and wiring diagrams. The board is RoHS compliant in later productions. Always verify compatibility with the specific PGC2000 software version and hardware configuration using ABB documentation.

The 802A028D-3 is primarily used in process gas chromatography applications across industries requiring continuous compositional analysis:

Oil & Gas and Petrochemical: Natural gas processing, refining (BTU, H2S, hydrocarbon dew point), ethylene/propylene production, and fuel gas monitoring.

Power Generation: Hydrogen purity analysis in generator cooling systems and syngas monitoring.

Chemical and Fertilizer Production: Ammonia, methanol, and other synthesis gas streams.

LNG and Pipeline Operations: Custody transfer and quality control measurements.

Environmental and Industrial Gases: Stack gas, ambient air, or specialty gas analysis where PGC2000 provides multi-component capability.

Typical scenarios include online PGC2000 installations with single or multi-stream sampling, method development for C1–C6+ or specific impurity measurements, and spare parts stocking for preventive maintenance programs. For legacy PGC2000 systems still in service, the 802A028D-3 serves as a direct drop-in replacement for failed Chroma I/O boards. In modern setups, it supports integration with higher-level systems via Modbus, OPC, or ABB’s process analytics software.

Handling: Use proper ESD protection when removing or installing the board. Avoid touching components or connectors unnecessarily.

Mounting: Install only in the designated slot within the PGC2000 electronics section. Ensure secure connection to the backplane and all ribbon cables or headers are correctly aligned and latched.

Power and Connections: De-energize the analyzer completely before board replacement. Verify all power supply voltages are within specification after reinstallation. Reconnect detector, valve, and heater cables according to the wiring diagram.

Configuration: After installation, perform a system reset or reboot. Reload or verify the analysis method via the PGC2000 front panel or configuration software. Run calibration and validation sequences to confirm detector response and valve timing.

Safety: Qualified instrumentation technicians only. Follow lock-out/tag-out procedures. The PGC2000 may contain hazardous sample gases—purge and vent the system properly before opening the enclosure.

Refer to the PGC2000 Maintenance and Installation Manual for detailed procedures, torque values (if applicable), and functional test steps.

The 802A028D-3 is a solid-state PCBA with no moving parts and requires minimal routine maintenance beyond system-level care:

Routine Inspections: During scheduled PGC2000 maintenance, visually check for dust, corrosion, or loose connectors. Ensure the electronics compartment remains clean and within temperature limits.

Diagnostics: Monitor system alarms and chromatogram quality via the PGC2000 display or connected software. Use built-in diagnostic screens to check I/O status, valve actuation, and signal levels.

Preventive Actions: Follow ABB-recommended spare parts intervals. Keep a spare 802A028D-3 on site for critical analyzers.

No Detector Signal or Flat Baseline: Verify connections between the Chroma I/O board and detector amplifier. Check power supplies and signal conditioning circuits. Compare with known-good chromatograms.

Valve Not Actuating or Timing Errors: Inspect digital output channels and solenoid wiring. Confirm method parameters and test individual valves manually if supported.

Communication or System Not Booting: Check board seating on the backplane and all interconnect cables. Verify power supply board output voltages.

Noisy or Drifting Signals: Rule out detector or column issues first. Inspect grounding and shielding. Replace the board if signal conditioning faults are isolated.

Alarm Related to I/O: Review event logs for specific channel faults. Swap with a spare board to confirm the root cause.

For complex issues (e.g., intermittent faults or method-specific problems), collect diagnostic files, chromatograms, and system logs, then contact ABB Process Analytics support with the PGC2000 serial number and software version. Proper replacement of the 802A028D-3 typically restores full functionality after a short recalibration period.

The ABB 802A028D-3 Chroma I/O PCBA is a field-proven component that ensures reliable operation of the PGC2000 Process Gas Chromatograph, delivering accurate and repeatable gas analysis results essential for process optimization, product quality, and safety. For detailed configuration, spare parts planning, or migration to newer PGC5000 platforms, consult the latest ABB Process Analytics documentation and authorized service channels.
