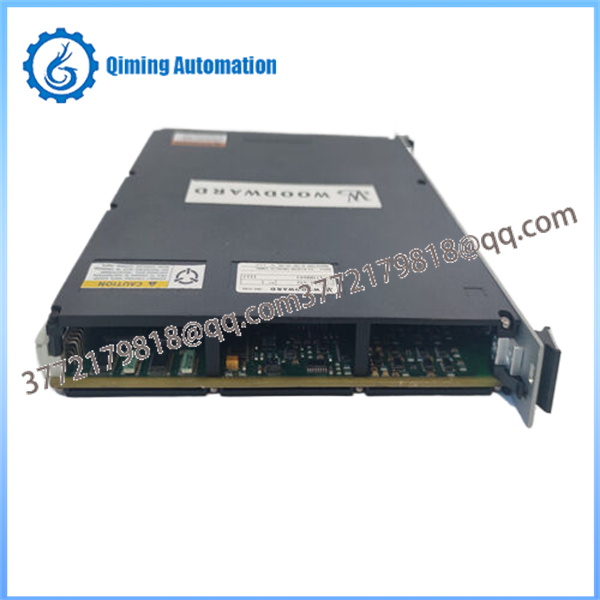

Woodward 5501-432 MicroNet Analog I/O FTM

The Woodward 5501-432 is a rugged field interface board meticulously designed to streamline field-side wiring on gas turbine, steam turbine, and compressor governor control applications. Operating as a component of the MicroNet distributed hardware ecosystem, this module eliminates the need for complex intermediate terminal strips by allowing external loops to land directly onto the control cabinet's peripheral margins.

This passive FTM works in direct tandem with Woodward's high-density analog processing cards via prefabricated multi-conductor cables. It accommodates both voltage and current loop variations, incorporating onboard capacitive filtering to clamp localized high-frequency transients and cross-talk before they reach sensitive analog-to-digital converter (ADC) stages on the main controller rack.

• High-Density Channel Concentrator: Packs 32 total analog lines into a compact physical footprint, freeing up significant rail estate inside control skids.

• Superior EMI Suppression: Employs physical trace separations and internal ground planes to shield delicate loop lines from adjacent high-voltage motor starters or switching gear.

• Direct Shield Tie-Points: Features explicit, low-resistance grounding screw terminals adjacent to every signal pair, ensuring correct cable-shield drain architecture.

• Simplified Maintenance Access: All terminal blocks are angled and clearly numbered, enabling field technicians to probe loops or isolate instrumentation with standard multimeters without stopping the main unit.

• Plug-and-Play Backplane Linking: Connects to the primary MicroNet chassis using standard keyed multi-pin plugs, preventing accidental pin misalignment during commissioning.

• Turbomachinery Process Control: Integrates field process transmitters (vibration, fuel pressure, case expansions) to main governor logic.

• Combined Cycle Power Plants: Manages multiple analog loops tracking secondary steam loop temperatures and boiler feedwater flows.

• Industrial Exhaust & Emission Monitoring: Roots signal inputs from gas analyzers and exhaust thermocouple networks directly to emission-limiting control parameters.

Q1: Does the 5501-432 provide loop power for 2-wire 4-20mA field transmitters?

A: The 5501-432 routes power distribution from the main MicroNet internal power supplies to the field terminals. Check the specific pairing module's configuration instructions to verify whether active internal or external loop powering is selected for your individual channel paths.

Q2: Can this termination board be used in Triple Modular Redundant (TMR) setups?

A: No, the 5501-432 is fundamentally engineered for Simplex and Duplex/Plus control systems. For TMR architectures, you must utilize Woodward’s dedicated TMR analog termination modules to accommodate redundant voting paths.

Q3: What wire gauge range can the screw terminals accommodate?

A: The robust clamp-style terminals on this FTM accept solid or stranded wires ranging from 0.5 to 2.5 square millimeters (equivalent to 22 AWG down to 12 AWG).
