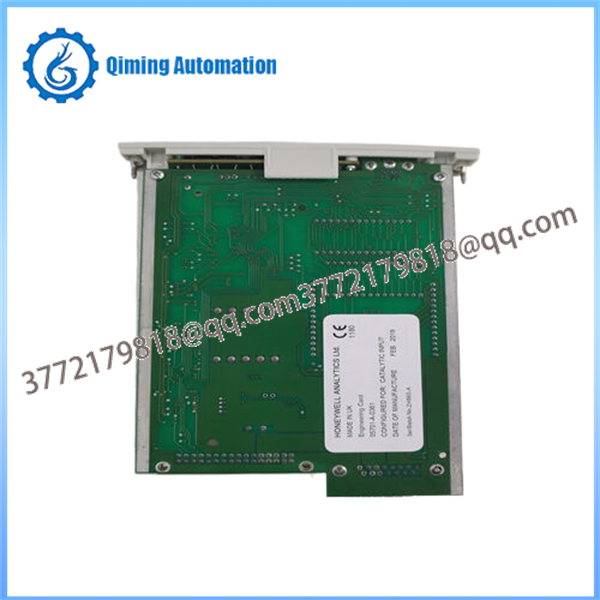

Honeywell 05701-A-0361 Engineering Interface Board

The 05701-A-0361 acts as the control supervisor for standard System 57 assemblies. When inserted into the rack, it actively checks the internal software operations, physical circuitry health, and backplane bus traffic of all active 5701 (single-channel) and 5704 (four-channel) gas or fire monitoring cards.

To execute maintenance tasks—such as zeroing a catalytic bridge or setting the span current on a 4-20mA loop—the technician relies on this card to put target nodes into a safe "Inhibit Mode." By routing the primary 24V DC input from the main distribution card straight into the chassis backplane, it ensures the entire card arrangement operates on a single, clean ground line to isolate delicate sensor loops from structural electromagnetic interference.

• Centralized Backplane Mastership: Governs and sanitizes all serial data packet transfers over the rack's shared communication backplane to protect single-channel processes from data collisions.

• Multi-Button Control Panel: Front-mounted Up/Down, Accept/Reject, and print tactile keys enable immediate menu exploration without needing an active laptop connection in the field.

• Hardware-Enforced Security: Built-in write-protection architecture stops unauthorized field personnel from accidentally wiping active alarm limits or altering critical target-gas baseline constants.

• Precision Real-Time Clock (RTC): Maintains an on-board, battery-buffered calendar clock to stamp calibration logs, track operational run-time, and trigger automated reminders for overdue channel inspections.

• External Engineering Interface: Provides an isolated, front-accessible RS-232 serial connection alongside back-panel terminals for direct PC terminal interfacing and localized print readouts.

The 05701-A-0361 acts as the control supervisor for standard System 57 assemblies. When inserted into the rack, it actively checks the internal software operations, physical circuitry health, and backplane bus traffic of all active 5701 (single-channel) and 5704 (four-channel) gas or fire monitoring cards.

To execute maintenance tasks—such as zeroing a catalytic bridge or setting the span current on a 4-20mA loop—the technician relies on this card to put target nodes into a safe "Inhibit Mode." By routing the primary 24V DC input from the main distribution card straight into the chassis backplane, it ensures the entire card arrangement operates on a single, clean ground line to isolate delicate sensor loops from structural electromagnetic interference.

• Central Control Cabinets: Functions as the primary engineering port in centralized plant control panels managing multi-point explosive and toxic gas monitoring loops.

• Automated Safety Commissioning: Used by field engineers during initial plant sign-offs to push batch variable files and alarm rules safely across the rack backplane.

• Modbus Telemetry Linking: Serves as the localized data concentrator when converting analog rack statuses into unified digital streams for factory DCS or SCADA networks.

• Onshore and Offshore Mainframes: Ensures safe maintenance routines in localized gas-rack boxes deployed across high-vibration maritime environments or marine platforms.

Q1: Can a System 57 rack function correctly if the 05701-A-0361 Engineering Card is removed after setup?

A: Yes, it can. The individual 5701 and 5704 channel cards contain their own microprocessors and non-volatile EEPROM memory blocks to run their safety loops independently. The engineering card is primarily required for commissioning, checking card errors, changing alarm parameters, and running calibrations.Once configured, the rack can run its basic safety loops without it, though leaving it installed provides continuous backplane coordination and serial Modbus connectivity.

Q2: What is the exact purpose of the "Unlocked" Red LED indicator on the front panel?

A: The Red LED serves as a critical safety warning. When lit, it shows that the system's write-protection lock has been opened, allowing changes to alarm levels, gas scales, and baseline sensor values. When the system is locked for normal operation, this LED stays unlit to confirm the rack is secure against accidental or unauthorized parameter changes.

Q3: How do you initiate a system printout via the front interface buttons?

A: To send a print command for diagnostic logging or calibration verification through the serial connection, press and hold both the Up and Down arrow buttons simultaneously.

Q4: Does the 05701-A-0361 handle direct sensor wiring from toxic or combustible gas detectors?

A: No, it does not. The engineering card does not have any analog field-wiring terminals for gas sensors. All toxic, oxygen, and combustible gas sensor wires must connect directly to their respective single-channel (5701) or four-channel (5704) control cards via their specific rear interface blocks.
