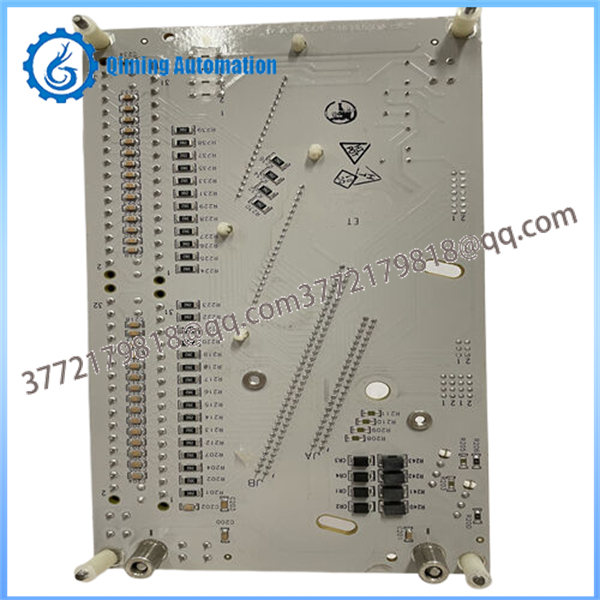

Honeywell CC-TDIL01 Digital Input IOTA Module

The HoneywellCC-TDIL01is a Series C Digital Input IOTA module used with Honeywell industrial control systems to connect field digital devices with control processors. It is designed to receive 24VDC discrete signals from field instruments, switches, and monitoring devices, then transfer accurate input information to the automation system.

As a termination assembly component, the CC-TDIL01 simplifies field wiring management and provides a reliable interface between field equipment and the control system I/O architecture. It supports high-density input applications with 32 digital input channels and provides electrical protection through galvanic isolation technology.

The module is widely applied in industries requiring dependable process monitoring, equipment status detection, and automated control execution.

Technical Specifications：

Model Number

CC-TDIL01

Manufacturer

Honeywell

Product Type

Digital Input 24V IOTA Module

System Compatibility

Honeywell Experion PKS / Series C I/O System

Function

Digital field signal termination and input interface

Input Type

24VDC Digital Input

Input Channels

32 Digital Input Channels

IOTA Type

Non-redundant Digital Input Termination Assembly

Input Voltage Range

18 to 30 VDC

ON Detection Voltage / Current

13 VDC minimum or 3 mA minimum

OFF Detection Voltage / Current

5 VDC maximum or 1.2 mA maximum

Input Impedance

4.2 kΩ

Isolation Method

Optical isolation inside I/O module

Galvanic Isolation

1500 VAC RMS or ±1500 VDC

Input Filter Delay

5 ms ±20%

Current Consumption

Approx. 0.190 A at 24VDC

Heat Dissipation

Approx. 4.220 W

Part Number

CC-TDIL01 / 51308386-175

CC-TDIL01

Main Features and Advantages：

High-Density Digital Input Capability

The CC-TDIL01 provides 32 digital input points, allowing multiple field devices to be connected within a compact control cabinet configuration.

Reliable Signal Processing

The module provides stable acquisition of discrete signals from field devices, helping improve monitoring accuracy and control response.

Electrical Isolation Protection

Optical isolation and galvanic protection reduce the impact of electrical interference and field-side voltage disturbances on the control system.

Simplified Cabinet Wiring

The IOTA design provides an organized field termination solution, reducing wiring complexity and improving maintenance efficiency.

Strong System Integration

The CC-TDIL01 is designed for Honeywell Experion automation architectures, supporting smooth integration into existing control systems.

Industrial Reliability

Built for process automation applications, the module supports stable operation in environments requiring high availability.

Application Fields：

Honeywell CC-TDIL01 is commonly used in:

Oil and Gas Production Facilities
Petrochemical Plants
Power Generation Systems
Chemical Processing Industries
Refinery Automation
Water Treatment Plants
Manufacturing Automation
Process Monitoring Systems
Industrial Equipment Control

FAQ：

Q1: What is Honeywell CC-TDIL01?

The Honeywell CC-TDIL01 is a 24VDC digital input IOTA module used for connecting field digital signals to Honeywell Experion control systems.

Q2: How many digital inputs does CC-TDIL01 support?

The CC-TDIL01 supports 32 digital input channels for industrial signal monitoring applications.

Q3: Is CC-TDIL01 compatible with Experion PKS?

Yes. The CC-TDIL01 is designed for Honeywell Experion PKS and Series C I/O system architectures.

Q4: Does CC-TDIL01 provide signal isolation?

Yes. The module supports optical isolation and galvanic isolation to protect the control system from field electrical disturbances.

Q5: What applications use CC-TDIL01?

It is mainly used for equipment status monitoring, alarm input collection, interlock signals, and digital process control applications.
