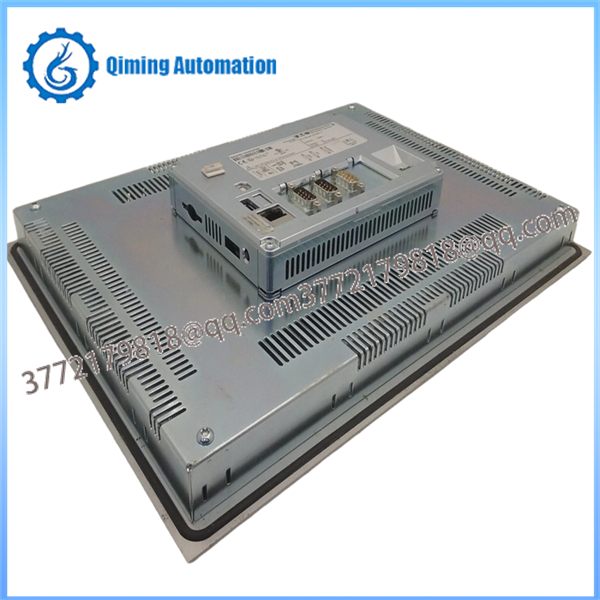

Eaton Moeller XV-152-D6-10TVRC-10 Industrial HMI

The EatonXV-152-D6-10TVRC-10 bridges the gap between dedicated Operator Interfaces (OI) and high-density industrial control processing. At its core is a resilient 10.4" analog resistive TFT display, encased in a premium anodized metal housing that resists physical impacts, chemical splashes, and heavy vibrations.

Unlike traditional screens that rely on a separate control cabinet CPU, this XV100 family powerhouse includes an embedded high-speed processor capable of executing complex automation scripts and managing rich graphical user interfaces simultaneously. It eliminates redundant hardware wiring, reduces cabinet footprints, and natively bridges field-level sensors to corporate-level monitoring networks using its comprehensive onboard communication array—including a high-speed CANopen fieldbus port, dual serial lines, and 10/100M Ethernet.

• Monolithic Hybrid Engineering: Combines a high-resolution graphical display and a robust PLC within a single hardware footprint, lowering your Total Cost of Ownership (TCO) and simplifying software debugging.

• Industrial-Grade Metal Bezel: The anodized aluminum front frame provides superior thermal dissipation and structural rigidity compared to plastic alternatives, surviving harsh machining and material handling setups.

• Resistive Precision Touch: The 10.4-inch VGA screen responds reliably to gloved hands, stylus inputs, and environments prone to fluid overspray, ensuring no accidental commands are triggered.

• Expansive Network Interfacing: Built-in CANopen master interface allows immediate synchronization with remote I/O, servo drives, and pneumatic manifolds without requiring external communication cards.

• Global Compliance Framework: Fully rated with IP65 front-face ingress protection and ATEX Zone 22 / Category 3D certifications, making it safe for environments with combustible dust hazards.

Parameter Category	Technical Specifications & Performance Values
Manufacturer & Model	Eaton Corporation / XV-152-D6-10TVRC-10 (Global ID: 150611)
Display Technology	10.4-inch TFT Active Matrix Display, VGA (640 x 480 pixels), 64k Colors
Touch Screen Matrix	4-wire Analog Resistive, fully enclosed standard membrane front
Enclosure Material	Front: Anodized aluminum metal housing; Rear: Rugged engineered polymer
Processing Engine	High-performance RISC processor, 32-bit architecture
Integrated Communication	1 x Ethernet 10/100 Mbps, 1 x CANopen, 1 x RS485, 1 x RS232, 1 x USB Host, 1 x USB Device
Power Dynamics	24 VDC Nominal (-20% / +25% tolerance), maximum current intake 3.0 A
Ingress Protection (IP)	Front side: IP65 / Enclosure Type 4X (Indoor); Rear side: IP20 rated
Physical Footprint	Dimensions: 345mm x 260mm x 54mm (W x H x D); Weight: 3.0 kg
Hazardous Approvals	cULus (UL508), CE marked, ATEX II 3D Ex tc IIIC T70°C IP6x (Zone 22)
Environmental Limits	Operating: 0°C to +50°C; Storage: -20°C to +60°C; 10%–95% non-condensing humidity

• Packaging & Conveying Machinery: Managing high-speed sortation lanes, multi-axis wrapping machines, and labeling setups where CANopen coordinates real-time servo drives.

• Water & Wastewater Infrastructure: Acting as a local pump-station master controller, providing localized HMI visibility while transmitting telemetry data via Ethernet to a centralized SCADA system.

• Food & Beverage Processing: Thanks to its IP65 metal face, it stands up to typical splash zones while controlling mixing, batching, and temperature profiles in processing lines.

• Material Handling & Cranes: Resists high mechanical shock and vibration inside cabin operations or field-deployed sorting bays.

Q: Can the XV-152-D6-10TVRC-10 be programmed using standard CODESYS platforms?

A: Yes. This unit is explicitly engineered to support Eaton’s Galileo visualization system as well as XSoft-CoDeSys programming software, allowing developers to implement standard IEC 61131-3 logic controls (such as Ladder Diagram or Structured Text) directly on the terminal.

Q: What is the primary difference between the D6 and D8 sub-models in this series?

A: The D6 designation within the Eaton configuration matrix indicates that this specific model features a CANopen fieldbus protocol engine. In contrast, D8 configurations typically swap or augment this with alternative fieldbus architectures like PROFIBUS-DP or SmartWire-DT.

Q: How does the metal housing benefit operations compared to standard plastic panels?

A: The anodized metal front plate offers advanced structural protection against environmental shearing forces, shields inner electronics from heavy electromagnetic interference (EMI), and acts as a passive heat sink to optimize unit cooling without internal fans.

Q: Is it safe to deploy this HMI in dusty or explosive processing plants?

A: Yes, it holds an official ATEX Zone 22 (Category 3D) certification. When flush-mounted correctly into an appropriate enclosure, its front screen prevents the ingress of conductive dust particles and limits external surface temperatures to under 70°C.
