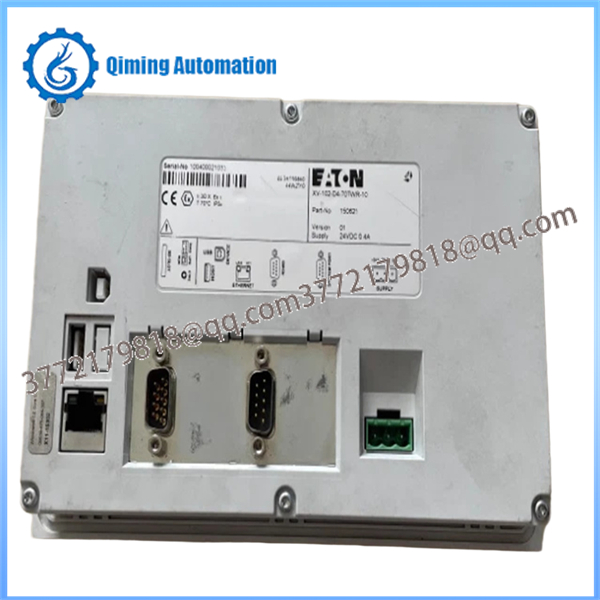

Eaton Moeller XV-102-D4-70TWR-10 Touch Display Controller

The underlying engineering philosophy behind the XV-102-D4-70TWR-10 focuses on eliminating unnecessary hardware clutter while maximizing operational resilience. Featuring a specialized multi-layer resistive touch overlay, this 7-inch device registers pin-point accurate coordinates under highly challenging factory conditions—including instances where operators are dealing with grease, condensation, or heavy work gloves.

Driven by an energy-efficient 400 MHz RISC processing core running on an embedded Windows CE framework, the hardware executes logic loops and handles graphical redraws without lagging. By incorporating logic programming through CODESYS, the unit acts as a combined HMI/PLC. This lets engineers build their visualization elements and write their control logic within a unified environment, drastically reducing commissioning times and reducing wiring errors.

• Manufacturer Brand: Eaton / Moeller Series Automation

• Exact Ordering Designation: XV-102-D4-70TWR-10

• Unique Identification Number: 150621

• Display Visual Dimensions: 7-inch diagonal widescreen display format

• Display Aspect Ratio: 16:9 horizontal orientation layout

• Screen Resolution Grid: WVGA high-density output (800 x 480 pixels)

• Backlighting Architecture: Long-life LED matrix (Adjustable software dimming)

• Touch Sensitive System: 4-Wire analog resistive film assembly

• Internal CPU Architecture: High-speed 32-Bit RISC processor, clocking at 400 MHz

• System Operating Software: Tailored Microsoft Windows CE core

• Integrated Memory Spaces: 64 MB Internal Logic RAM / 32 KB Retentive Non-Volatile NVRAM

• Physical Communication Ports: 1 x 10/100 Mbps Ethernet RJ45, 1 x RS485 Serial Interface, 1 x USB Device Hub

• External Storage Expansion: 1 x SD Card Slot (Industrial grade recommended)

• Operating Supply Voltage: 24 Volts DC (Acceptable operating window: 20.4V to 28.8V DC)

• Frontal Sealing Protection: Rated to IP65 / NEMA 4X (Dust-tight and splash-proof)

• Enclosure Rear Protection: Rated to IP20 (Cabinet internal venting configuration)

• Enclosure Composition: Durable, impact-resistant industrial polymer material

• High-Density Pixel Matrix: The WVGA 800x480 screen configuration ensures text fonts, alarm lines, and fine machine schematics remain razor-sharp and highly readable from wide viewing angles.

• Unified Control Footprint: Blending HMI capability with an IEC 61131-3 logic architecture helps you eliminate external PLC components, reduce stock inventory, and optimize space inside the cabinet.

• Resilient Resistive Film: The advanced touch layer provides consistent tactile tracking that is completely unaffected by electromagnetic interference (EMI) or minor surface scratches.

• Built-in Power Fail Safeguards: An integrated 32 KB NVRAM cluster instantly secures critical process values, machine states, and recipe metrics during an abrupt power failure, preventing system restarts from scratching.

• Streamlined Modern Framework: Built on Windows CE, giving you an open, highly stable platform for running Eaton's advanced Galileo runtime environments alongside high-efficiency field communications.

• Compact OEM Packaging Machinery: Ideal for wrapping stations, small-scale cartoners, and labeling lines where mounting space behind the door is extremely tight.

• Building Automation and HVAC Clusters: Serves as a localized floor master panel to monitor air handling units, chilled water pumps, and lighting zones via Modbus networks.

• Environmental & Water Treatment Skids: Fits perfectly on modular water filtration systems, chemical dosing skids, and purification loops requiring robust IP65 front-face protection.

• Renewable Energy Subsystems: Used inside solar inverter housings or wind turbine base controls to display local performance metrics and coordinate sensor arrays.

Q1: Which protocol variation does the internal interface layout of the 150621 model support?

A: The "D4" hardware designation within the XV-102-D4-70TWR-10 code indicates the inclusion of an onboard RS485 communication line supporting multiple industry protocols including Modbus RTU or Profibus DP slave configurations, supplemented by an independent 10/100 Ethernet terminal.

Q2: What is the benefit of the 16:9 widescreen layout compared to traditional square screens?

A: The 16:9 widescreen profile offers significantly more horizontal landscape. This allows operators to monitor extended trend charts, side-by-side status blocks, and persistent alarm banners simultaneously without switching screens.

Q3: Does this unit contain any internal cooling fans that require periodic cleaning?

A: No. The internal electronic layout is completely optimized for solid-state passive heat dissipation. The fanless design prevents airborne dust, metallic particles, and ambient humidity from being sucked into the rear casing.

Q4: Can I use an off-the-shelf SD memory card for data backups on this unit?

A: The micro panel is built with an integrated SecureDigital (SD) card slot. It is strongly recommended to use Eaton's industrial-grade SD cards, which are specifically designed to handle high-frequency read/write cycles and extreme temperature variations without risk of data corruption.

Q5: Is it possible to mount this HMI terminal vertically?

A: Yes, the device firmware and Galileo layout engine support both horizontal (landscape) and vertical (portrait) mounting orientations, giving you maximum flexibility when designing compact machine enclosures.
