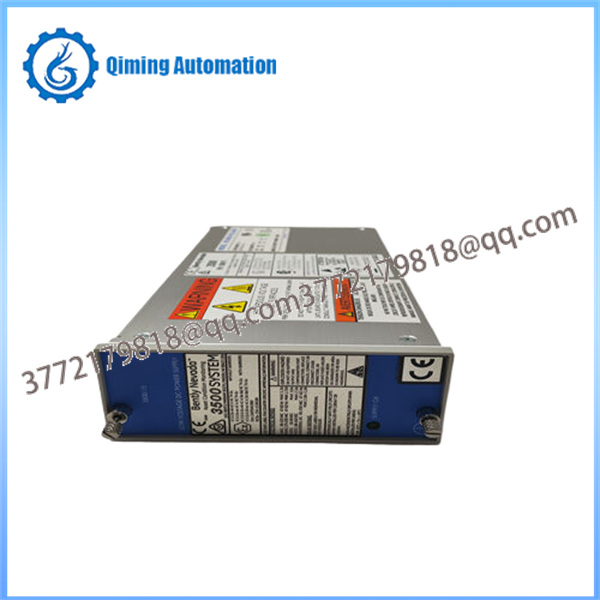

BENTLY 3500/15 114M5330-01 is the core power component of the Bently Nevada 3500 series mechanical protection system, belonging to the low-voltage DC power module. As a half height module, it is designed specifically for installation in a dedicated slot on the left side of the 3500 rack, responsible for converting external input 20 to 30 VDC voltage into stable 24 VDC power required by the system internally, providing reliable power support for monitors, communication modules, etc. inside the rack. In the state monitoring system of large rotating machinery such as steam turbines, compressors, and generators, this power module is a key basic component to ensure the stable and uninterrupted operation of the entire monitoring system.

The core value of this module lies in its flexible redundancy configuration capability. A 3500 rack can accommodate up to two 3500/15 power modules (any combination of AC or DC type), achieving a "one primary and one backup" hot backup mode. When the main power supply fails, the backup power supply will automatically and seamlessly take over, ensuring that the entire monitoring system will not shut down due to power issues. When replacing or plugging in any power module, as long as the other power module is still working, the operation of the rack is not affected at all (supports hot plugging). This feature greatly enhances the availability and reliability of critical equipment such as steam turbines and compressors that do not allow interruption monitoring.

BENTLY 3500/15 114M5330-01 has a wide range of input voltage adaptability (20-30VDC), which can adapt to the diverse DC power supply environment in industrial sites. It is equipped with multiple protection mechanisms, including overvoltage protection (OVP), overcurrent protection (OCP), and short circuit protection, which can respond promptly when abnormal situations are detected, protecting the power module itself and other expensive monitoring modules in the rack from damage. In addition, the module adopts an industrial grade wide temperature design, with a working temperature range covering -30 ° C to+65 ° C and a humidity tolerance of up to 95% (non condensing), which can easily cope with the challenges of harsh industrial environments such as power plants, chemical plants, and metallurgical workshops.

This BENTLY 3500/15 114M5330-01 power module is widely used in critical industrial fields that require the highest level of mechanical protection:

Power industry: Power supply for vibration monitoring systems of steam turbine generators in thermal power plants, gas turbines, hydropower stations, and wind turbines.

Oil and gas: a condition monitoring system for key equipment such as centrifugal compressors, pump groups, and fans in refineries and chemical plants.

Metallurgical industry: Monitoring and protection system for heavy rotating machinery such as rolling mills and blast furnace blowers in steel plants.

Water treatment and environmental protection: online monitoring of blowers and pump units in large water pump stations and sewage treatment plants.

Manufacturer Bently Nevada (Baker Hughes/GE)

Product model 3500/15 114M5330-01

Product Type: Low Voltage DC Power Supply Module

Input voltage range 20 VDC to 30 VDC

Output voltage 24 VDC

Maximum output current 11.0 A (low voltage DC)

Efficiency>85%

Voltage regulation accuracy ± 5%

Ripple noise<50 mV

Module Type Half height Module

Installation position: 3500 rack, designated slot on the left side

Redundant configuration supports 1+1 redundant heat backup, with automatic switching between primary and backup

Hot swappable support (requires a second power module)

Working temperature -30 ° C to+65 ° C

Storage temperature -40 ° C to+85 ° C

Humidity range 5% -95% non condensing

Protection functions include overvoltage protection (OVP), overcurrent protection (OCP), short circuit protection, and thermal protection

Supply OK status indicator green LED light

The physical dimensions are approximately 120.7 × 50.8 × 251.5 mm or 5.1 × 25.2 × 12 cm

Weight approximately 1.14-1.5 kg

1. Introduction

As an indispensable part of modern industrial automation and intelligent control, the importance of temperature controllers is self-evident. Whether in laboratories, factory production lines, or home environments, temperature controllers play a crucial role. This article will provide a detailed introduction to the principle of temperature controllers and explore their characteristics, in order to provide readers with a comprehensive and in-depth understanding.

2、 The principle of temperature controller

A temperature controller is a device used for monitoring and controlling temperature, and its working principle is based on three main steps: temperature sensing, signal processing, and execution control.

temperature sensing

The temperature controller is equipped with a temperature sensor inside, which is a key component for sensing changes in environmental temperature. Common types of sensors include thermistors, thermocouples, and thermal resistors. These sensors are capable of real-time sensing of environmental temperature and converting temperature signals into electrical signals for subsequent processing.

signal processing

The electrical signal generated by the sensor is sent to the signal processing unit of the temperature controller. In this unit, the electrical signal will undergo amplification, filtering, and digitization to improve the accuracy and reliability of the signal. Then, the signal processing unit will compare the processed signal with the set target temperature. If the two are equal or close, the controller will maintain the current working state; If there is a deviation between the two, the controller will issue a control signal to adjust the working state of the actuator.

execution control

The actuator is the final executing component of the temperature controller, which adjusts the temperature of the controlled object based on the control signal. Common types of actuators include heaters, coolers, etc. When the ambient temperature is lower than the set temperature, the controller will issue a heating command to start the heater and increase the ambient temperature; On the contrary, when the ambient temperature is higher than the set temperature, the controller will issue a cooling command, causing the cooler to start working and reduce the ambient temperature.

Through the collaborative work of the above three links, the temperature controller can achieve real-time monitoring and control of the ambient temperature, ensuring that the ambient temperature remains within the set range at all times.

3、 Characteristics of temperature controller

As an important industrial automation equipment, temperature controllers have many significant characteristics.

High degree of automation

The temperature controller can automatically monitor the ambient temperature and adjust the working state of the actuator according to the set value. This automated control method greatly reduces the need for manual operation and intervention, improving work efficiency and safety.

high control accuracy

The temperature controller adopts advanced sensors and control algorithms, which can accurately sense changes in environmental temperature and respond quickly. Its control accuracy can usually reach ± 0.1 ℃ or even higher, meeting the needs of many high-precision control fields.

high reliability

The temperature controller adopts stable hardware and reliable software design, with good anti-interference and stability performance. It can operate stably for a long time in harsh environments, providing users with a stable and reliable temperature control solution.

Strong programmability

Modern temperature controllers typically have powerful programming capabilities, allowing users to program settings according to different needs and parameters. This flexibility enables temperature controllers to adapt to various complex control requirements and meet the application requirements of different industries and fields.

Display intuitively

Many temperature controllers are equipped with intuitive display interfaces that can clearly display temperature, set values, time, and other related information. This display method is convenient for users to operate and adjust, improving their user experience.

Energy-saving and environmental protection

The temperature controller can accurately control the ambient temperature and avoid energy waste. At the same time, it can also adjust the temperature according to actual needs, reducing the emissions of waste gas, wastewater, and waste generated in some industrial processes, which helps to achieve the goal of energy conservation and environmental protection.

Wide range of applications

Temperature controllers are suitable for various industries and fields, such as metal processing, food processing, electronic manufacturing, metallurgy, etc. Temperature controllers can be used wherever precise temperature control is required.

IV. Conclusion

In summary, as an important industrial automation equipment, temperature controllers have the characteristics of high automation degree, high control accuracy, high reliability, strong programmability, intuitive display, energy saving and environmental protection, and wide applicability. These characteristics have enabled temperature controllers to be widely used in various fields, providing strong support for industrial automation and intelligent control.
