Manufacturer Bently Nevada (Baker Hughes)

Product model 3500/22M 138607-01V

Product Type Transient Data Interface Module (TDI)

Core functions include high-speed transient data acquisition, rack management (RIM), and Ethernet communication

Ethernet interface 10Base-T/100Base TX (adaptive copper cable)

Sampling rate up to 102.4 kHz

Configure USB-B interface (front panel)

Installation position: TDI dedicated slot on the left side of the 3500 rack

Working temperature -30 ° C to+65 ° C

Typical applications include monitoring the status of steam turbines, compressors, fans, and generator sets

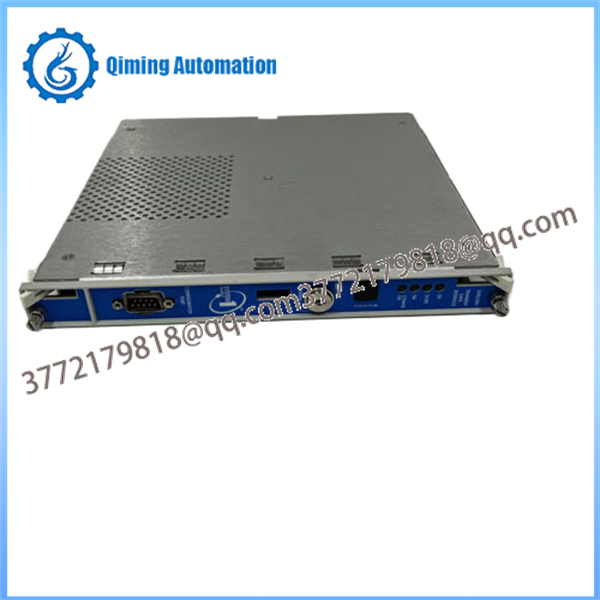

BENTLY 3500/22M 138607-01V is the core communication and management module in the Bently Nevada 3500 series mechanical protection system, officially defined as the Transient Data Interface (TDI) module. It serves as the "data center" and "communication gateway" of the entire monitoring rack, responsible for collecting real-time static data and key transient waveform data from various monitoring modules (such as vibration, displacement, and speed modules) inside the rack, and efficiently and reliably transmitting these data to the status monitoring software (such as System 1) of the upper computer through its onboard Ethernet interface, providing engineers with in-depth fault diagnosis and predictive maintenance analysis basis.

The core value of this module lies in its efficient processing capability for transient data. At the moment of start stop or failure of large rotating machinery such as steam turbines and compressors, vibration and displacement data will undergo drastic changes. These high-resolution waveform data are the key basis for judging the health status of the unit, analyzing complex faults such as rotor over criticality and friction. 3500/22M 138607-01V supports a sampling rate of up to 102.4 kHz, which can fully capture these valuable transient information and avoid data loss.

In addition, it also integrates the management function of the Rack Interface Module (RIM) and supports dual communication path redundancy, ensuring the high reliability of the data transmission link and preventing it from becoming a single point of failure for the system. By integrating communication, configuration, and data translation functions, the system architecture has been effectively simplified.

This BENTLY 3500/22M 138607-01V TDI module is widely used in applications that require the highest level of mechanical protection:

Power industry: Vibration and shaft displacement monitoring of steam turbine generator sets and gas turbines.

Petrochemical industry: real-time monitoring and protection of large centrifugal compressors, reciprocating compressors, and critical pump groups.

Metallurgical industry: Fault warning for heavy rotating machinery such as blast furnace blowers and rolling mill main motors.

For engineers responsible for critical unit maintenance, this is the core spare part for upgrading from "passive protection" to "active predictive maintenance", which can greatly reduce the risk of unplanned downtime.

Product model 3500/22M 138607-01V

Product Type Transient Data Interface Module (TDI)

Core functions include high-speed transient data acquisition, rack interface management (RIM), and Ethernet communication

Ethernet interface 10Base-T/100Base TX (adaptive copper cable)

Sampling rate up to 102.4 kHz (supports DC coupled waveform)

Static data recording from 10 minutes before the data cache alarm to 1 minute after the alarm

Configure USB-B front panel interface

The installation position must be installed in slot 1 of the rack (adjacent to the power supply)

Working temperature -30 ° C to+65 ° C

Pressure controllers can be used for neutral or corrosive gas and liquid media. The set value range is adjustable, with an adjustment range of 0.02~42Mpa. The switching difference is not adjustable. The pressure controller includes a wide range and many varieties, including differential pressure controller, explosion-proof pressure switch, explosion-proof differential pressure switch, pressure transmitter, differential pressure transmitter, wind pressure switch, and wind pressure transmitter.

The function of a pressure controller is to detect, display, alarm, and control signal output to ensure the normal operation of the system. It collects and processes data through a high-speed MCU and has built-in precision sensors for compensation. It is a high-precision device that detects pressure and liquid level signals, achieves pressure and liquid level monitoring and control. Widely used in automation systems for measuring gas and liquid pressure in chemical, mechanical, hydrological, electrical, environmental, and other fields. Due to its convenient and flexible adjustment, as well as simple installation, it can replace most situations where liquid level switches are used.

With the continuous development of technology, pressure controllers, as an emerging technological force, have occupied the pressure control market and become a strategic requirement for the development of China's industry. They are not only suitable for industrial petroleum and coal mines, but also begin to appear in modern household appliances. It can be seen that pressure controllers are becoming increasingly important.

Pressure controller is mainly a type of pressure control product, which plays a role in timely controlling pressure and controlling the start and stop status of equipment in industry, agriculture, and modern life. Take the familiar boiler as an example. A boiler is a relatively dangerous energy equipment. Once its pressure is not controlled, the accident rate is very high. The pressure controller plays an irreplaceable role inside. When the boiler pressure reaches the rated value, the pressure controller will control the boiler to stop working in a timely manner. When the pressure returns to the safe pressure value, the boiler will restart working.
