In industrial motion control and test systems, the GE VMIVME-2540 handles quadrature position measurement (up to 1 MHz sin/cos inputs), frequency measurement (0.00116 Hz to 2.5 MHz), and pulse train generation (0.0076 Hz to 2.5 MHz) for shaft encoders, servo feedback, and automated test equipment. Deploying the GE VMIVME-2540 enables autonomous operation after host programming—continuous measurements stream to shared memory without VMEbus overhead, while event-triggered interrupts support real-time response in machine tool, robotics, and crane positioning applications. The GE VMIVME-2540 RS-422 differential interface rejects noise in harsh factory floors.

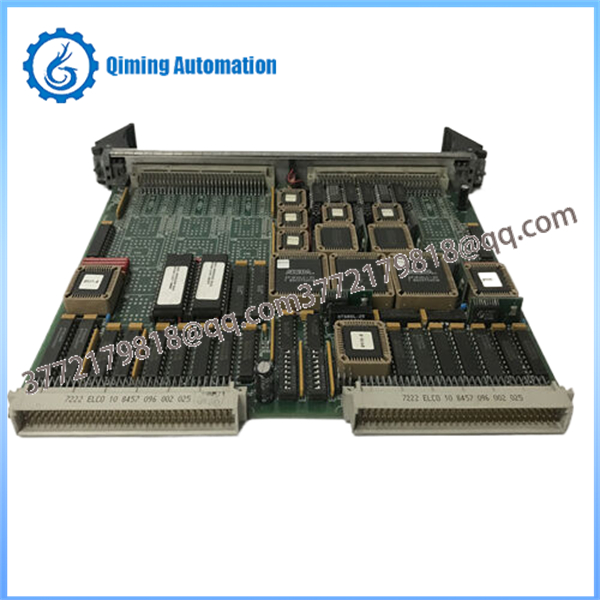

Model VMIVME-2540

Product Type 24-Channel Intelligent Counter/Controller

Processor 68HC000 @ 15 MHz

Channels 24 input/output (clocks, gates, outputs)

Input Frequency Up to 2.5 MHz (event counting)

Position Measurement Quadrature sin/cos up to 1 MHz, 32-bit counters

Output Generation Square wave/pulse 0.0076 Hz to 2.5 MHz

VME Interface A32/A24/D32/D16/D8 slave, 64 KB window

I/O Interface RS-422 differential, TTL compatible

Power +5 VDC @ 1.8 A, +12 VDC @ 150 mA, -12 VDC @ 50 mA

Operating Temp 0°C to 65°C (non-operating -40°C to +85°C)

MTBF >200,000 hours

Chassis preparation

Power down VME chassis; verify slot power budget supports GE VMIVME-2540 requirements.

Module insertion

Install GE VMIVME-2540 in any VME slave slot (J1/P1 + J2/P2 connectors).

Field wiring

Connect encoders, sensors, actuators to GE VMIVME-2540 front panel high-density connectors.

Host programming

Map GE VMIVME-2540 64 KB window and program measurement/control functions via VME host.

Commissioning

Verify continuous measurement streaming and interrupt generation from GE VMIVME-2540.

Use twisted-shielded pairs for GE VMIVME-2540 RS-422 signals to reject EMI.

Configure VME address window to avoid conflicts with other slave modules.

Verify +12 V/-12 V availability for GE VMIVME-2540 differential outputs.

Maintain chassis airflow around GE VMIVME-2540 (derates above 55°C).

Ground P2 connector properly when using GE VMIVME-2540 rear I/O transitions.

Quarterly: Check GE VMIVME-2540 edge connectors for oxidation during access.

Annually: Verify counter accuracy with precision pulse generator.

Monitor GE VMIVME-2540 shared memory integrity via host diagnostics.

Clean front panel connectors on GE VMIVME-2540 during scheduled shutdowns.
