In combined-cycle power plants, the GE IS220UCSAH1A-C processes turbine control algorithms, speed regulation, and protection functions while communicating with field I/O through its high-speed IONet. Deploying the GE IS220UCSAH1A-C in redundant controller racks ensures high availability for critical turbine startup, load control, and emergency shutdown sequences. The GE IS220UCSAH1A-C runs ControlST software on QNX Neutrino OS, providing robust performance in harsh power generation environments with hazardous location certification.

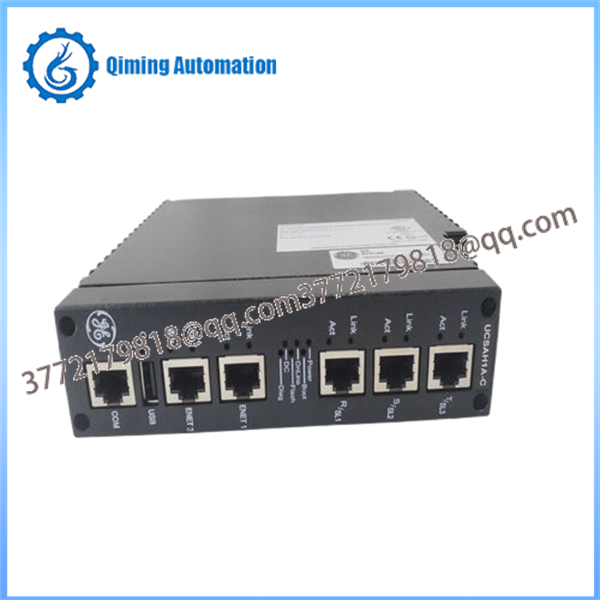

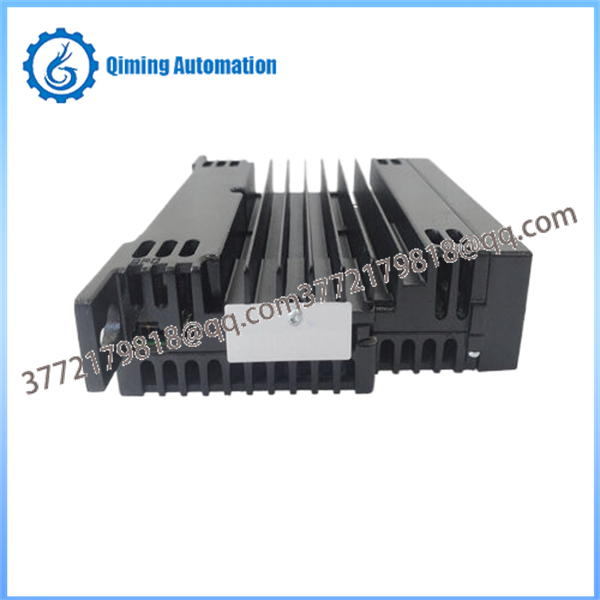

Model IS220UCSAH1A-C

Product Type UCSA Embedded Controller Module (Mark VIe series)

Processor Freescale PowerQUICC II Pro 8349 @ 667 MHz

Software ControlST V04.03.18C, QNX Neutrino OS

Power Supply 18-32 V DC, ~12.5 W consumption

Communication IONet (I/O network), Ethernet

Memory Compact Flash storage, ≥512 MB RAM

Operating Temp 0°C to +65°C (no fan required)

Humidity 5-95% (non-condensing)

Environment NFPA Class 1 Div. 2 hazardous areas

Weight/Dimensions ~2 lbs (0.9 kg), standard VME/rack form factor

Rack preparation

Power down Mark VIe rack and prepare slot for GE IS220UCSAH1A-C controller card.

Module insertion

Insert GE IS220UCSAH1A-C into designated VME slot, ensuring proper alignment with backplane.

Power connection

Connect 24 V DC (18-32 V range) to GE IS220UCSAH1A-C power terminals with fusing.

Network wiring

Connect IONet cables to GE IS220UCSAH1A-C for I/O pack communication; verify termination.

Configuration

Load ControlST application via ToolboxST to GE IS220UCSAH1A-C and test turbine I/O response.

Verify redundant power feeds before powering GE IS220UCSAH1A-C in simplex/duplex setups.

Use ESD wrist strap when handling GE IS220UCSAH1A-C to protect processor circuitry.

Ensure proper rack ventilation since GE IS220UCSAH1A-C requires no local fan.

Ground IONet shields near GE IS220UCSAH1A-C terminals for EMI immunity.

Follow Class 1 Div. 2 spacing rules when installing GE IS220UCSAH1A-C near ignition sources.

Monthly: Check GE IS220UCSAH1A-C status LEDs and ToolboxST diagnostics for faults.

Quarterly: Inspect GE IS220UCSAH1A-C connectors for corrosion or loose contacts.

Annually: Backup GE IS220UCSAH1A-C application code and verify IONet integrity.

Monitor GE IS220UCSAH1A-C operating temperature via HMI during peak loads.

Replace GE IS220UCSAH1A-C Compact Flash after 5 years or error indications.
