The GE IS220PTURH1A serves as the primary trip module responsible for turbine overspeed detection, vibration protection, and emergency shutdown functions. Featuring independent speed sensing and dual Ethernet connectivity, the GE IS220PTURH1A ensures fail-safe operation through hardwired trip outputs and IONet communication redundancy. Its rugged design and SIL-rated architecture make the GE IS220PTURH1A essential for high-reliability power generation applications requiring certified safety functions.

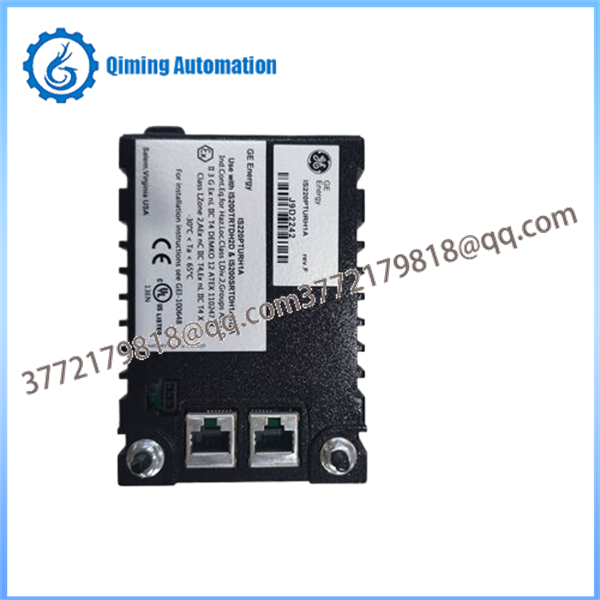

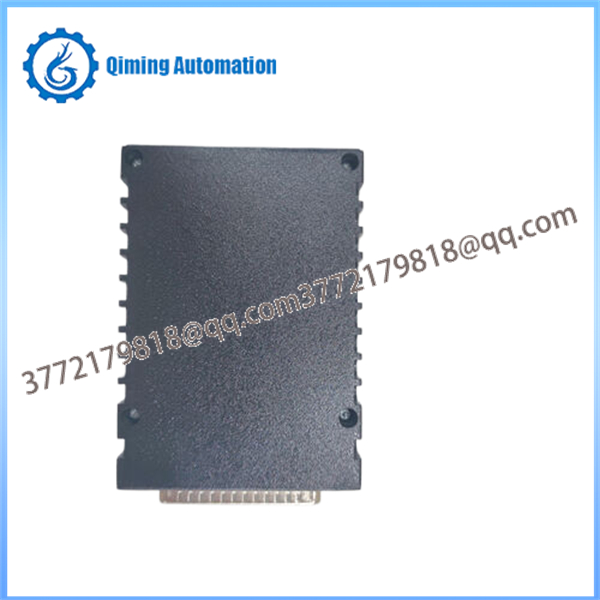

Model GE IS220PTURH1A Primary Turbine Protection Pack

Speed Inputs 2x MPU/proximity sensors Redundant overspeed detection

Ethernet Ports 2x 100MB full-duplex RJ45 IONet primary/backup networks

Power Supply 24 VDC nominal (18-32 V range) Isolated DC/DC conversion

Trip Relays 6 Form-C emergency contacts Hardwired safety shutdown

Output Connector DC-37 / DC-62 pin interface Terminal board connectivity

Operating Temp -40°C to +85°C Harsh turbine environment

Vibration Rating 5g continuous, 10g shock Ruggedized construction

Diagnostics 4x front panel status LEDs OK, LAN A/B, TRIP indication

Safety Rating SIL 3 capable Certified emergency protection

Power down Mark VIe I/O rack before installing GE IS220PTURH1A.

Insert GE IS220PTURH1A into designated protection module slot and secure.

Connect MPU speed sensor cables to GE IS220PTURH1A speed input terminals.

Wire 24 VDC power and emergency trip relay outputs from GE IS220PTURH1A.

Connect dual Ethernet cables to GE IS220PTURH1A primary/backup IONet ports.

Configure overspeed setpoints (typically 110% rated) using ToolboxST software.

Verify GE IS220PTURH1A diagnostic LEDs show healthy status on startup.

Route GE IS220PTURH1A speed sensor cables separately from power wiring.

Use shielded twisted-pair for GE IS220PTURH1A MPU/proximity sensor inputs.

Verify emergency trip wiring polarity before GE IS220PTURH1A energization.

Maintain redundant GE IS220PTURH1A Ethernet paths for network failover.

Check GE IS220PTURH1A speed sensor gap and cable integrity monthly.

Test GE IS220PTURH1A trip relay continuity quarterly with dry contacts.

Monitor GE IS220PTURH1A Ethernet link status during operator rounds.

Verify GE IS220PTURH1A overspeed setpoint calibration annually.

Archive GE IS220PTURH1A diagnostic events monthly via ControlST.
