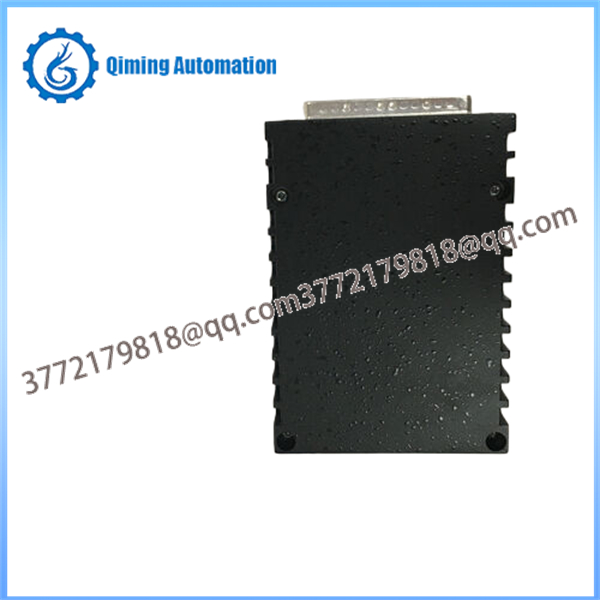

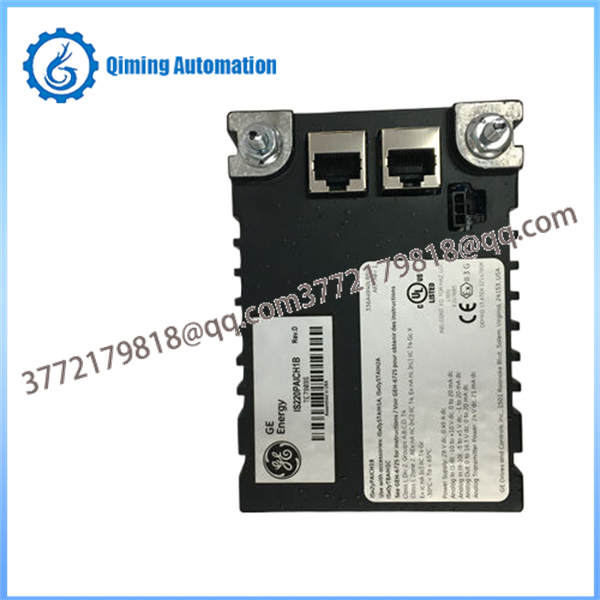

The GE IS220PAICH1B is a high-reliability Analog I/O Pack specifically designed for the GE Speedtronic Mark VIe turbine control system. As a distributed I/O module, the GE IS220PAICH1B provides precise analog signal acquisition and output capabilities, interfacing directly with terminal boards such as IS200TBAIH1C or IS200TBAIH2C. It is widely used for critical measurements including turbine temperatures, pressures, flows, vibration signals, and actuator positioning in gas and steam turbine generator applications.

The GE IS220PAICH1B features 8 analog inputs (configurable for 4-20mA or ±10V) and 4 analog outputs, with 16-bit resolution and high-speed 1ms update rates. Its compact design, built-in diagnostics, and robust communication via IONet make the GE IS220PAICH1B essential for achieving accurate closed-loop control and system monitoring. Whether deployed in simplex or TMR configurations, the GE IS220PAICH1B ensures exceptional signal integrity and seamless integration within the Mark VIe architecture.

Model,GE IS220PAICH1B

Module Type,Analog I/O Pack (PAIC)

Analog Inputs,"8 channels (configurable: 4-20mA, ±10V, 0-10V)"

Analog Outputs,4 channels (0-10V or 4-20mA selectable)

Resolution,16-bit

Update Rate,1 ms

Accuracy,±0.1% full scale typical

Power Supply,"28V DC (from terminal board, typical)"

Communication,"IONet (Ethernet-based, dual redundant ports)"

Operating Temperature,-40°C to +70°C

Humidity,"5% to 95% RH, non-condensing"

Dimensions,Approx. 120 mm × 80 mm × 40 mm

Weight,Approx. 0.45 kg

Protections,"ESD, overvoltage, channel isolation, diagnostics"

Compatibility,GE Speedtronic Mark VIe systems (simplex/TMR)

Operating the GE IS220PAICH1B follows standard GE Mark VIe distributed I/O protocols:

Ensure the control rack and terminal board are powered with stable 28V DC before system startup.

Mount the GE IS220PAICH1B securely on the compatible terminal board and verify both IONet ports are connected.

Initialize the Mark VIe controller and confirm the GE IS220PAICH1B is recognized and healthy in the HMI diagnostic screen.

Load the correct configuration file with proper scaling and calibration settings for the analog channels on the GE IS220PAICH1B.

Monitor real-time analog input values, output commands, and diagnostic status through the operator interface.

During normal turbine operation, the GE IS220PAICH1B continuously acquires signals and drives actuators with high precision.

Respond to any alarms by checking I/O pack diagnostics specific to the GE IS220PAICH1B and perform forced I/O tests when required.

Proper installation of the GE IS220PAICH1B is critical for signal accuracy and system reliability. Always de-energize the control system and apply lockout/tagout procedures before handling. Use ESD-safe wrist straps and grounded workstations when attaching the GE IS220PAICH1B to the terminal board. Align the pack carefully with the connectors and press firmly until fully seated and latched. Connect both IONet Ethernet cables (primary and secondary) using shielded CAT5e or CAT6 cables with proper strain relief. Ensure field wiring on the terminal board is correctly terminated with appropriate shielding and grounding. After installing the GE IS220PAICH1B, perform full I/O loop calibration, channel verification, and functional tests before commissioning the turbine. Only qualified technicians trained on GE Mark VIe systems should install or service the GE IS220PAICH1B.

Routine maintenance helps maintain the high performance and long service life of the GE IS220PAICH1B:

Visually inspect the GE IS220PAICH1B and its connections for dust, loose cables, or signs of overheating during scheduled outages.

Clean the exterior gently with dry compressed air — never use liquids or solvents on the module.

Review Mark VIe HMI diagnostic logs daily for I/O health, channel status, temperature, and any alarms related to the GE IS220PAICH1B.

Verify IONet communication links are active and error-free on both ports.

Monitor power supply voltage to the pack and confirm it remains within the acceptable range.

Check calibration values periodically and re-calibrate if drift is detected.

Record any anomalies and schedule professional inspection or firmware updates annually to sustain the precision of the GE IS220PAICH1B.
