The GEIS215UCCCM04A is a high-performance Compact PCI (CPCI) Controller Card (also known as VME Controller Card) designed for the GE Speedtronic Mark VIe turbine control system. As the central processing unit of the Mark VIe control rack, the GE IS215UCCCM04A serves as the main processor module responsible for executing control algorithms, real-time data processing, communication with I/O packs via IONet, and overall system supervision in gas and steam turbine generator applications.

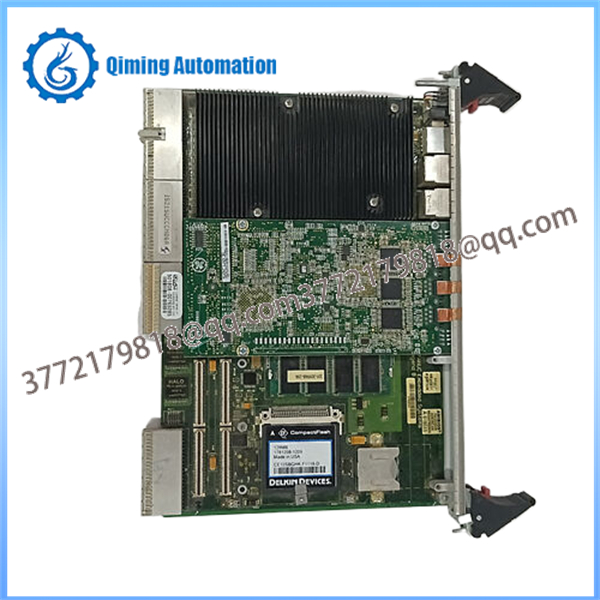

The GE IS215UCCCM04A features a robust architecture that includes an IS215UCCC H4 base board combined with 128 MB flash memory (via SD card), 256 MB DRAM, and an IS200EPMC daughter board. With multiple Ethernet ports and high-speed processing capabilities, the GE IS215UCCCM04A ensures reliable, deterministic control and seamless integration within the Mark VIe architecture. Its compact 3U design and industrial-grade reliability make the GE IS215UCCCM04A essential for critical power generation environments where uptime and precise turbine control are paramount. Whether used as a replacement or in new installations, the GE IS215UCCCM04A delivers exceptional performance and system stability.

Model,GEIS215UCCCM04A

Module Type,Compact PCI (CPCI) / VME Controller Card (Mark VIe)

Processor,Pentium M or equivalent high-performance processor (approx. 1.6 GHz)

Memory,256 MB DRAM + 128 MB Flash (SD card)

Ethernet Ports,"Multiple (typically 2–6 ports, 10/100/1000BaseTX)"

Power Supply,"+5V DC (4.5A typical, 6.75A max), +3.3V DC (1.5A typical), +12V DC (50mA max)"

Power Consumption,Approx. 25–35W (typical)

Communication,"IONet, Ethernet, backplane VME/CPCI interface"

Operating Temperature,-20°C to +60°C (industrial range)

Humidity,"5% to 95% RH, non-condensing"

Dimensions,3U Compact PCI form factor

Weight,Approx. 1.0–1.5 kg

Mounting,VME/CPCI rack slot

Protections,"ESD, overvoltage, watchdog timer"

Compatibility,GE Speedtronic Mark VIe systems

Operating the GE IS215UCCCM04A follows standard GE Mark VIe controller protocols:

Ensure stable power supply to the Mark VIe control rack before system energization.

Insert the GE IS215UCCCM04A into the designated CPCI/VME slot and verify proper seating of all connectors.

Initialize the Mark VIe controller and confirm the GE IS215UCCCM04A boots successfully and is recognized as the primary controller on the HMI diagnostic screen.

Load the application-specific control configuration and firmware for the GE IS215UCCCM04A.

Monitor real-time processor status, CPU load, memory usage, Ethernet communication, and system health parameters through the operator interface.

During normal turbine operation, the GE IS215UCCCM04A executes control logic, processes I/O data, and coordinates with distributed I/O packs.

In case of alarms, use built-in diagnostics to troubleshoot issues related to the GE IS215UCCCM04A and apply redundant controller strategies if configured in TMR mode.

Safe and correct installation of the GE IS215UCCCM04A is critical for system reliability. Always de-energize the entire control cabinet and follow lockout/tagout procedures before handling. Use ESD-safe wrist straps and grounded workstations when inserting or removing the GE IS215UCCCM04A. Carefully align the board with the CPCI/VME slot guides and press firmly until fully seated; ensure the SD card (flash memory) is properly installed in its dedicated slot. Connect all Ethernet cables and IONet links according to the system topology. After installing the GE IS215UCCCM04A, power up the rack gradually, perform POST (Power-On Self-Test), verify firmware version, and run full system diagnostics including communication tests with I/O packs before commissioning the turbine. Only qualified technicians trained on GE Mark VIe systems should install, configure, or service the GE IS215UCCCM04A.

Routine maintenance ensures long-term reliability and optimal performance of the GE IS215UCCCM04A:

Visually inspect the GE IS215UCCCM04A for dust accumulation, loose cables, or signs of overheating during planned outages.

Clean the board and rack vents gently with dry compressed air — never use liquids or solvents.

Review Mark VIe HMI diagnostic logs daily for processor health, CPU temperature, memory status, Ethernet link status, and any alarms specific to the GE IS215UCCCM04A.

Monitor power supply voltages (+5V, +3.3V) and confirm they remain within tolerance.

Verify Ethernet port activity and IONet communication integrity.

Check the SD card (flash memory) seating and backup configuration files periodically.

Record any anomalies and schedule professional firmware updates, diagnostics, or board replacement as recommended by GE to sustain the high availability of the GE IS215UCCCM04A.
